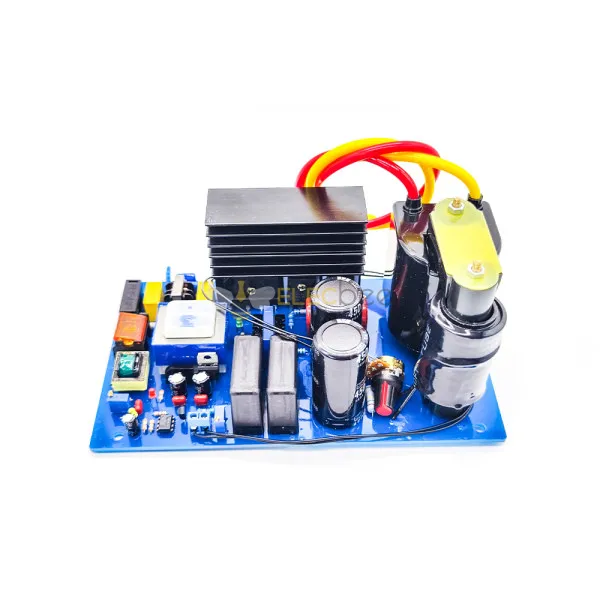

Elecbee 300W AC220V Ozone Generator Power Supply Adjustable with Overload Protection Drive Circuit Board

SKU: EB0045100

Favorites

Key Features

Power supply size: 200*120*100MM (length * width * height).

Working voltage: AC220V/50HZ

Power consumption: 5~300W (adjustable)

High voltage output: 6KV.

High voltage frequency: 4~16KHZ

Composition structure: first-class electronic original + full moisture-proof film.

Main feature:

1. IGBT drive, automatic/manual bandwidth,

2. Slow start at boot, (limit surge current)

3. Power supply over-voltage protection.

4. Power converter overload protection, output short circuit, open circuit protection, light warning.

5. Circuit anti-interference, moisture-proof and anti-corrosion design

High voltage line length: more than 40CM

Installation method:

1. The four fixed holes for the power supply are installed in an insulated place, and the distance between the entire power supply and the metal chassis is greater than 3CM.

2. The two high-voltage lines are not divided into positive and negative levels, and can be connected to the two high-voltage terminals of the ozone load according to the characteristics of the ozone load. The two high-voltage lines cannot be combined together, cannot cross, and cannot be entangled or connected with other lines. After the ozone load, if the high-voltage line is too long, it needs to be cut as short as possible and connected to ensure its safety and installation aesthetics, so that the failure rate is greatly reduced.

3. The chassis where the power supply is installed should be well ventilated to allow convective air circulation.

4. Electronic instruments and other originals should be far away from the high-voltage power supply by more than 15CM (high voltage will interfere with normal data such as the instrument).

Usage: Single group of any ozone generator load below 30G/H. Adjust the internal adjustment on the power supply according to different loads to achieve perfect matching.

The 300W ozone high-voltage power supply can be matched with any ozone tube/ozone chip below 30G/H.

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

AC220V

Show Similar Products >

Description

1 x Power supply board
