Elecbee 315MHz 12V Motor Forward Reverse Controller Wireless Remote Control Switch With 3 Button Transmitter

SKU: EB0042170

Favorites

Key Features

1. Working voltage: DC12V

2. Quiescent current: ≤8mA single working current ≤40mA, two working current (self-locking) ≤80mA

3. Working temperature: -10°C to +60°C

4. Receive sensitivity: ≥-105dBm

5. Operating frequency: 315MHz

6. Output voltage: AC, DC optional

7. Output current: ≤10A

8. Size: 72 x 52 x 26mm

Output method:

A. Non-locking - the default working mode, the work switching jumps and does not insert;

B. Self-locking - connect the 1 and 2 positions with a shorting cap

C. Interlocking - connect 2 and 3 positions with a shorting cap

Learning/clearing methods and steps:

1. Press the learning button, the indicator light is off. Press any button in the remote control within 6 seconds, the indicator light flashes four times and then lights up continuously, indicating that the learning is successful;

2. Can learn more than 20 different address codes of the 2262 chip, 1527 chip and other wireless remote control of the same frequency;

3. Clear: Press and hold the learning button about 8 seconds, the indicator light from off to long light, indicating that all the stored information has been successfully cleared.

Remote control parameters:

Working voltage: 1pc L1028 12V 23A Alkaline battery

Working current: ≤15mA

Quiescent current: 0mA

Operating frequency: 315MHz

Chip Type: Fixed Code (2260) Learning Code Ev1527

Oscillation resistance: according to customer requirements (commonly used 4.7)

Modulation method: ASK amplitude modulation

Size: 56.36 x 31.58 x 11.03mm

Button: 3 button

Remote control distance: 100m (in an open environment) (When there is an obstacle or when there is interference, the distance is shortened, please refer to the actual distance)

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi

Wi‑Fi Standard

802.11B/G/N

Model

DESCRIPTIONIMAGE0

Show Similar Products >

Description

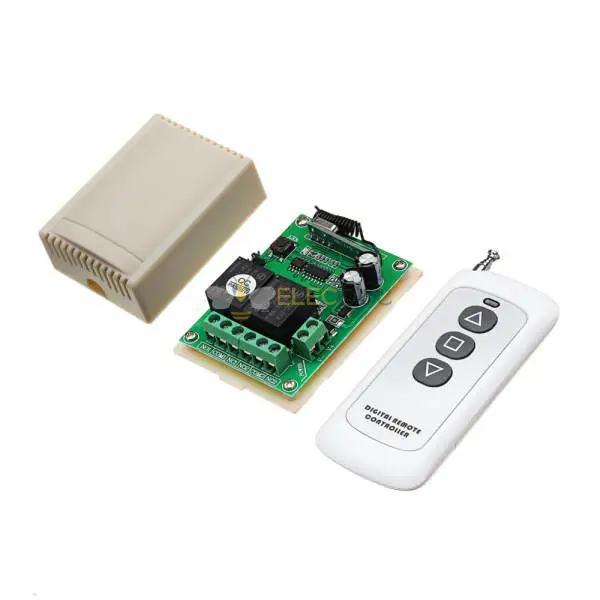

1 x Receiver module with case

1 x Transmitter with battery

315MHz-12V-Motor-Forward-Reverse-Controller-Wireless-Remote-Control-Switch-With-3-Button-Transmitter-1366521
