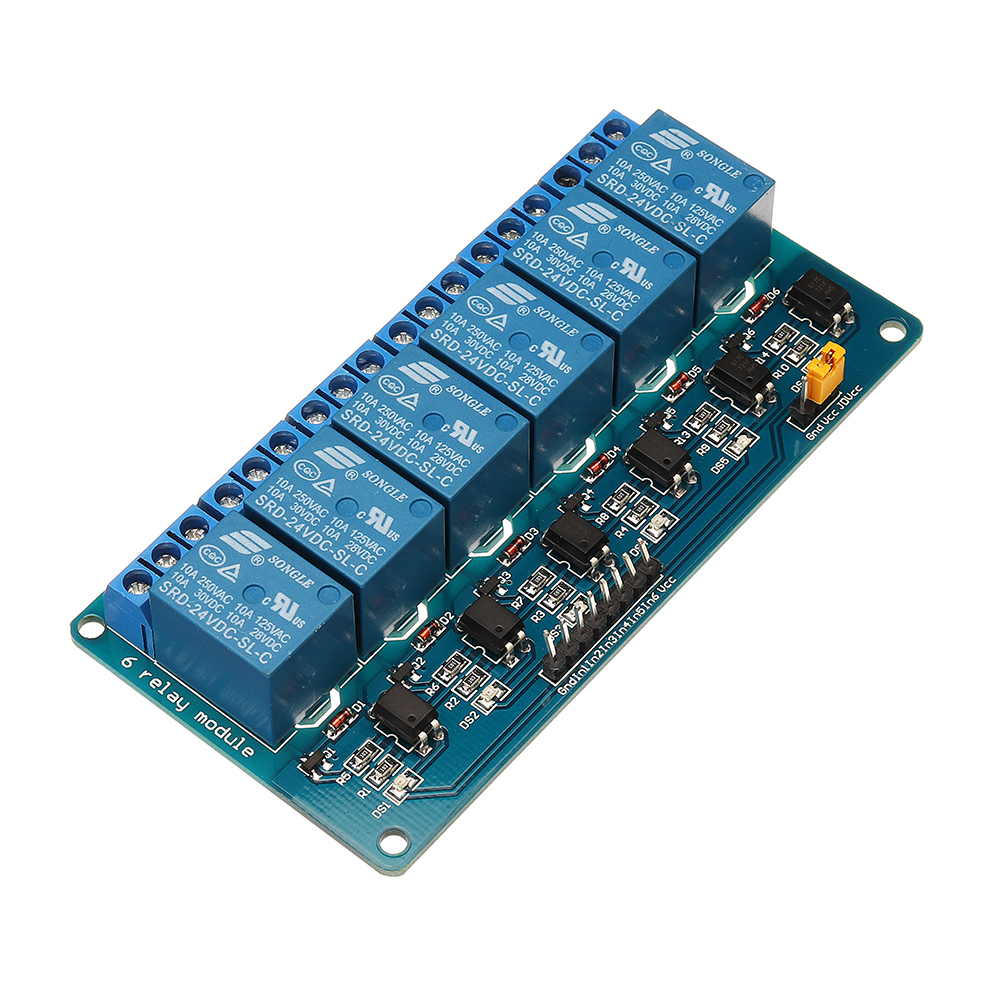

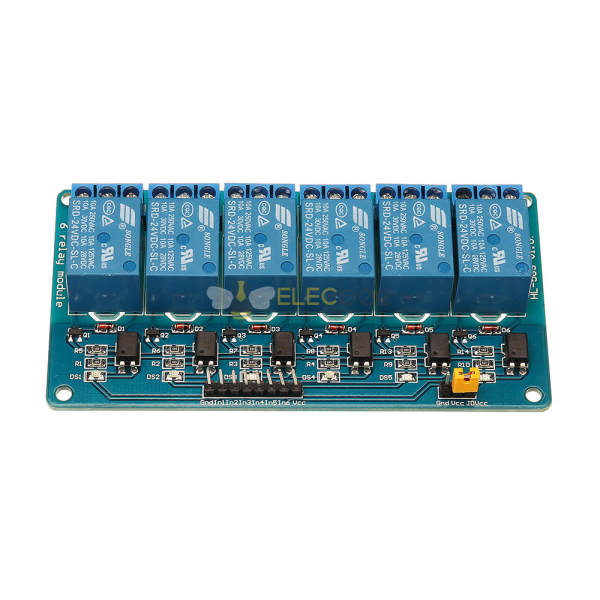

Elecbee 6 Channel 24V Relay Module Low Level Trigger With Optocoupler Isolation for Arduino

SKU: EB0046730

Favorites

Key Features

Specifications

Show Similar Products >

Description

Description:

Maximum load: AC 250V/10A, DC 30V/10A.

The chip optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.

Working voltage is 24V.

Each channel of the module can be set up by high jumper or low level trigger.

Fault tolerant design, even if the control line is broken, the relay will not act.

Power indicator (green), 6 relay status indicator (red).

The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient.

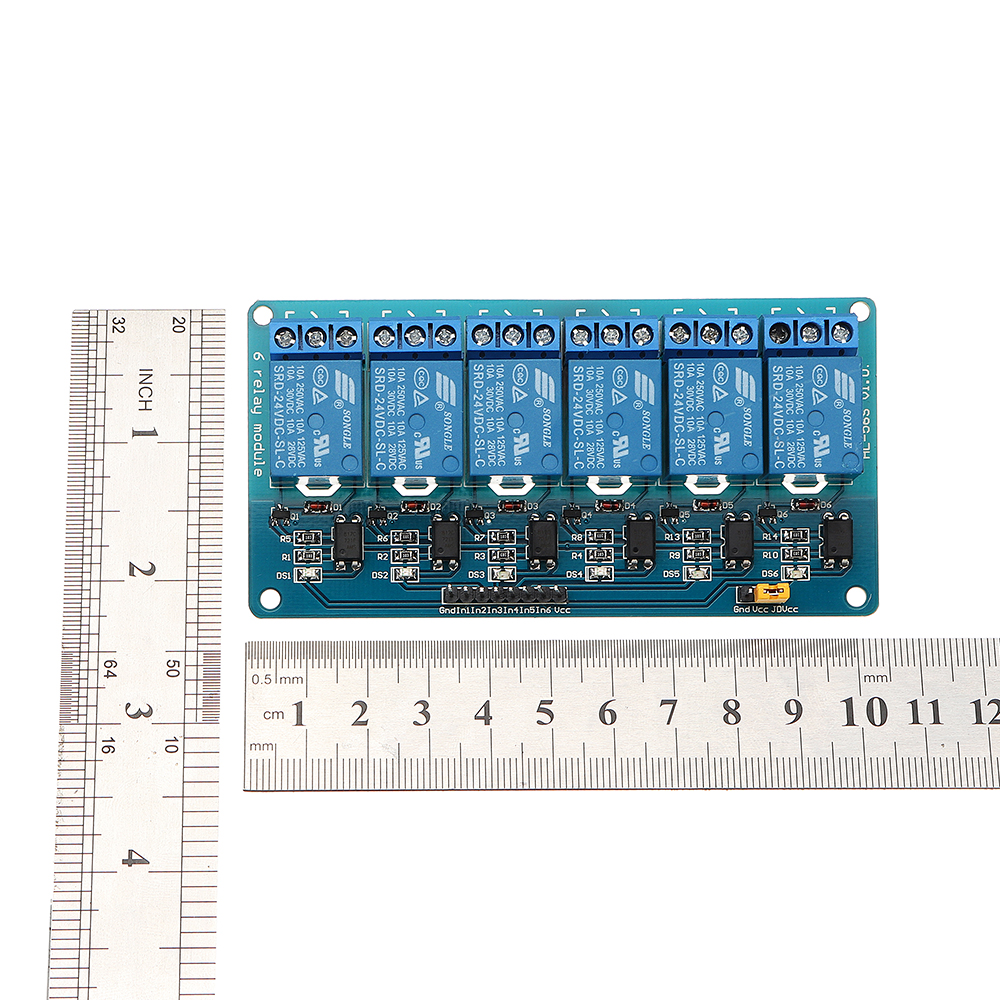

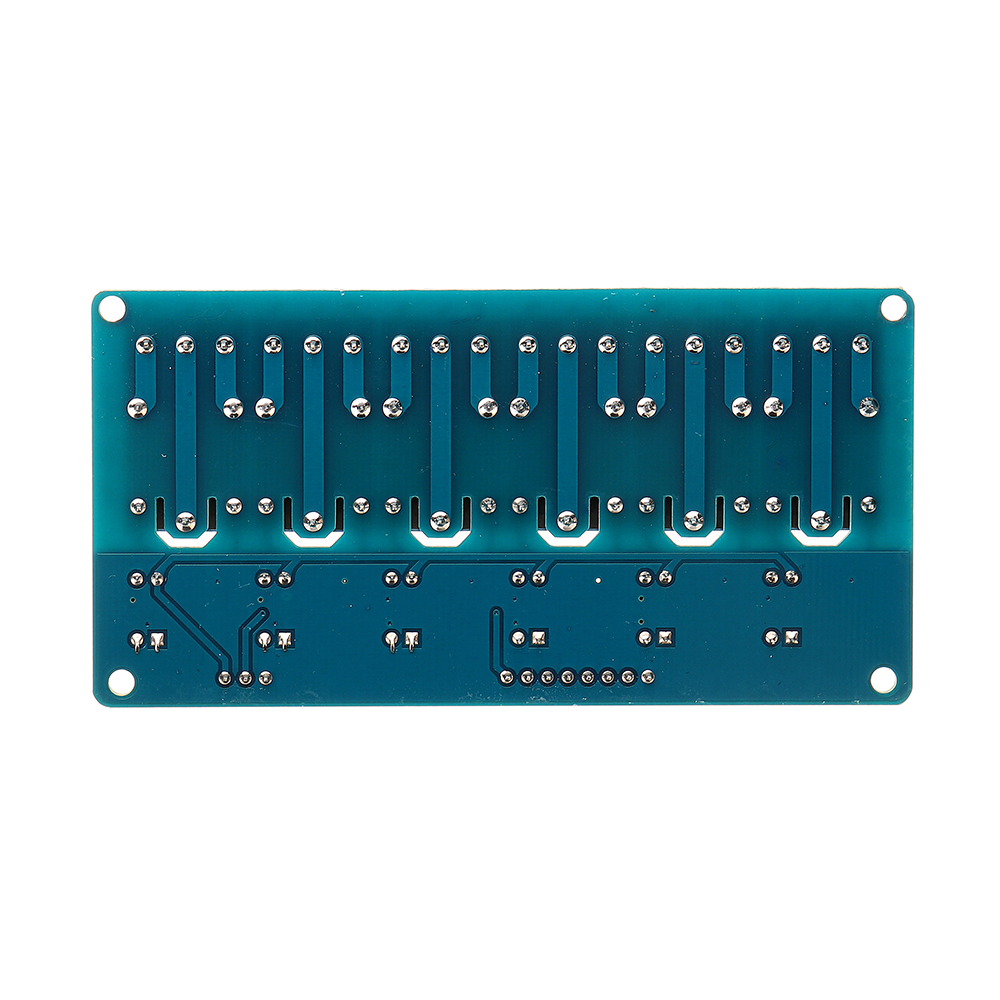

There are 4 fixed bolt holes, holes 3.1mm, spacing 67mm x 44.5mm.

Module interface:

1. DC+: Connect the power positive pole

2. DC-: Connect the power negative pole.

3. IN1-IN6: According to the setting of each way, the corresponding relay-operating can be controlled by high or low level.

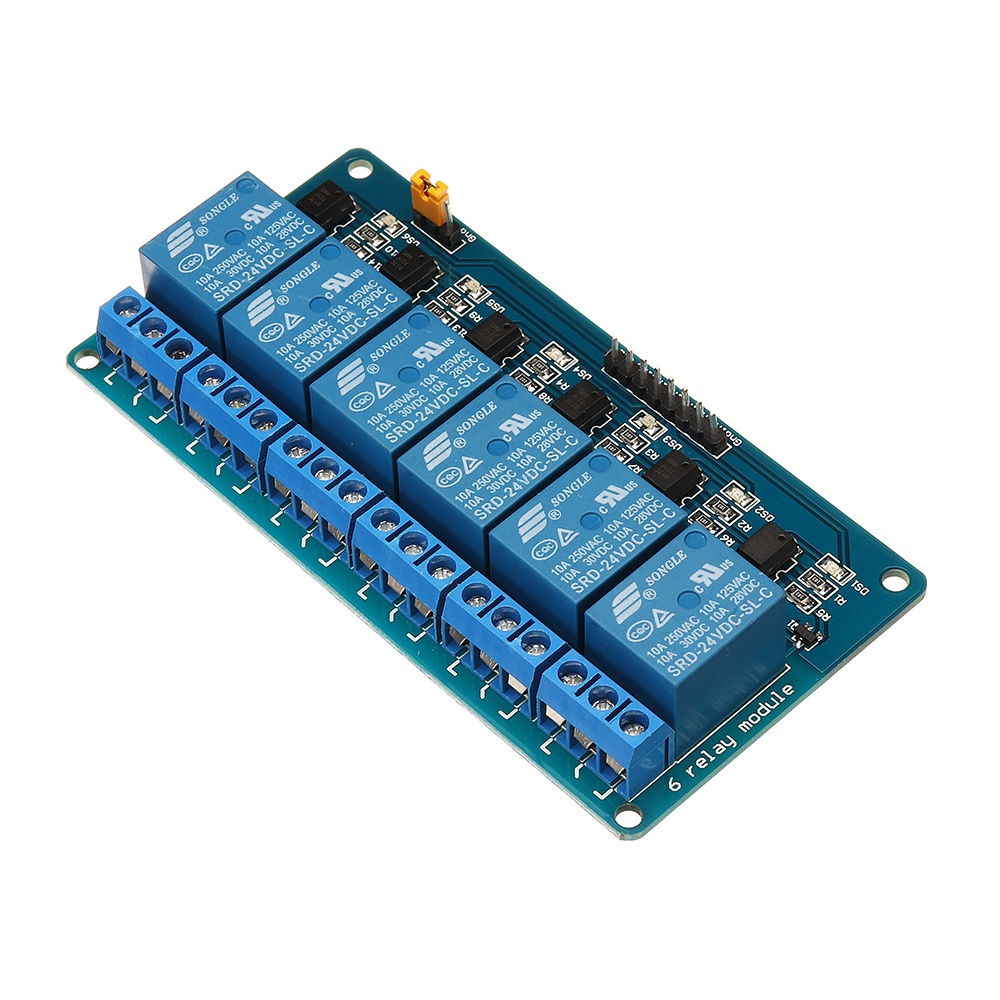

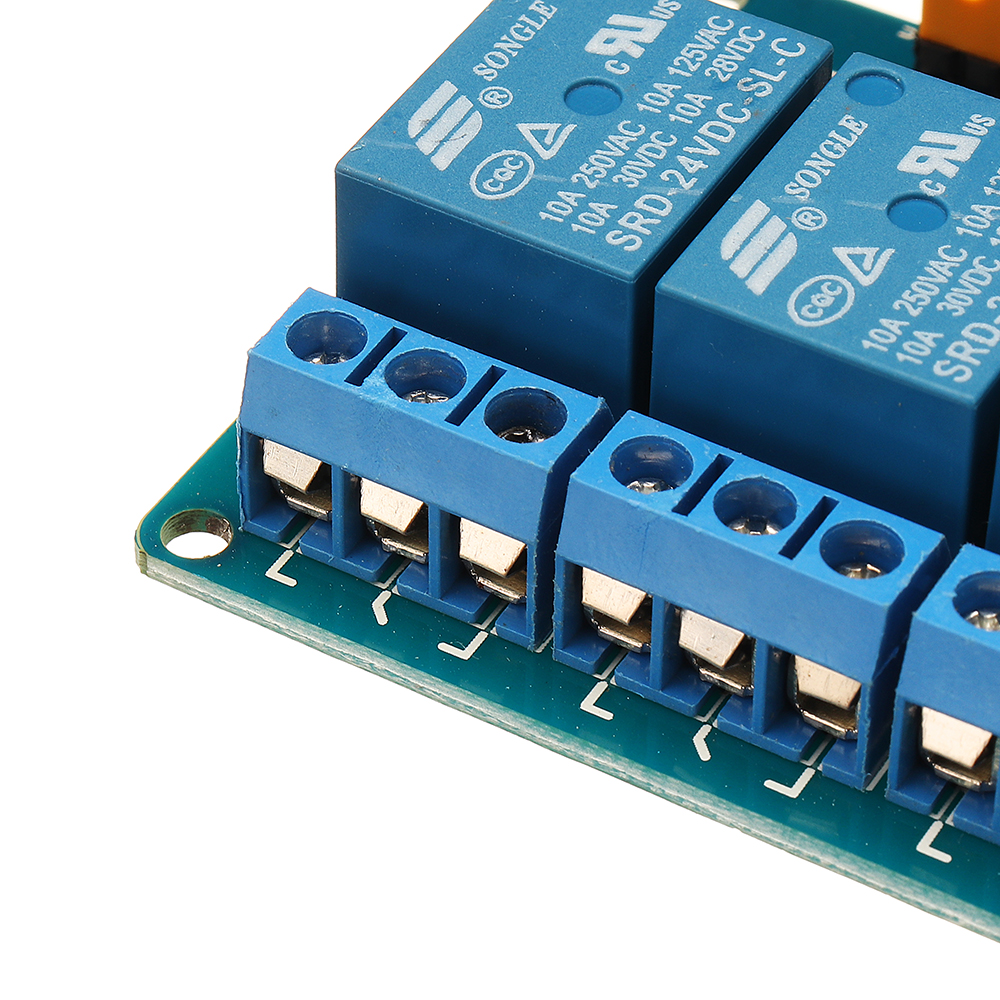

Relay output: there is a 18 wire interface, all interfaces can be directly connected to lead to facilitate user use.

1. NO1--NO6: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM.

2. COM1--COM6: Relay common interface

3. NC1--NC6: Relay normal close, short connected with COM before pulling inand suspended after pulling in.

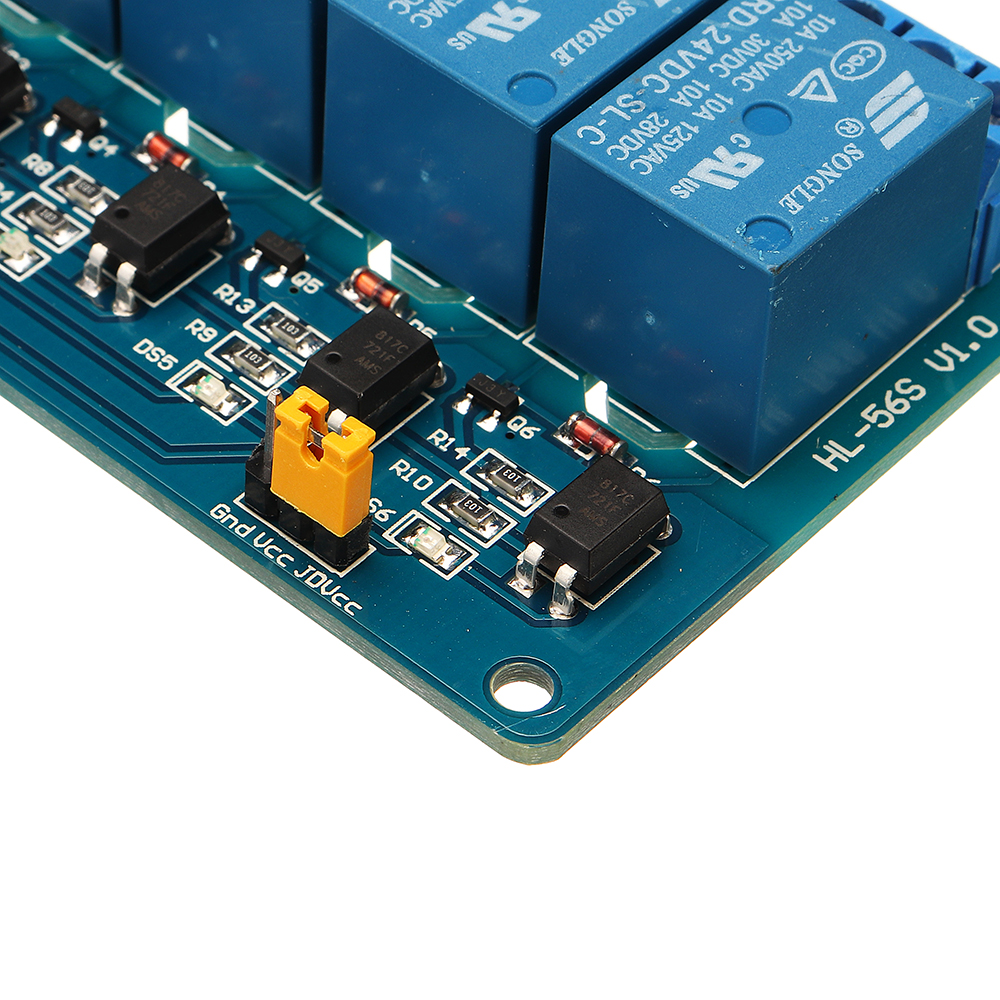

High and low level trigger option:

1. S1-S6 is the high level trigger selection of relay 1 Channel - 6 Channel.

2. When COM is short connected with LOW, the corresponding relay is LOW level trigger, while when COM is short connected with high end is high level trigger.

1 x 6 Channel 24V Relay Module
