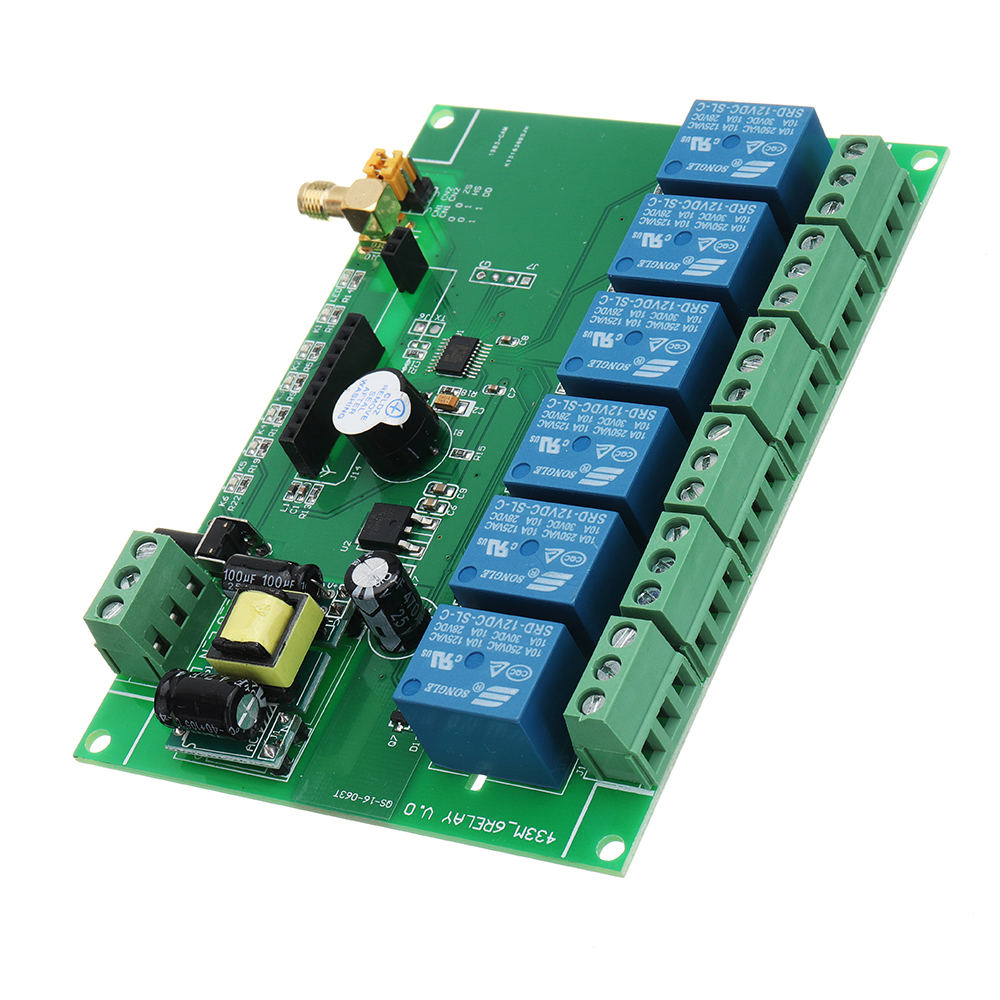

Elecbee 6 Channel DIY Receiver Relay Module Board With Wireless RF Remote Control Switch 110V-240V AC

SKU: EB0047753
Favorites
Key Features

xa0
Jog, self-locking and interlock, three modes can be switched at will
The six-channel multi-function RF receiver controller sends an open signal and a close signal 6 relay.
Applications include smart homes, electronic doors, windows, lifting equipment, switches, lifts, industrial controls, security and more.
High stability and low power consumption.
Easy to use, just learn the code of the remote control and the receiver controller.
xa0
Specification:
xa0
Operating Voltage: 110-240V (input port) (L connection positive and negative G N connection, connect GND)
Working Current: about 30mA × 6 (relay closed state)
Quiescent Current: about 4max 6 (relay open state)
Maximum Current: 10A
Working Mode: instantaneous, self-locking, interlock
Bl1u-ray: (relay switch indicator, displayed separately on each road)
Red light: (signal receiving light)
Output Mode: mainly used as a switch
Receiving Distance: about 50-1000 meters
Maximum Power: 2500w x 6

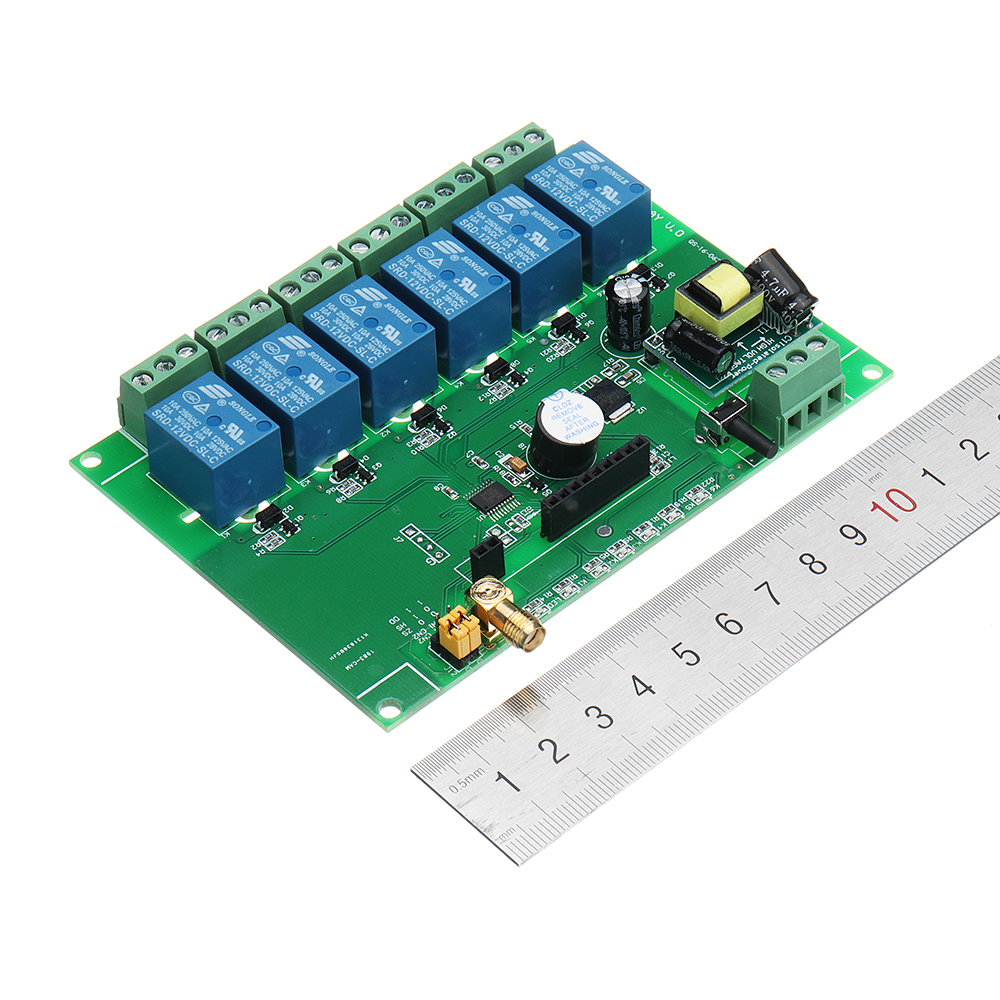

Size: 8.5 x 12 cm

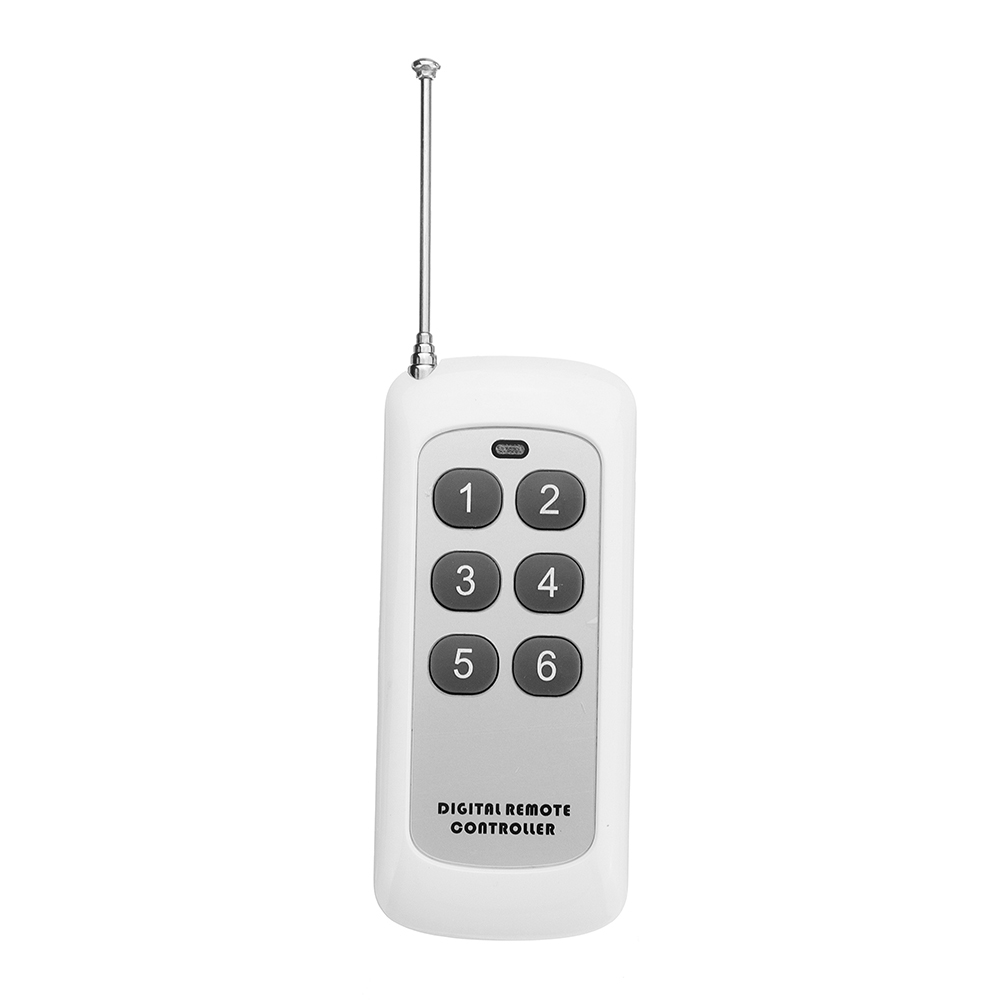

Remote Control Size: about 4 x 9 cm
Weight: 171g
xa0
Instructions:
xa0
Before using, you need to learn the code:
xa0
Short press and hold the learning button on the module for 2 seconds, the learning indicator LED lights up, indicating that the learning state has been entered; release the learning button, press the remote control No. 2 button to indicate that the LED flashes 4 times to indicate successful learning and exit the learning mode.
xa0
Clearing Method:
Press and hold the learning button on the module, the indicator LED will be on constantly. Press and hold for about 8 seconds, the indicator LED will go out, indicating that the code has been cleared successfully.
xa0
Remote control 1, 2, 3, 4, 5, 6 correspond to K1, K2, K3, K4, K5, K6
CN1, CN2 are used to adjust the self-locking, interlock, and jog modes.
CN1, CN2 two jumper caps, G is grounding, V is connected to power supply
CN1 CN2
G 0 G Self-locking mode---Press the remote control relay to turn on, then press the relay off
G 0 V interlock mode---press the remote control corresponding circuit relay to open, other roads are completely closed
V 0 V Jog Mode---Press the remote control relay to turn on, after 2 seconds, the relay is disconnected

Show More
Attribute
Value
Model
DESCRIPTIONIMAGE0
Description

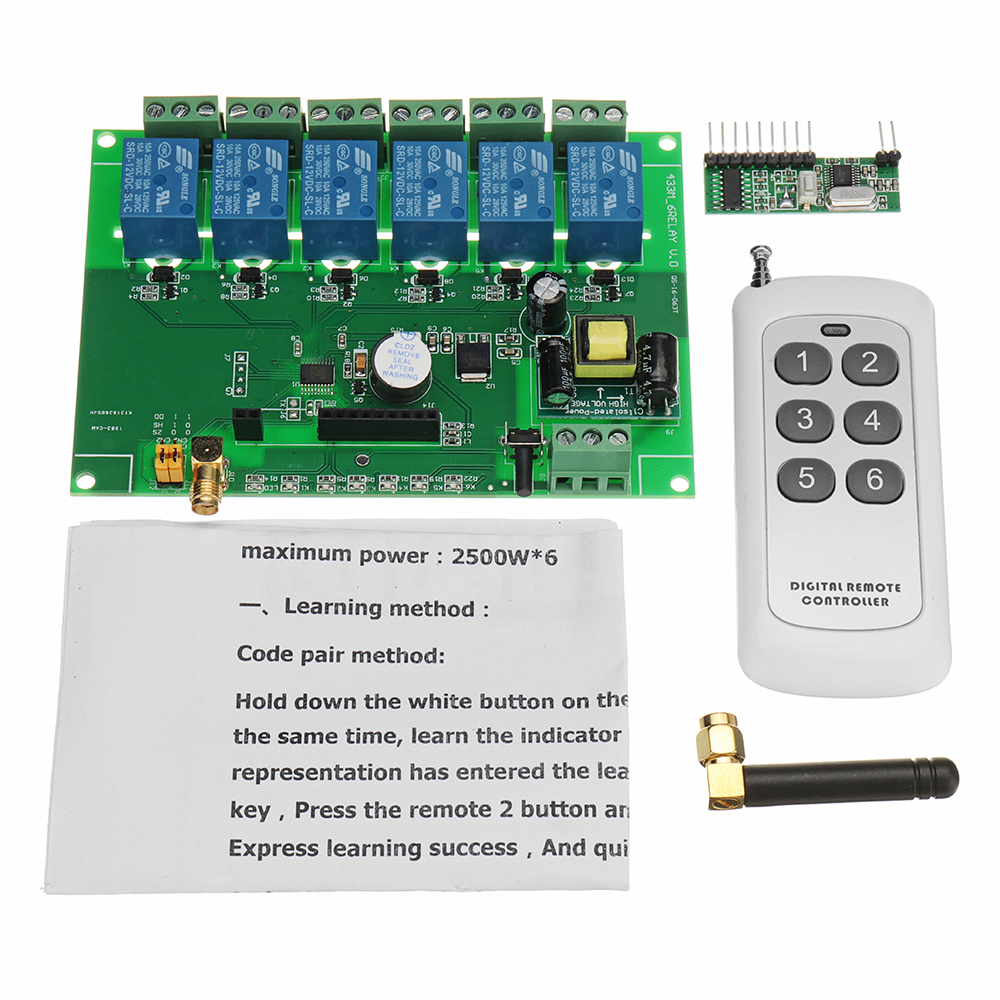

1 x Receiver Relay Module
