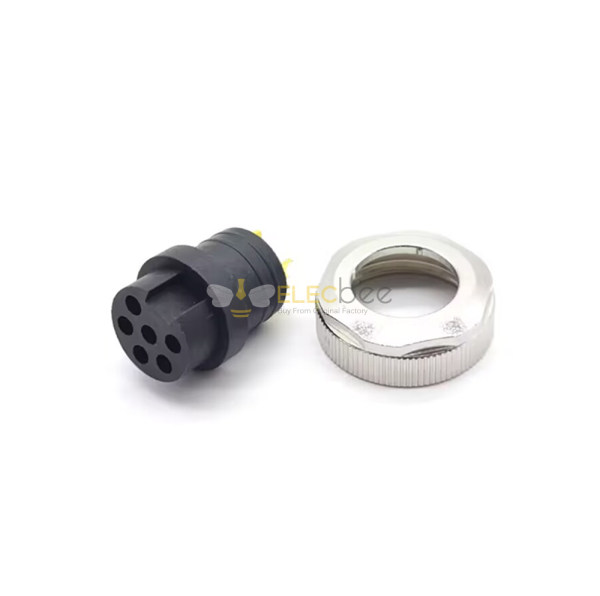

Elecbee 7/8 Connector 6 pin Female Over molded Solder For Cable UnShielded Straight

SKU: EB-400-8009
Favorites
Key Features

Features:

  • TAG:6pin,Female,Straight,Over molded Solder For Cable,7/8 Connector,UnShielded
  • high-class material ensuring a long lifetime and exceptional operational reliability;
  • a wide range of versions offers flexible connection solutions;
  • internationally standardized interface for global usage;
  • 7/8" Series feature very high mechanical and electrical durability;

Main Applications

  • Machine building
  • Factory automation and fieldbus module
  • Material handling
  • Automotive

Electrical Characteristics

  • Voltage withstand:230VAC/DC |600 VAC/DC
  • Rated Voltage: 600V
  • Rated Impulse Voltage: 2500V
  • Rated Current: 12 A
  • Volume Resistivity: ≤ 10 mΩ

Mechanical Characteristics

  • Tightening torque: 1.5 Nm
  • Mechanical Operation: > 100 Mating cycles
  • Pollution Degree: 3

Mechanical Characteristics

  • Ambient Temperature:-40℃to+90℃
  • Degree of Protection: IP67

Material

  • Material of Contact:xa0
  • Contact Plating: Goldxa0

Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Panel Mount
Termination
Solder Cup
Contact Type
Female Pin
Shell Finish
-
Number of Positions
3 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated)
Rated Current
13A
Rated Voltage
300V
Connector Series
7/8"
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
TPU
Insulation Color
Black
Wire Gauge
18AWG
