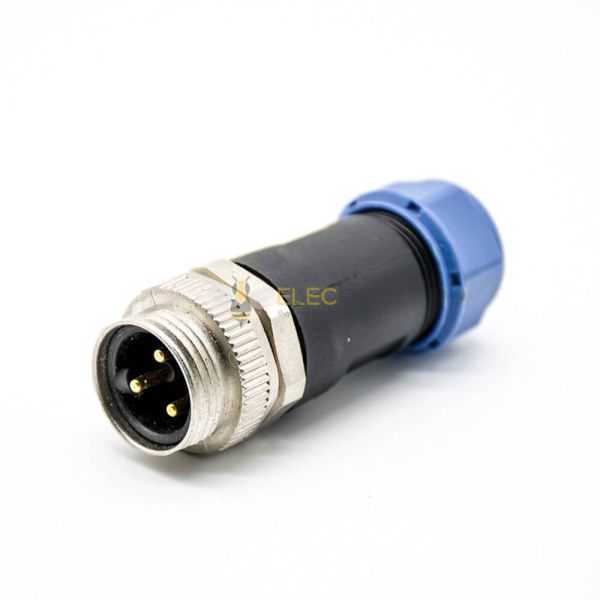

Elecbee 7/8" Series Connector 3 pin Male Straight Site-Assembly Solder For Cable UnShielded

SKU: EB-400-8006

Favorites

Key Features

Features:

TAG:3pin,Male,Straight,for Cable,Solder Type,7/8 Connector,Non-Shield, Site-Assembly
high-class material ensuring a long lifetime and exceptional operational reliability;
a wide range of versions offers flexible connection solutions;
internationally standardized interface for global usage;
7/8" Series feature very high mechanical and electrical durability;

Main Applications

Machine building
Factory automation and fieldbus module
Material handling
Automotive

Electrical Characteristics

Voltage withstand：230VAC/DC |600 VAC/DC
Rated Voltage: 600V
Rated Impulse Voltage: 2500V
Rated Current: 12 A
Volume Resistivity: ≤ 10 mΩ

Mechanical Characteristics

Tightening torque: 1.5 Nm
Mechanical Operation: > 100 Mating cycles
Pollution Degree: 3

Mechanical Characteristics

Ambient Temperature：-40℃to+90℃
Degree of Protection: IP67

Material

Material of Contact:xa0
Contact Plating: Goldxa0
