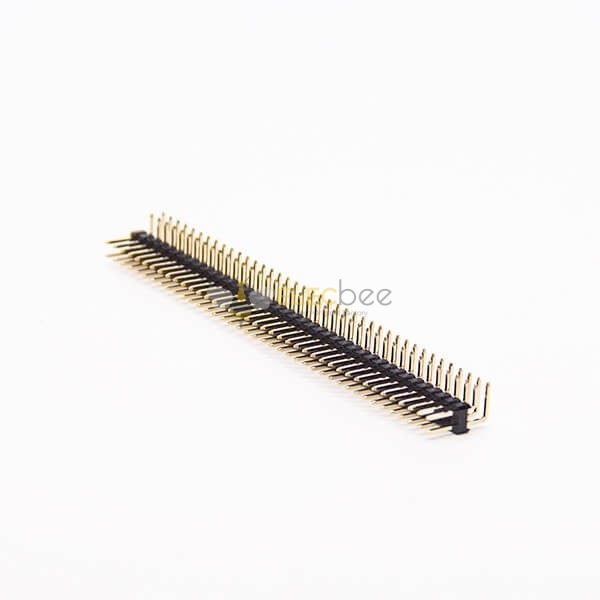

Elecbee 90 Degree Pin Header 2 Row 80 Pin 2.54mm Gap Through Hole

SKU: EB-609-0031
Favorites
Key Features

Features:

  • Pin Header Connector,Male/Plug,Right Angled/90°,80pin,2.54mm,DIP,Singlexa0 Row,L=11.5mm
  • Normally associated with ribbon cable connectors, or worked as recipients for jumpers
  • consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
Show More
Attribute
Value
Connector Type
Male
Number of Rows
2
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male Pin
Number of Positions
80 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Contact Finish
Gold Plated
Insulating Materials
PPA
Insulation Color
Black
Pitch
2.54mm
