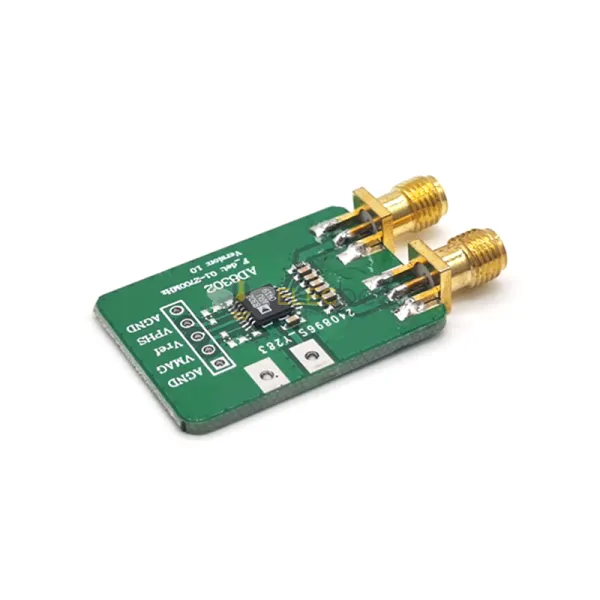

Elecbee AD8302 Wideband Amplitude Phase Detection Impedance Analysis Module Amplifier Filter Mixer Loss and Phase Measurement

SKU: EB0043865

Favorites

Key Features

Single chip silicon bipolar device, amplitude / phase measurement

The AD8302 is a fully integrated RF IC that measures the amplitude and phase between two independent input signals. The device operates from low frequencies to 2.7 GHz.

The AD8302 contains two precision-matched wideband log amps, a wideband linear multiplier/phase detector, a 1.8V precision voltage reference, and an analog output proportional operation circuit.

The input signal range is -60 dBm to 0dBm (reference impedance 50Ω) with a corresponding dynamic range of 60dB.

The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB; a phase measurement range of 0 to 180° with a slope of 10mV/degree.

Note: Please refer to application note AN-691 for module low frequency detection. The AD8302 is available in a 14-pin TSSOP package and operates over a temperature range of -40°C to 85°C.

xa0

Module application:

xa0

1. Measurement of insertion loss and phase of an amplifier, filter or mixer

2. Measure the vector reflection coefficient of any load

3. Impedance analysis

Support cable:

BNC male to SMA male

SMA male to SMA male

Frequency Hz	Signal source RMS@50 ohm		Source phase (degrees)		Output voltage V
Frequency Hz	CH1	CH2	CH1	CH2	VM	VP
500K	0.2V	0.2V	0	90	0.908V	0.907V
500K	0.1V	0.2V	0	90	0.724V	0.906V
500K	0.2V	0.1V	0	90	1.093V	0.908V
500K	0.2V	0.2V	0	180	0.908V	0.032V
500K	0.2V	0.1V	0	180	1.094V	0.023V
500K	0.1V	0.2V	0	180	0.725V	0.022V
500K	0.2Vxa0/	0.2V	0	-90	0.908V	0.915V
500K	0.1V	0.2V	0	-90	0.725V	0.914V
500K	0.2Vxa0/	0.1V	0	-90	1.093V	0.915V
500K	0.2V	0.2V	0	-180	0.909V	0.032V
500K	0.2Vxa0/	0.1V	0	-180	1.093V	0.022V
500K	0.1V	0.2V	0	-180	0.724V	0.021V

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Cellular

Model

AD8302

Show Similar Products >

Description

1 x AD8302 module
