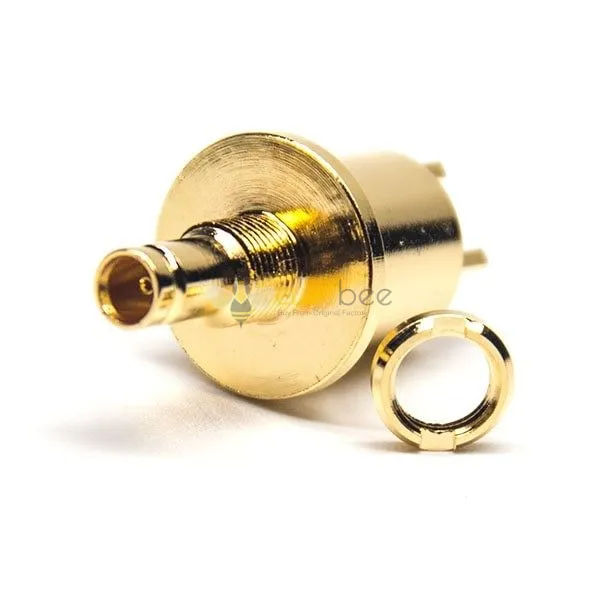

Elecbee DIN Type Connector Female Straight Glod Plating Bulkhead for PCB Mount

SKU: EB-010-0024
Favorites
Key Features

Features:

  • DIN1.0/2.3,Female/Jack,Straight/180°,Through Hole,PCB Mount,Solder,Coaxial Cable,Glod Plating,75Ohm
  • Compact design is ideal for limit space application and save space in delivery;
  • Push/pull mating is excellent for quick installation without vibrate loose;
  • Great performance with frequency up to 10GHz support high data rates.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of DIN1.0/2.3xa0Connectors:

  • Aerospace and Defense:xa0Communication systems
  • Telecommunications:xa0CATV, Central office, High-density Radios, Base station, Switching equipment
  • Networking: Video Equipment, Radio boards
Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
10 GHz
Connector Series
DIN 1.0/2.3
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
