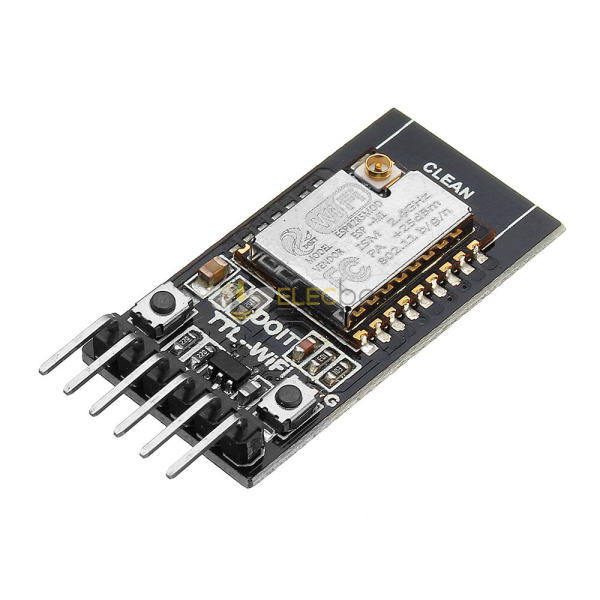

Elecbee DT-06 Wireless WiFi Serial Transmissions Module TTL to WiFi Compatible HC-06 bluetooth External Antenna Version Optional Without Antenna

SKU: EB0047409-1578

Favorites

Key Features

xa0

Built-in industry-class firmware V3.0, reliable and stable, WEB interface configuration

Based on ESP-M1 high performance WiFi module, the overall size is 34 mm *17 mm *4 mm

Supply voltage: 4.5V ~ 6.0V, TTL voltage: 3.3V (compatible with 5.0V)

Leading pins: STATE, TXD, RXD, EN

Average current: 80 mA; 170 mA for WiFi data transmission; 20 mA for deep sleep mode

Support serial AT instruction

Support reprogrammable, OTA firmware upgrade

Real-time seamless transmission of serial port and WiFi data

Built-in HTTP Web Server to support the configuration of web pages parameters

WiFi supports three modes: AP, STA and AP + STA

Support WiFi STA mode automatic reconnection, TCP Client mode automatic reconnection

Serial port supports setting baud rate, data bit, parity check, stop bit and subcontracting time

Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400

Support AP enablement, custom SSID / password, custom IP and segment, etc

Scanning peripheral hot spots automatically, supporting STA enablement, DHCP, custom IP and network segments, etc

Support TCP Server, TCP Client, UDP Server, UDP Client and UDP LAN broadcasting

The remote server address supports DNS domain name automatic resolution

Supports viewing status through AT instructions

IO4 was introduced to characterize WiFi state

Work temperature range: - 40 °C ~ 125xa0°C

Application scenarios: smart home, wireless data collection and transmission, smart car control, wireless serial printer, outdoor LED lights, industrial control, etc.

xa0

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi + Bluetooth

Wi‑Fi Standard

802.11B/G/N
