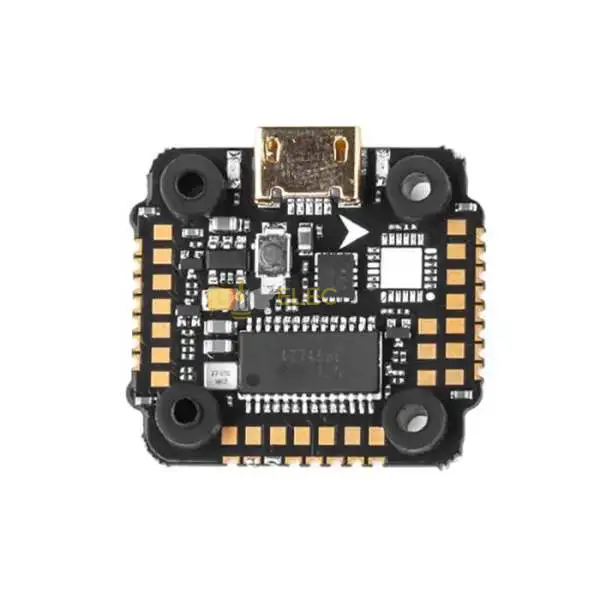

This is another smallest yet most powerful GOKU 405 Nano flight controller from Flywoo with features like a barometer, 16MB black box, 6 full hardware serial ports, I2C capability and WS2812 LEDs in every corner.
It is specifically designed for pin mounting to a Goku BS13A/35A 4in1 16x16 ESC, but can also be soldered via pads. Programmable WS2812 LEDs in each corner provide low-key lighting for this tiny FC.
Feature
F405 BGA flight controller
Barometer
5V 2A BEC
Black box 16MB
6 serial ports
WS2812LED
Specification
Flight control: STM32F405 BGA
Gyroscope: ICM42688\MPU6000
Barometer: BMP280
Input voltage: 2-6S
Onboard LED: WS2812*4
6 hardware serial ports (serial ports 1,2,3,4,5,6)
Only serial receivers (SBUS, iBus, Spektrum, Crossfire) are supported.
PPM and PWM receivers are not supported.
Onboard 16MB black box
5V power output: 2.0A max
3.3V power output: 0.5A max
Size: 22x22mm
Mounting Hole: Standard 16/16mm square to hole center
Weight: 2.3g
Firmware: FLYWOOF405NANO
