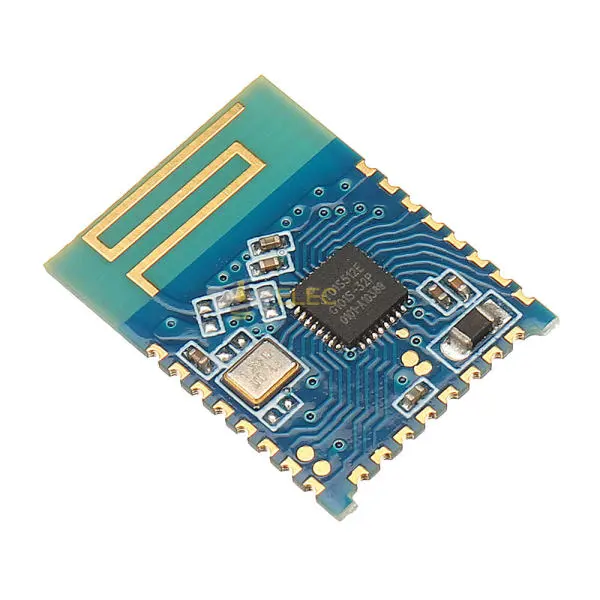

Elecbee JDY-19 Ultra Low Power bluetooth BLE 4.2 Module Serial Port Transmission Low Power Consumption

SKU: EB0045492

Favorites

Key Features

Model: JDY-19

Working frequency band: 2.4G

Transmit power: 4db (maximum)

Communication interface: UART

Operating voltage: 1.8V – 3.6V

Operating temperature: -40 ° C - 80 ° C

Antenna: Built-in PCB antenna

Receive sensitivity: -97dbm

Transmission distance: 80 meters

Master and slave support: slave

Module size: 19.6 * 14.94 * 1.8 mm (length, width, height)

bluetooth version: BLE 4.2 (compatible with BLE4.0, BLE4.1)

Awakening state current: 500uA (with broadcast)

Light sleep state current: <50uA (with broadcast)</50uA>

Deep sleep current: 3uA (no broadcast)

Instruction parameter saving: Parameter configuration power-down data is saved

STM soldering temperature: <260°C</260>

Datasheet

EB0045492

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth + Cellular

Model

Show Similar Products >

Description

Manual: click here
More informations: https://img.elecbee.com/ic/download/rar/20181201014123JDY-19-V1.5.rar

Introduction:

JDY-19 transparent transmission module is based on bluetooth 4.2 protocol standard, working frequency range is 2.4GHZ range, modulation mode is GFSK, maximum transmission power is 4db, maximum transmission distance is 40 meters, supports users to modify equipment through AT command instructions such as name and baud rate are convenient and quick to use.

The JDY-19 bluetooth module can realize module and mobile phone or module and module data transmission, and can quickly use BLE bluetooth for product application through simple configuration.

1 x bluetooth Module
