More Information:
https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library
https:/t-watch-document-en.readthedocs.io/en/latest/index.html
Product Description:
| Hardware Specifications | |
| Chipset | ESP32,dual-core MCU,PMU power management |
| FLASH | QSPI flash 16MB |
| SRAM | 520 kB SRAM / PSRAM 8MB |

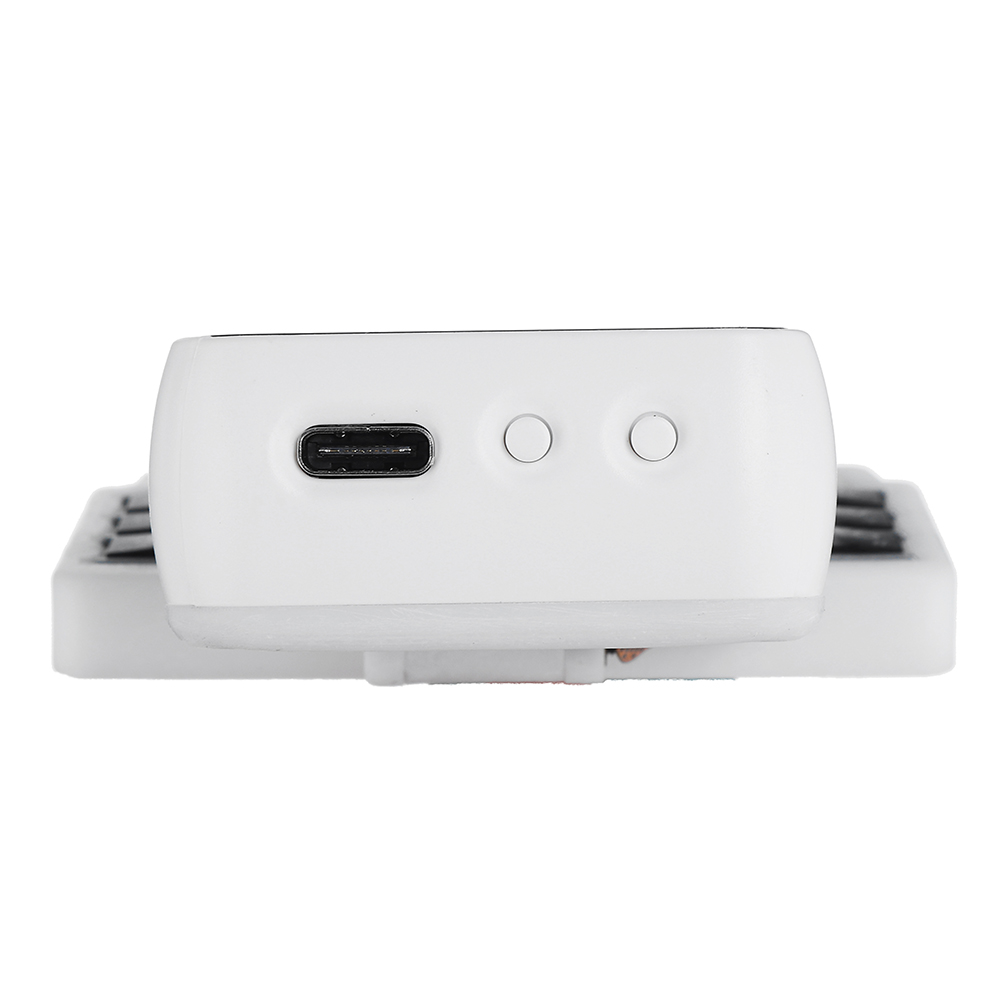

| Button | Power key , IO36 |
| Extended function | Reference enhanced version and sensor kit |
| USB to TTL | CP2104 |

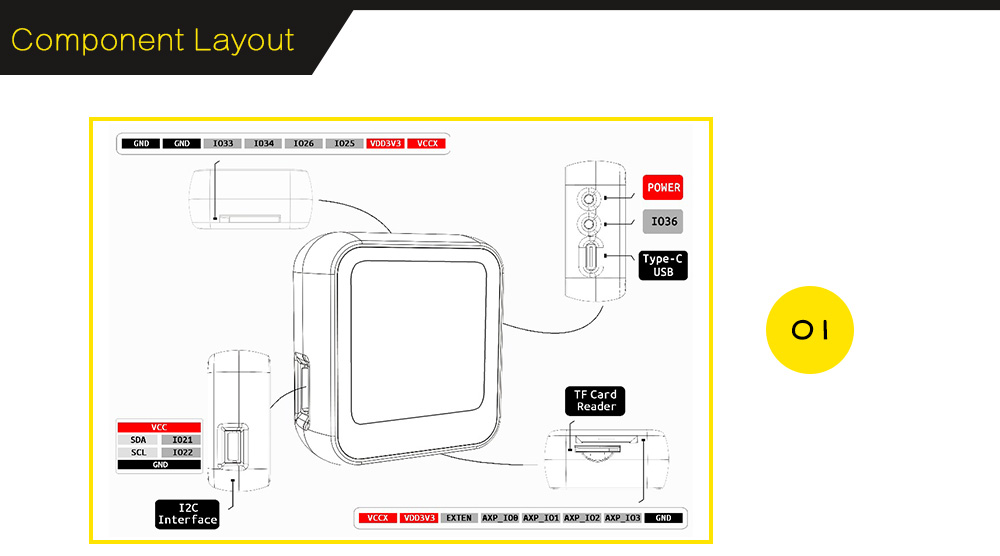

| Modular interface | UART,SPI,SDIO,I2C,LED PWM,PWM,I2S,IRGPIO,capacitor touch sensor,ADC,DACLNA |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | About 70mA |
| Sleep Current | About 1mA |
| Working temperature range | -40℃ ~ +85℃ |
| Size | 91.71 x 70.64 x 25.33mm |
| Weight | 56.23g |

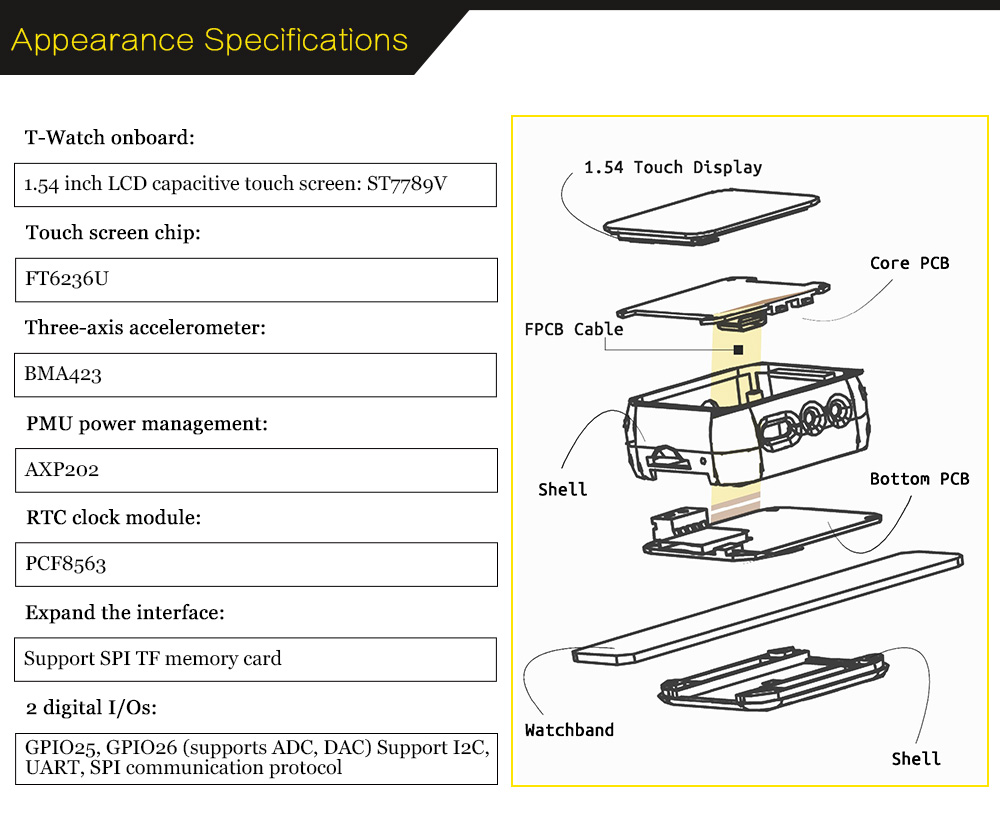

| Display | 1.54 inch LCD capacitive touch screen |
| Sensor | BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition. |
| RTC clock | PCF8563 |
| Power Supply Specifications | |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery (JST: 2Pin 1.25mm) |
| Wi-Fi | |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| Bluetooth | |
| Protocol | Meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software specification | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA(Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4,IPv6,SSL,TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |

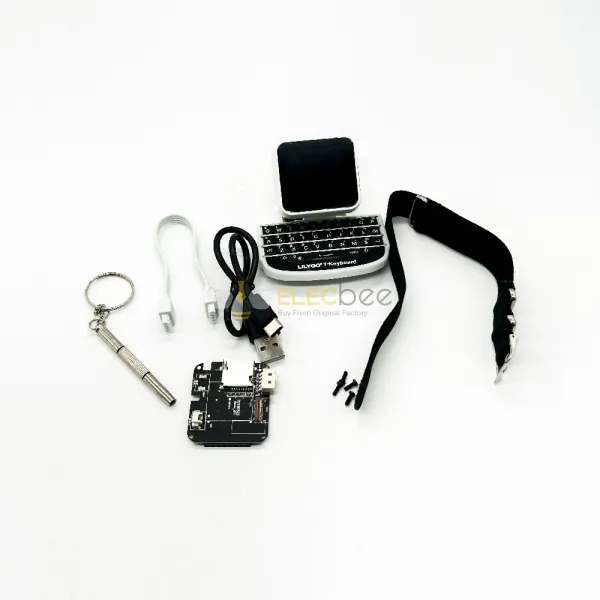

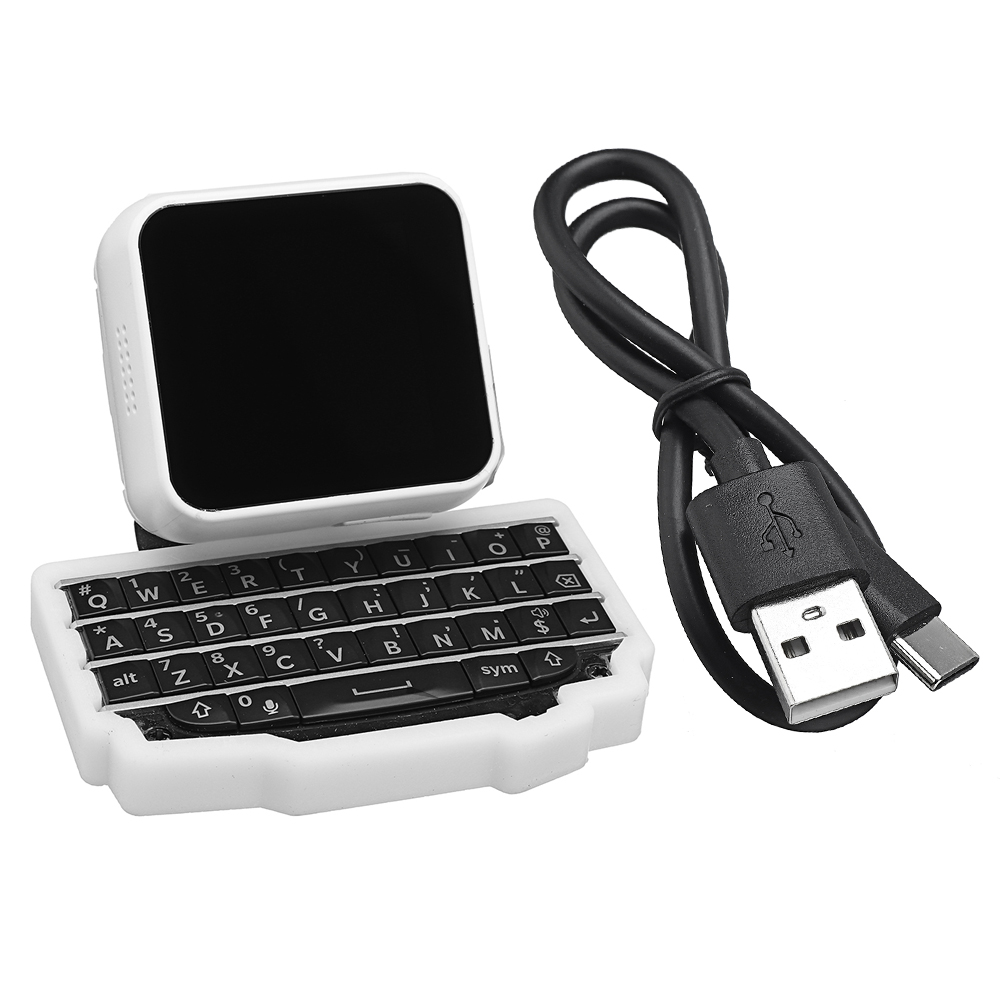

Package includes:

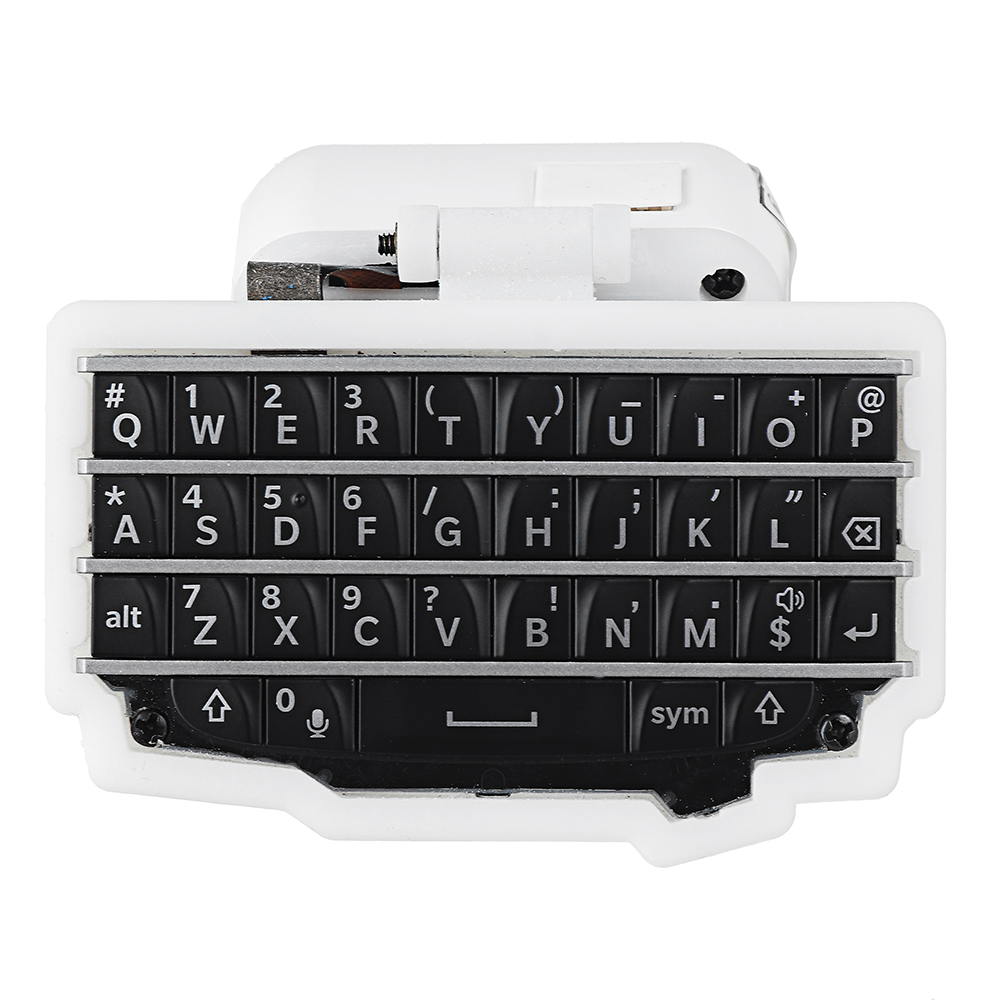

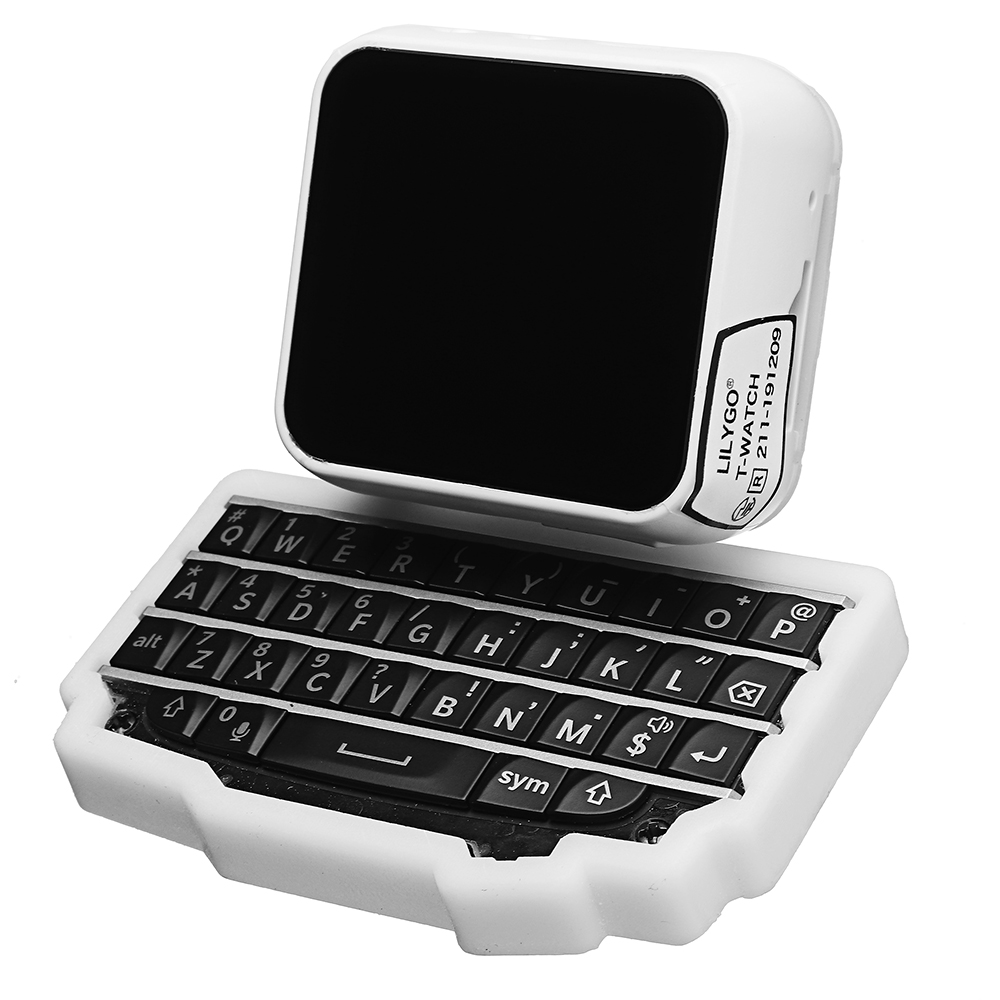

1 x T-Watch with Keyboard
1 x Charging Cable
