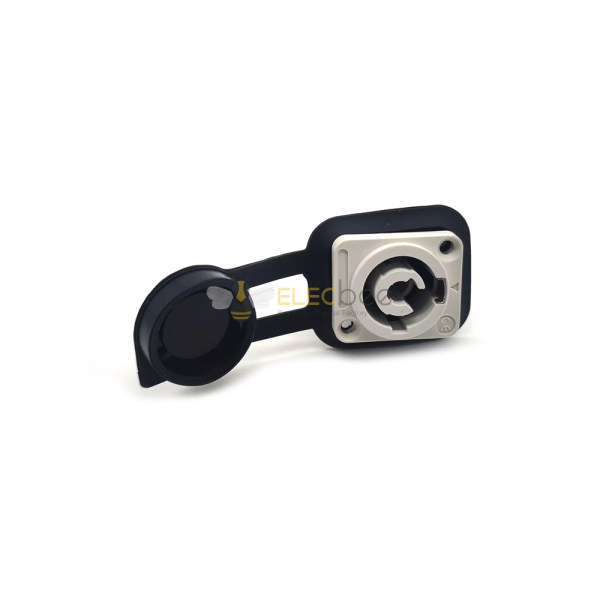

Elecbee Led Display Connector High Current Female Socket Connector Stage Lighting Power Ip65

SKU: EB-046-0008
Favorites
Key Features

Description

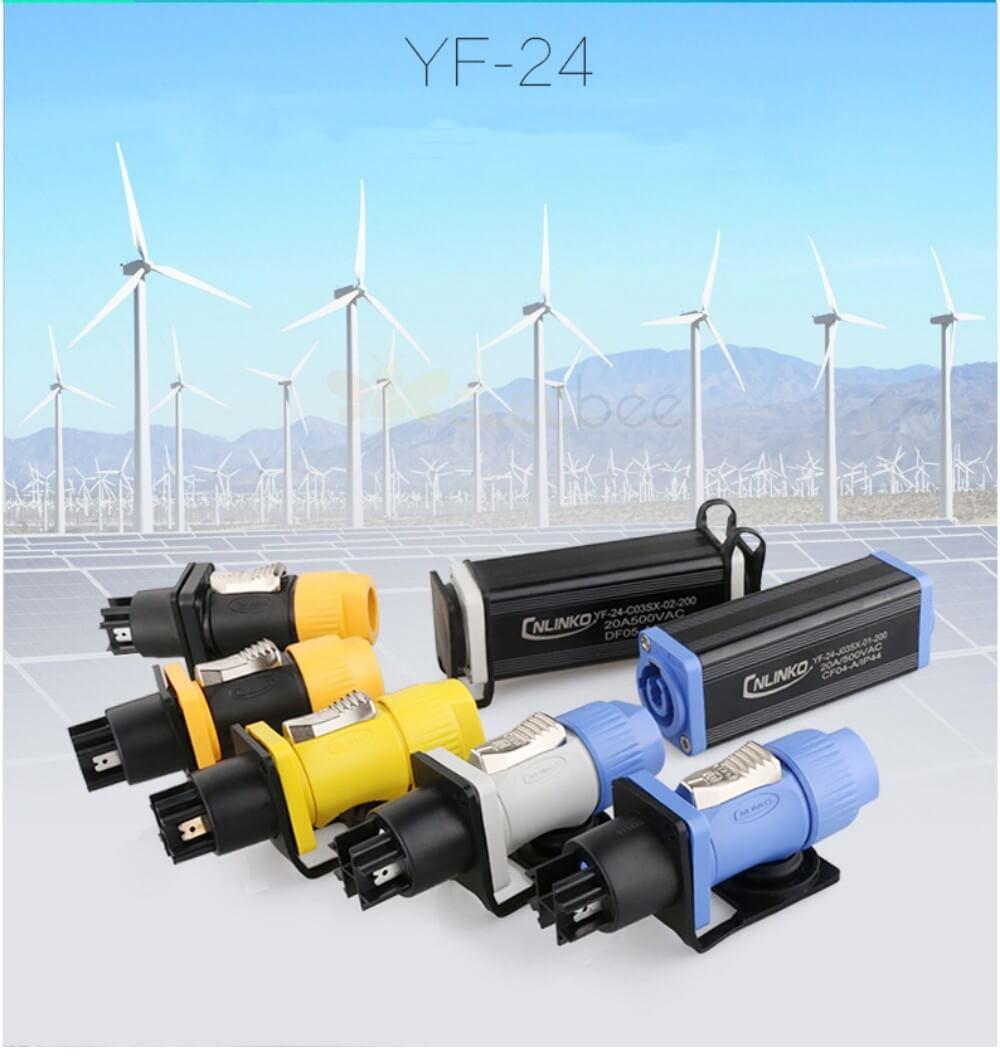

YF24 waterproof aviation plug, locking 3-core equipment connectors, suitable for quick installation and connection of LED, display, power supply, audio, Canon, Newquerk, plug lights and other equipment; —YF-24 power connector, use 20A/250VAC high current capacity, the quality meets international standards, and supports left and right docking and extended wiring; -YF24 Canon plug, uses different colors for identification of input (blue) and output (gray), making wiring easier Easy and convenient to avoid mutual matching errors;
Show More
Attribute
Value
Connector Type
Plug
Termination
Solder
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Ingress Protection
IP65
Rated Current
20A
Rated Voltage
250VAC
Connector Series
YF
Color
Black, White
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PBT
Contact Material
Copper Alloy
Cable Diameter
14AWG~12AWG
Description
