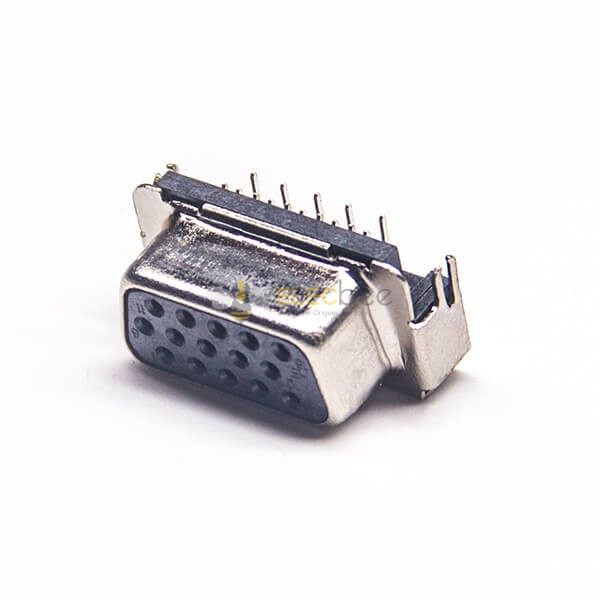

Elecbee Mini VGA Port 15Pin Female Right Angle Though Hole Connector

SKU: EB-601-0085
Favorites
Key Features

Features:

  • Standard D-sub,Receptacle,15 Pin,3 Rows,Single Port,Right Angle,Stamped Pin,Tin plated,Through Hole,Panel Mount,IP20,Without Filtered
  • Industry standard interfacing RS232 and RS449 mating configurations per EIA standards;
  • Inserts are flame-retardant thermoplastic;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics
Show More
Attribute
Value
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
3
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Straight DIP
Contact Type
Female Pin
Number of Positions
15 Pin
Ingress Protection
IP20
Contact Finish
Tin Plated
Insulation Color
Black
Contact Processing Technic
Stamped
