The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption.

You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc.

Features:

Standard 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.

Supports GPS, BeiDou, Glonass, LBS base station positioning

Onboard USB interface, to test AT Commands, get GPS positioning data, and so on

Onboard CP2102 USB to UART converter, for serial debugging

UART control pins, to connect with host boards like Arduino/STM32

SIM card slot, supports 1.8V/3V SIM card

TF card slot for storing data like files, messages, etc.

Onboard audio jack and audio decoder for making telephone call

2x LED indicators, easy to monitor the working status

Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper

Baudrate: 300bps ~ 4Mbps (default: 115200bps)

Autobauding baudrate: 9600bps ~ 115200bps

Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)

Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Communications Specifications:

	LTE	WCDMA / TD-SCDMA / CDMA 2000	EDGE	GSM/GPRS
Band	SIM7600A-H:	SIM7600A-H:	Not available
	LTE-FDD B2/B4/B12	UMTS/HSPA+ B2/B5	Not available
	SIM7600E-H:	SIM7600E-H:	GSM/GPRS/EDGE 900/1800 MHz
	LTE-FDD B1/B3/B5/B7/B8/B20	UMTS/HSPA+ B1/B5/B8
	LTE-TDD B38/B40/B41
	SIM7600CE-T:	SIM7600CE-T:
	LTE-TDD B38/B39/B40/B41	UMTS/HSDPA/HSPA+ B1/B8
	LTE-FDD B1/B3/B8	TD-SCDMA B34/B39
		CDMA 1X/EVDO BC0
	SIM7600G-H:	SIM7600G-H:	SIM7600G-H:
	LTE-TDD B34/B38/B39/B40/B41	UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19	GSM/GPRS/EDGE 850/900/1800/1900MH
	LTE-FDD B1/B2/B3/B4/B5/B7/B8
	/B12/B13/B18/B19/B20/B25/B26/B28/B66
Generation	4G	3G	2.5G	2G
Emitting power	0.25W		0.5W@EGSM900	2W@GSM900
Emitting power	0.25W		0.4W@DCS1800	1W@DCS1800
Data Speed	LTE CAT 4	UMTS	EDGE	GPRS
	Uplink≤50 Mbps	Uplink≤384Kbps	Uplink≤236.8kbps	Uplink≤85.6kbps
	Downlink≤150 Mbps	Downlink≤384Kbps	Downlink≤236.8kbps	Downlink≤85.6kbps
		HSPA+
		Uplink≤5.76Mbps
		Downlink≤42Mbps
SIM Card	Normal SIM (Not Included)

GNSS Specifications:

Receiver type

16-channel

C/A code

Sensitivity

Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)

Cold starts: -148 dBm

Time-To-First-Fix (open air)

Cold starts: <35s

Hot starts: <1s

Accuracy

Position: <2.5m CEP

SMS and Audio Specifications:

SMS

Supported types: MT, MO, CB, Text, PDU

Storage: USIM card and ME (default)

Audio feature

Supports echo cancellation

Supports noise reduction

Other Specifications:

Power supply: 5V

Operating voltage: 5V/3.3V (configured via jumper)

Operating temperature: -30°C ~ 80°C

Storage temperature: -45°C ~ 90°C

Dimension: 56.21mm x 65.15mm

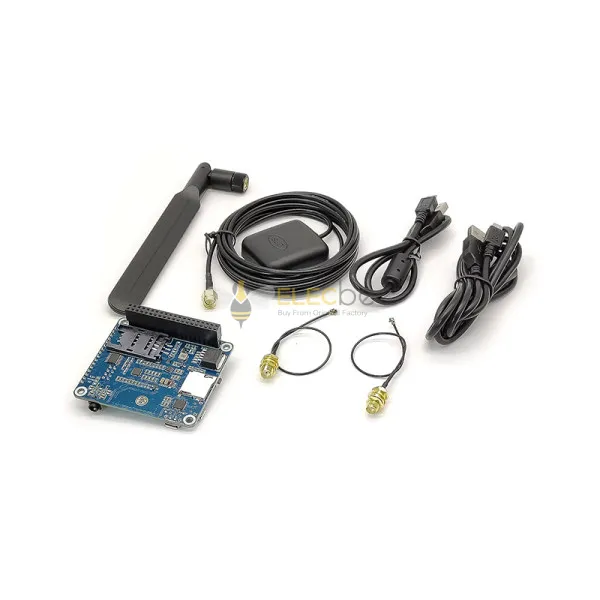

Package includes:

1 x SIM7600G-H 4G HAT

1 x LTE antenna

1 x GPS External Antenna (B)

2 x USB cable type A male port to micro male port

1 x RPi copper pillar package (2PCS set)

What's on Board:

1. SIM7600G-H

2. CP2102 USB to UART converter

3. NAU8810 audio decoder

4. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V

5. MP2128DT power chip

6. MP1482 power chip

7. Raspberry Pi GPIO header: for connecting with Raspberry Pi

8. SIM7600 control interface: for connecting with host boards like

Arduino/STM32

9. SIM card slot: supports 1.8V/3V SIM card

10. TF card slot: allows file/SMS/... storage

11. 3.5mm earphone/mic jack

12. USB interface: for testing AT Commands, getting GPS positioning data, etc.

13. USB to UART interface: for serial debugging, or login to Raspberry Pi

14. MAIN antenna connector

15. AUX antenna connector

16. GNSS antenna connector

17. Power switch

18. Network status indicator

19. Power indicator

20. Operating voltage selection jumper:

VCCIO - 3.3V: set operating voltage as 3.3V

VCCIO - 5V: set operating voltage as 5V

21. UART selection jumper:

A: access Raspberry Pi via USB to UART

B: control the SIM7600 by Raspberry Pi

C: control the SIM7600 via USB to UART

Wavesharereg-SIM7600G-H-4G3G2GGSMGPRSGNSS-HAT-Communication-Expansion-Board-GNSS-Positioning-For-Jet-1755076
