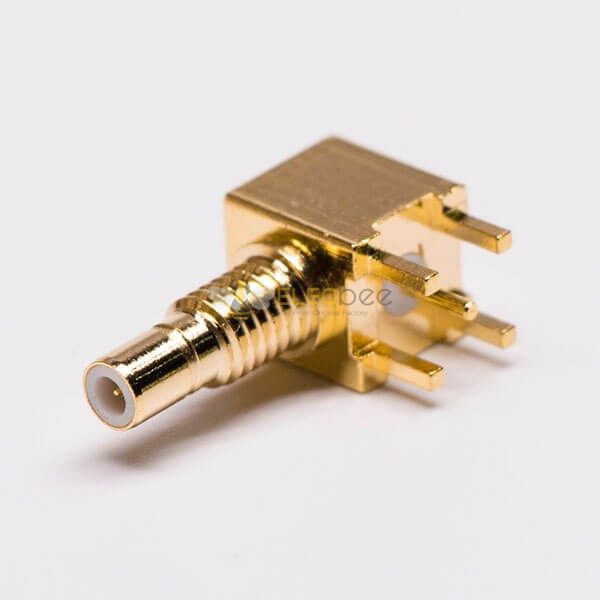

Elecbee smb female right angle connector Gold Plated for PCB Mount

SKU: EB-008-0054
Favorites
Key Features

Features:

  • Pcb Mount, Jack/female, Angled/90°, Through Hole;
  • Snap-on coupling design for fast installation;
  • With boardband performance and low reflection;
  • To reduce your Cost by using die casting process in non-critical areas.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of SMB Connectors:

  • Aerospace and Defense: Test Stands
  • Technology: Telemetry
  • Commercial Vehicle: GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications: Routers, WIFI, Radio Boards
  • Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
Show More
Attribute
Value
Connector Type
Jack, male_socket
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Bulkhead
Termination
Solder
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
4 GHz
Connector Series
SMB
Color
Gold
Fastening Type
Push-on
Orientation
Right Angled
Shell Material
Copper Alloy
