Part Number: EB-DRF-0196

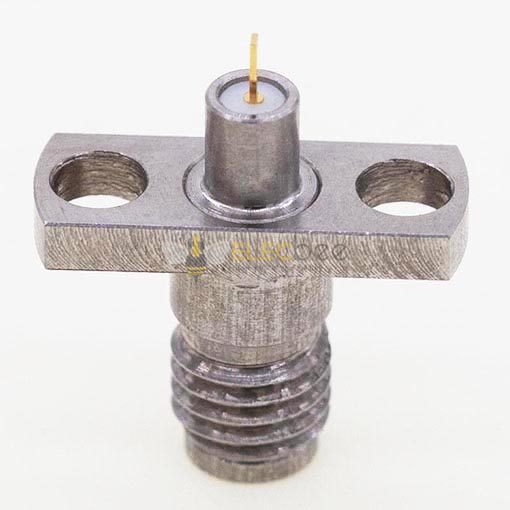

Description: SSMA Female Bulkhead Flange RF Connector, 12.7 x 4.8mm / 0.500 x 0.190inch Flange Jack with 2.8mm / .110″ Horizontal Flat Pin Terminal.
This EB-DRF-0196, SSMA 2-hole female bulkhead flange RF connector with size 12.7 x 4.8mm / 0.500 x 0.190inch flange jack & 2.8mm / 0.110inch horizontal flat pin terminal, frequency range from DC to 40GHz, 50Ω impedance, VSWR 1.20:1 (max) for DC~40GHz, 750V withstanding voltage, ≥1000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
| Polarity | Standard |
| Interface | SSMA |
| Connector Type | Jack |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 2 Hole Flange |
| Attachment Method | Solder |
| Frequency Range | DC~40GHz |
| VSWR： | DC~40GHz: 1.20:1 (Max) |
| Contact Resistance | Centre Conductor ≤5.0mΩ |
| Outer Conductor ≤2.5mΩ | |
| Insulation Resistance | ≥1000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper |
| Gold Plated | |
| Insulators | PTFE & PEI |
