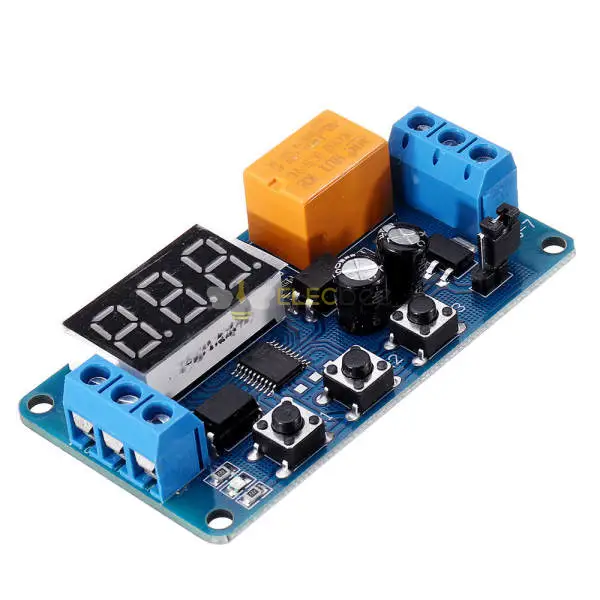

Elecbee YYC-7 Time Delay Relay Module Signal Cycle Timing Switch Timer Relay 3V 3.7V 4.5V 5V 6V 7.4V

SKU: EB0046865

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

DC3V

Show Similar Products >

Description

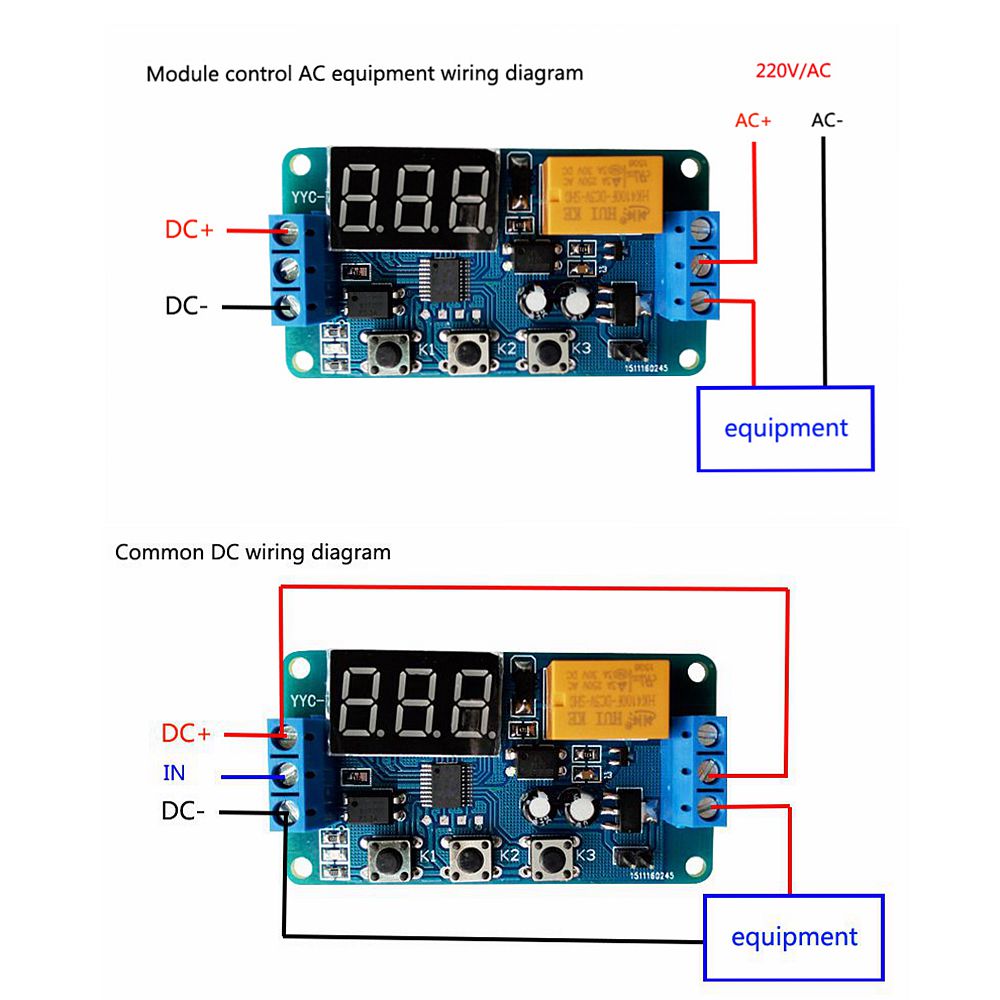

Specifications:

1. Working voltage: DC DC 3V~7V

Plus short-circuit cap voltage range: 3V~5.5V, remove the short-circuit cap voltage range: 3.8V~7V

2: Signal source: 2: Signal voltage: DC DC3V~12V (common power supply positive trigger, button, PNP sensor, PLC signal, etc.)

3: Output capacity: can control devices within 30v3A or within 220v3A

4: Quiescent current: 15mA Operating current: 30mA

5: Working temperature: -40~85 degrees Celsius; size: 64.2mm*34.8mm*15mm

6: Output optocoupler isolation, enhance anti-interference ability power consumption, industrial grade circuit board, set parameters to be remembered forever after power off.

Mode Selection:

After power-on, press and hold the K1 button for 2 seconds, short press K1 to enter the selection mode P1~4 to select, K2 enters the mode.

P-1: The signal triggers the relay to pull in. When the time is up, the relay is disconnected during the delay.

A: Invalid trigger again B: Re-trigger re-clocking C: Trigger relay reset again to stop timing

P-2: Signal trigger start timing time T1, time is up to relay pull-in time T2 disconnect (reset)

A: Invalid trigger again B: Re-trigger re-clocking C: Start delay without triggering power-on

P-3: Cycling: Turn on T1, disconnect T2, infinite loop. T1 and T2, the time is adjustable

If a parameter is turned on or off to 0, the power-on delay can be turned on or the power-on time-delayed power-off does not cycle.

A: The relay is turned on immediately after power-on. B: The relay is turned off and then turned on after power-on.

P-4: There is signal, the relay is closed, the pickup is kept, the signal disappears, the timing starts, the time is up, the relay is disconnected, during the delay, the signal is given again, the delay is cancelled, the relay is kept, the signal disappears, and the time is re-timed.

After the working mode is selected, short press K1 to enter the fine adjustment setting of the function, that is, the switching of A, B, C.

Set Time Description:

K2: Shift key: Press to adjust the flashing position of the digital tube, which digital tube flashes, K3 adjusts the value of the flashing digital tube. The digital tube no longer flashes until K2 is pressed.

K3: When the digital tube is flashing, K3 adjusts the digital change, and 0 to 9 change sequentially.

When the digital tube display is normal, K3 adjusts the decimal point position. The decimal point indicates 0 to 999 minutes in ones digits; 0 to 99.9 seconds in ten digits; 0 to 999 seconds in no decimal point.

Package Incldued:

1 x YYC-7 Time Delay Relay Module Signal Cycle Timing Switch Timer Relay
