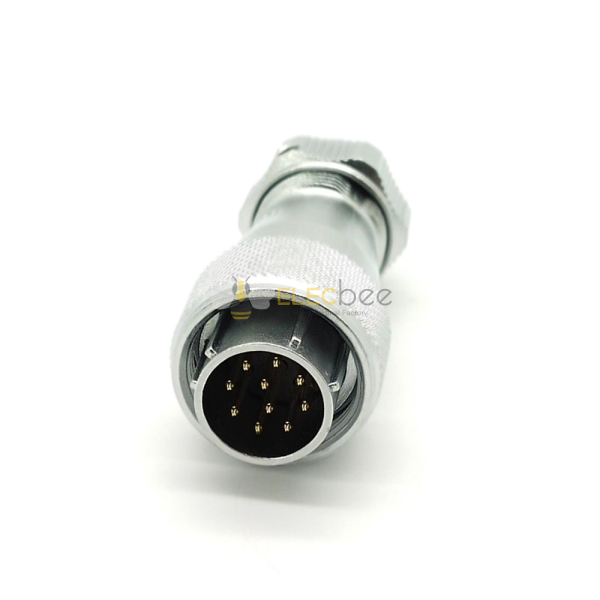

Elecbee 10pin TE Male Plug WF16 Straight Plug with metal clamping-nut Waterproof Connector

SKU: EB-WF16J10TE
Favorites
Key Features

Features:

  • Model Number: WF16
  • Shell Material: Zinc alloy
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 16mm

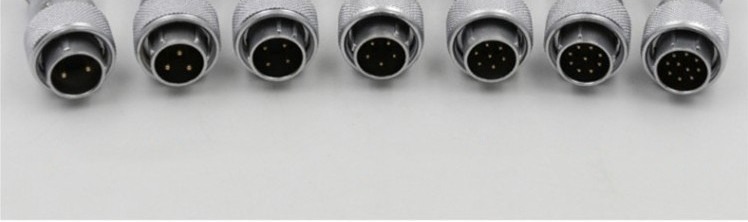

  • Number of Contacts: 2/3/4/5/7/9/10Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
10 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
400VAC
Features
Waterproof
Connector Series
WF16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
16
Insulation Color
Black
Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
17%
4 stars
17%
5 stars
67%
g****s
Perfect replacement for my outdoor lighting project. The metal clamping-nut ensures a tight seal and the zinc alloy shell feels very durable. Soldering was straightforward thanks to the clear pin layout.
L****i
Solid build quality and exactly as described. The PPS insulator gives me confidence in high-temp environments. Only took 2 days to arrive, well packed.
G****i
Used this WF16 connector in a marine application and so far no moisture ingress. Thread coupling makes it easy to assemble with gloves on. Highly recommend for harsh conditions.
A****a
Good connector but soldering the 10 pins takes patience. Would’ve liked pre-tinned wires. Works fine once assembled, just time-consuming.
H****o
Exactly what I needed for my Elecbee setup. The straight plug design fits perfectly in tight spaces. Waterproof rating holds up after rain exposure.
