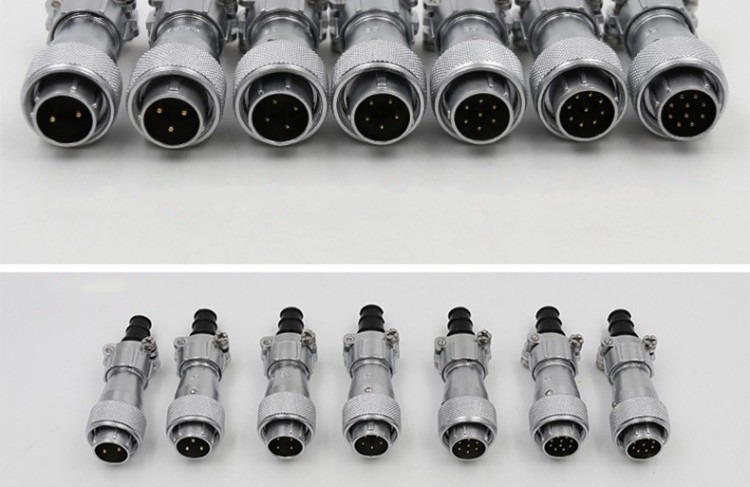

Elecbee 10pin TI Male Plug WF16 with cable clamping plates Straight Plug Waterproof Connector

SKU: EB-WF16J10TI
Favorites
Key Features

Features:

  • Model Number: WF16
  • Shell Material: Zinc alloy
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 16mm
  • Number of Contacts: 2/3/4/5/7/9/10Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
10 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
5A
Rated Voltage
400VAC
Features
Waterproof
Connector Series
WF16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS

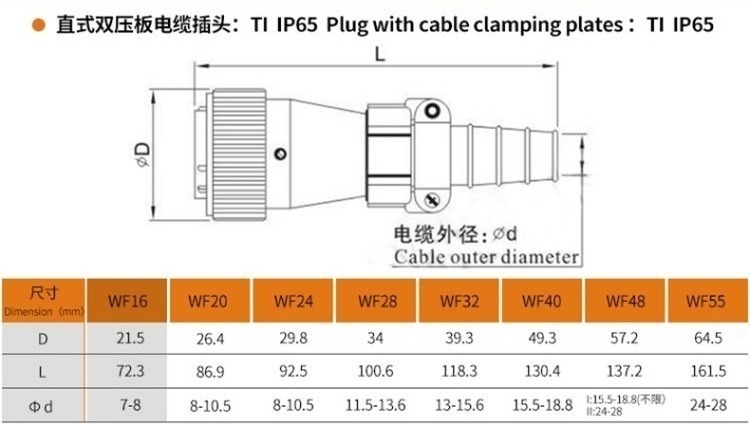

Cable Diameter
18AWG
Shell Size
16
Insulation Color
Black
