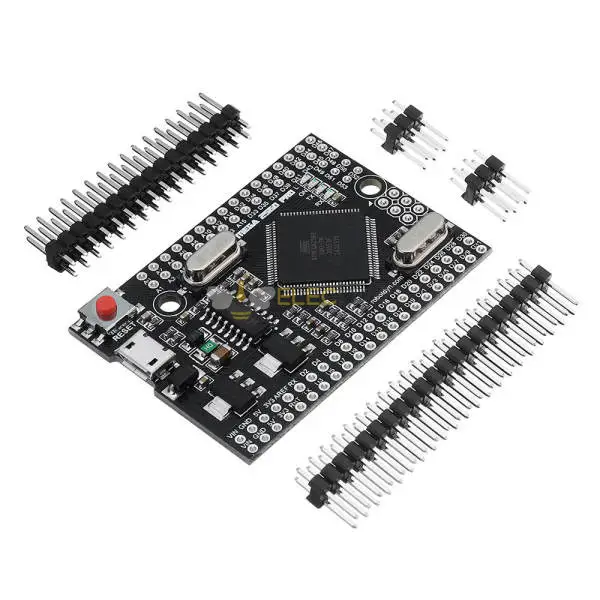

Elecbee 2560 PRO (Embed) CH340G ATmega2560-16AU Development Module Board With Pin Headers

SKU: EB0041496
Favorites
Key Features
Show More
Datasheet
Attribute
Value
MCU/SoC Model
2560 PRO (Embed)
CPU Architecture
ATMEGA2560
Wireless Capability
AVR
Memory
Arduino IDE
Debug Interface
USB/UART/CAN
Power Protection
5V/9V
Thermal Solution
UART
Description


General information:
1. The Mega Pro Embed CH340G / ATmega2560 board is based on the ATmega2560 microcontroller and the USB-UART adapter CH340. The board is compatible with Mega 2560.
2. The board has a compact form factor of 38X55mm and is an excellent solution for developing projects based on ATmega2560.
3. The Mega Pro Embed functionalities are identical to the Mega 2560. Even though it is an Embed board, it is solid stable as the Mega Board. It uses the original chip, and a 16 MHz high-quality quartz resonators is present on the board.
4. The board has a Micro USB connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340(A driver installation may be required). Download drivers: Windows, Linux, Mac, Android.
5. The board can be powered directly through the Micro USB connector, or via the corresponding contact on the board (Vin). The used voltage regulator operates in a range of 6 to 9V DC.
6. The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.
7. The voltage regulator allows to use up to 18V as an input value, however, we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device.

Specifications:


MicrocontrollerATmega2560
USB-TTL converterCH340
Power Out5V-800mA
Power IN.5V
Power IN. VIN/DC Jack5V
Power Consumption5V 220mA
Logic Level5V
USBMicro USB
Clock Frequency16MHz
Operating Supply Voltage5V
Digital I/O54
Analog I/O16
Memory Size256kb
Data RAM Type/Size8Kb
Data ROM Type/Size4Kb
Interface TypeISP
Operating temperature−40С°/+85С°
Length x Width38×54mm




1 x Mega 2560 PRO with unsoldered Pin Headers
