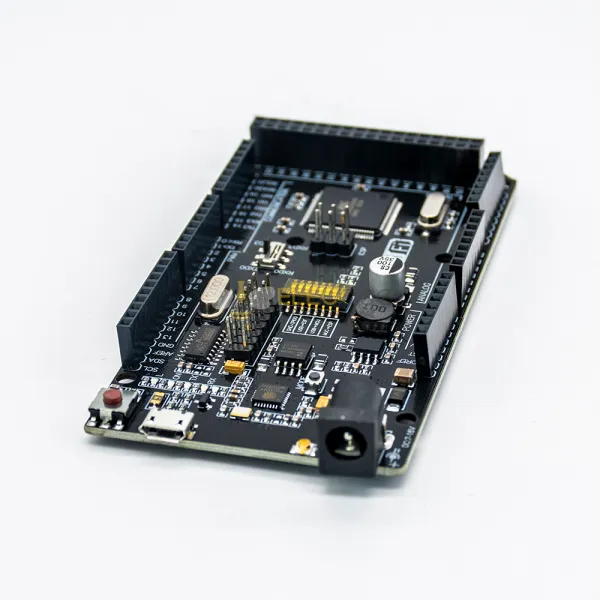

Elecbee +WiFi R3 Module ATmega2560+ESP8266 32Mb Memory USB-TTL CH340G

SKU: EB0041473
Favorites
Key Features
Show More
Datasheet
Attribute
Value
MCU/SoC Model
+WiFi ATmega2560+ESP8266 32Mb
CPU Architecture
ESP8266
Wireless Capability
Xtensa L106
Wi‑Fi Standard
Wi-Fi + Bluetooth
Memory
ESP-IDF/Arduino
Debug Interface
USB/CAN
Bluetooth Version
80
Power Protection
USB 5V
Description
Description:

Full integration on one board: Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb.
All of the modules can work together or each separately. And everyone has their own pinout headers.
The convenient solution for the development of new projects requiring Uno and WiFi.
Via USB you can update sketches and firmware for ATmega2560 and for ESP8266.
For this on board have the USB-serial converter CH340G.
Use this board is very simple.
The board has DIP-switch, to connect the modules.
For example, to: USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.

Table DIP- switch:


ConnectionDIP
 1234567
ATmega2560<->ESP8266ONONOFFOFFOFFOFFOFF
USB <->ATmega2560OFFOFFONONOFFOFFOFF
USB<->ESP8266 (Update firmware or sketch)OFFOFFOFFOFFONONON
USB<->ESP8266 (communication)OFFOFFOFFOFFONONOFF
All independentOFFOFFOFFOFFOFFOFFOFF

Special solution:

USB <->ATmega328<-> ESP8266

 DIPSWITH 2
Connection1234567
USB <-> ATmega2560<-> ESP8266ONONONONOFFOFFOFFTo RXD3/TXD3

USB converter CH340G connect to RX0/TX0 of ATmega2560
ESP8266 connect to RX3/TX3 of ATmega25
