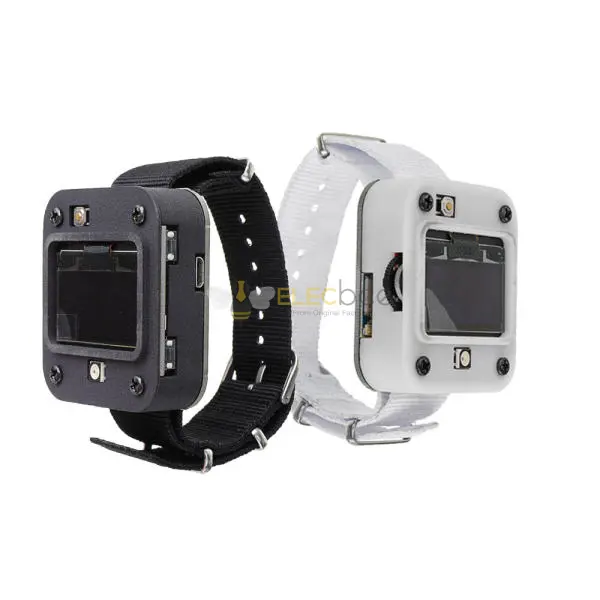

Elecbee Deauther Watch V2 ESP8266 Programmable Development Board Smart Watch NodeMCU for Arduino

SKU: EB0041603
Favorites
Key Features
Show More
Attribute
Value
MCU/SoC Model
Deauther Watch ESP8266
CPU Architecture
ESP8266
Wireless Capability
Xtensa L106
Memory
ESP-IDF/Arduino
Debug Interface
GPIO/CAN
Bluetooth Version
80
Description
GPIOs and hardware info:

Display: SH1106 1.3" OLED
Display SDA: GPIO 5 (D1)
Display SCL/SCK: GPIO 4 (D2)
WS2812b LED: GPIO 15 (D8)
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14
High Light LED: GPIO 16
Side Button: GPIO0,RST

Why did you make it?

I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and is officially supported.

What makes it special?

Only - 80mA power usage
Up to around 8-10 hours work time
800 mA charging current
Indicate charging LED (25%,50%,75%,100%)
Included 5dB FPC antenna and 2dB antenna
Power Switch (Click to turn on, double click to turn off)
Protection: short, overcharging, over discharging, temperature
Added Extremely Accurate DS3231

Disclaimer

Use it only for testing and educational purposes against your own devices! I don't take responsibility for what you do with it.

Please check the legal regulations for your country to make sure you don't violate any laws.

You can get full information from WiKi


Scehmatic and 3D Print Design files

RTC Test



1 x DSTIKE Deauther Watch V2 ESP8266 Programmable Development Board





DSTIKE-Deauther-Watch-V2-ESP8266-Programmable-Development-Board-Smart-Watch-NodeMCU-DSTIKE-for-Ardui-1631999
DSTIKE-Deauther-Watch-V2-ESP8266-Programmable-Development-Board-Smart-Watch-NodeMCU-DSTIKE-for-Ardui-1631999
DSTIKE-Deauther-Watch-V2-ESP8266-Programmable-Development-Board-Smart-Watch-NodeMCU-DSTIKE-for-Ardui-1631999
DSTIKE-Deauther-Watch-V2-ESP8266-Programmable-Development-Board-Smart-Watch-NodeMCU-DSTIKE-for-Ardui-1631999
