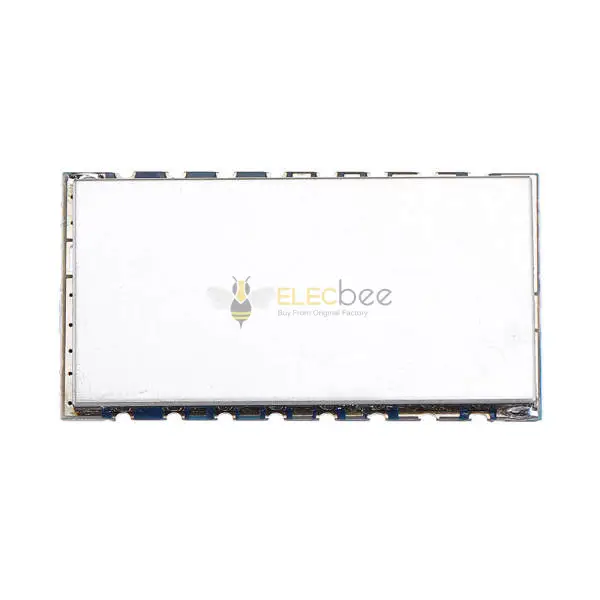

Elecbee 433MHz RF4463F30 1W High Power Ultra Long Range Wireless Front End Transceiver Module FSK GFSK SI4463

SKU: EB0042234

Favorites

Key Features

Features:

● Frequency range: 433MHz

● Sensitivity up to -126dBm

● Maximum output power: 30dBm

● (G)FSK, 4(G)FSK, (G)MSK

OOK and ASK modulation mode

● 10mA@ receiving status

● Data transmission rate: 0.1-1000kbps

● 3.3-6.5 V power supply

● Digital Received Signal Strength Indicator (RSSI)

● Timed wake up function

● Antenna automatic matching and bidirectional switch control

● configurable packet structure

● Preamble detection

● 64/128 byte Transceiver Data Register (FIFO)

● Low power detection

● Temperature sensing and 8-bit analog-to-digital converter

● Operating temperature range: -40 ~ +85 °C

● Integrated voltage regulator

● Frequency hopping function

● Built-in crystal adjustment function

● Ultra low power shutdown mode

Applications:

● Wireless remote control

● Remote meter reading

● Smart home

● Industrial control

● Toy control

● Sensor network

● Tire pressure monitoring

● Health monitoring

Note: (The following parameters are VCC = 5V, connected to the instrument with a 50 ohm copper axis)

Parameter	MIN.	Typical	MAX.	UNIT	Condition
Operating conditions
Operating voltage range	3.3	5	6.5	V
Operating temperature range	-40		85	℃
Current consumption
Receiving current		13.5		mA	High sensitivity mode
Receiving current		10		mA	Low sensitivity mode
Emission current		500	550	mA	Vcc=5v,Tx=30dBm
Sleep current		≦fgf <2	3	uA
RF parameters
Frequency Range	410	433	450	MHZ	@433MHZ
	470	490	510	MHz	@470MHz
	863	868	873	MHZ	@868MHZ
Modulation rate	0.1		1000	Kbps	FSK
Maximum transmit power	29.5	30	31	dBm	433MHzV, CC = 5V
Receiving sensitivity	-125	-126		dBm	433MHz@data=600bps,Fdev=3kHZ
