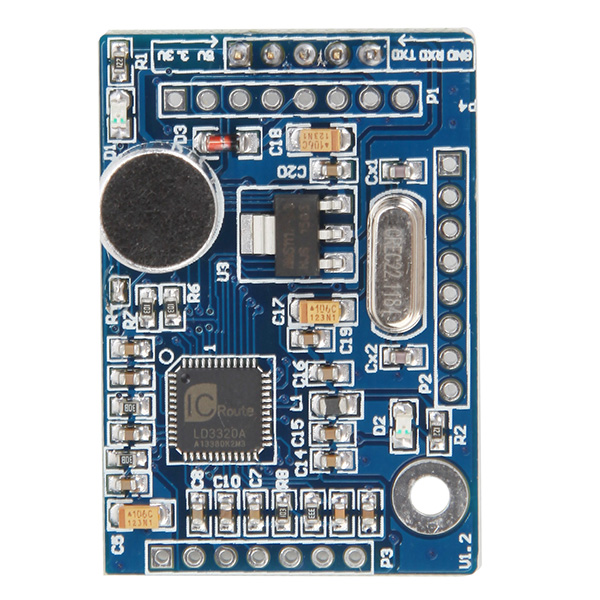

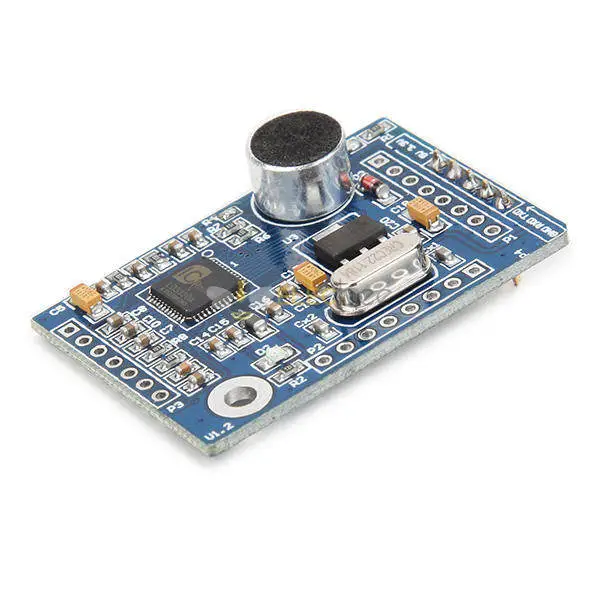

Elecbee Speech Recognition Module Voice Board VRM LD3320 ASR 5V Power

1. The microcontroller (STC) programming mode is the same with 51, 52 series microcontroller programming mode, users do not need to re-learn a new microcontroller register, it can be programmed directly;
2. Integrated design, eliminating the tedious drive, has been supporting the development of source code, direct serial output identification code, the operation is extremely simple.
3. Set aside 16 single-chip IO port, including a group of eight IO expansion interface, a timer, an external interrupt, can be the smallest single-chip system control functions, without supporting with other MCU to complete the work;
4. Small size, with 3MM standard mounting holes, easy mounting and embedding is very practical;
5. With the serial communication function, set aside the relevant interface and provides 5V, 3.3V power supply interface for easy download.
6. With the password mode and normal mode of identification, come with source code, can be secondary development..
7. Volume 3 * 4.3CM easily embedded into the product device.

Specification:

Specifications: 43 x 29.7mm
Supply voltage: 5V
IO port output: 3.3V High level
Communication: Serial communication (3.3v TTL level,, does not support max232, RS485)

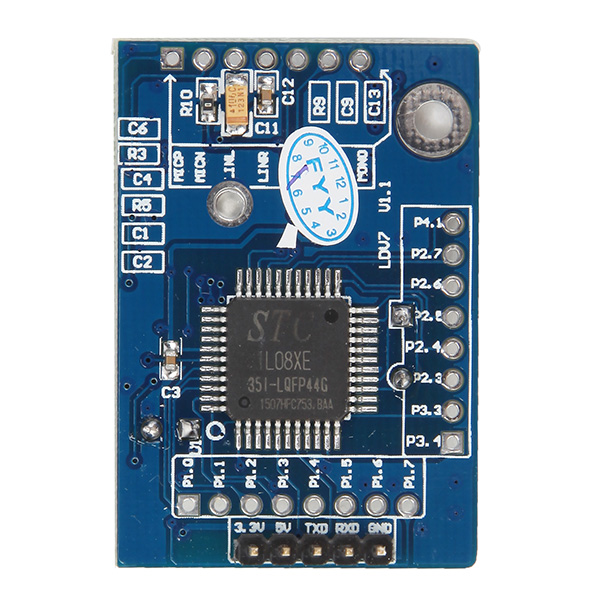

parameters: Model -> STC11L08XE, flash -> 8k, SRAM -> 1280, eeprom -> 32k

Use recommended:

Home intelligent control
Smart car DIY design
Freescale intelligent voice control
Personal DIY design
Voice control of embedded product design
