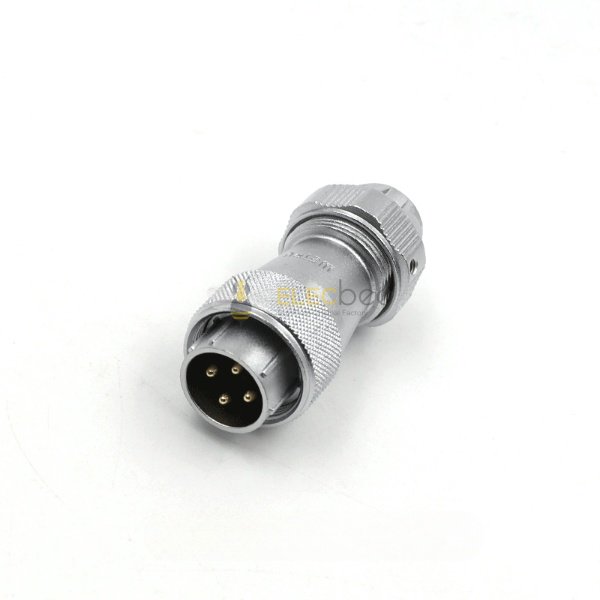

Elecbee 4pin TE Male Plug with metal clamping-nut WF20 Straight Plug Waterproof Connector

SKU: EB-WF20J4TE
Favorites
Key Features

Features:

  • Model Number: WF20
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 20mm

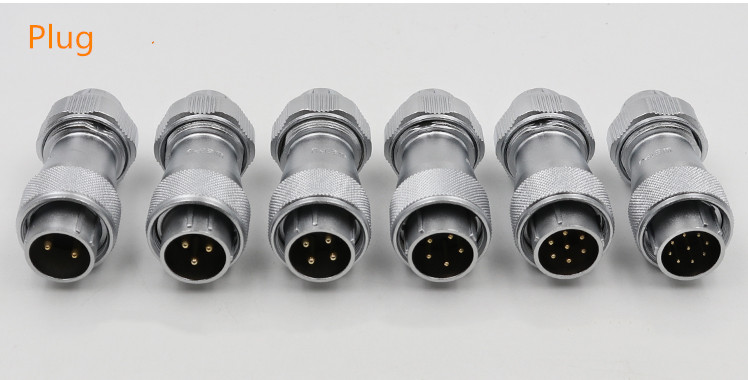

  • Number of Contacts: 2/3/4/5/7/9/12/15Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
4 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
25A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF20
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
11AWG
Shell Size
20
Insulation Color
Black
