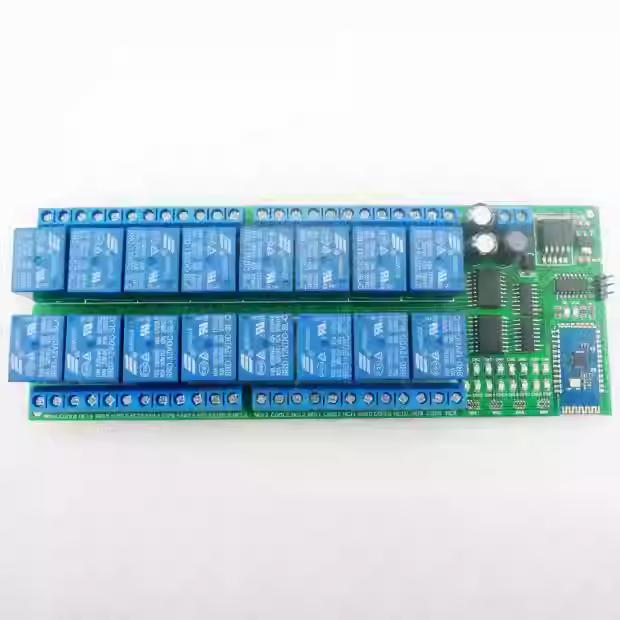

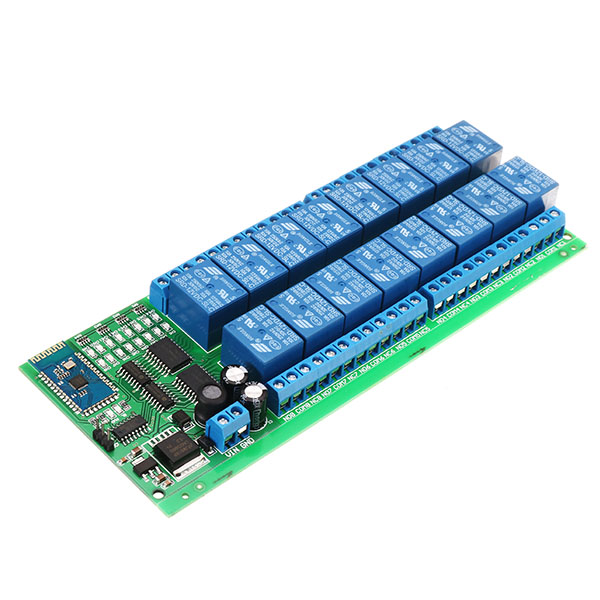

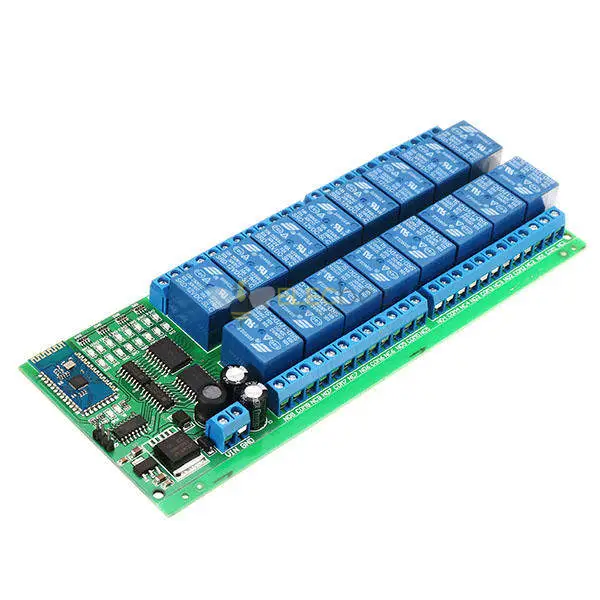

BT22A16 12V 16-Channel Bluetooth Relay Board for Android - Wireless Remote Control Switch with APP Support, Smart Home Lighting Controller

SKU: EB0042556
Favorites
Key Features

xa0
Operating Current: Standby current (all relays closed) 14MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA,
4 relays open 123MA, 5 relays open 150MA, 6 relays open 177MA, 7 relays open 203MA, 8 relays open 229MA, 16 relays open 480MA.

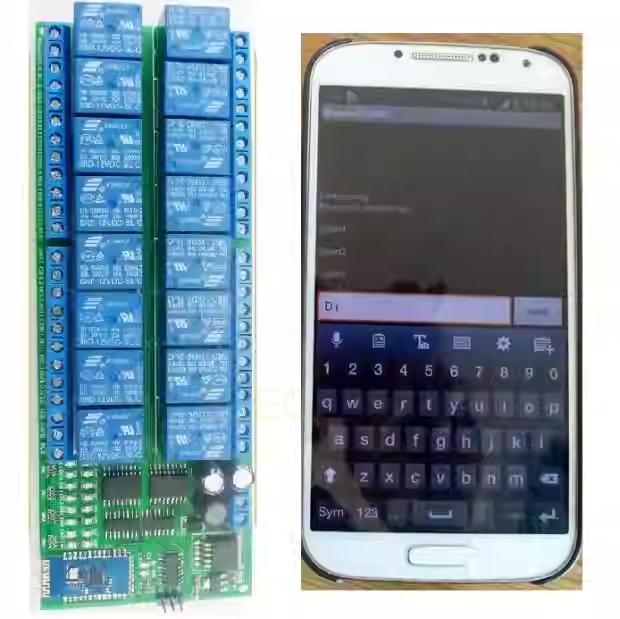

Send commands via Android "bluetooth APP" control relay turned on and off.
Momentary, Self-locking, Interlock, Open, Close, 5 Commands.
Maxmium remote distance is up to 10 meter.
Only suitable for android phones with bluetooth functions.
Reference infos:xa0Click here to open

Specifications:xa0

bluetooth version: 2.1xa0
bluetooth password: 1234xa0
Control mode: Phone bluetooth / Relay switchxa0

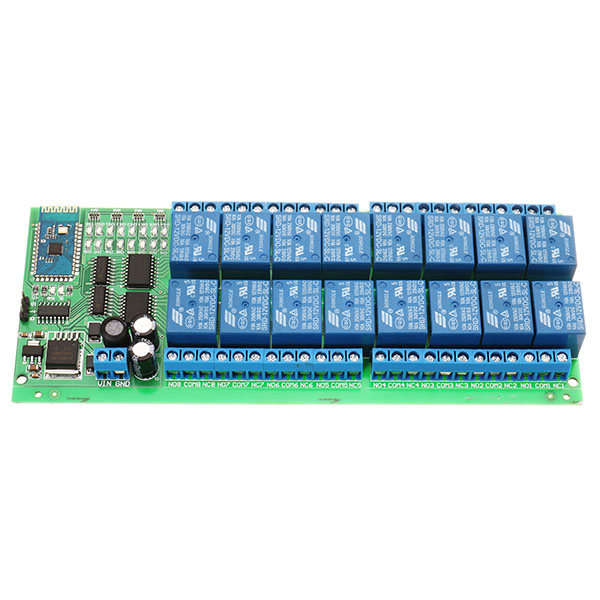

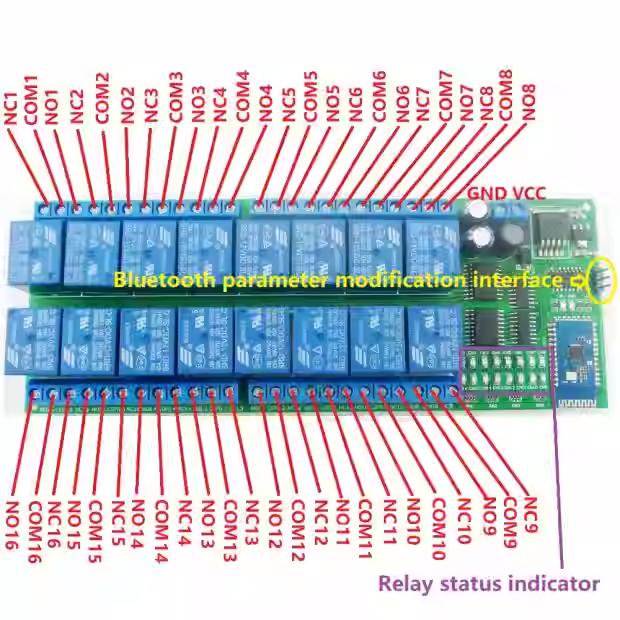

Control port: 16 switches with normally open and close functionsxa0
Control voltage: AC 85-265V 10A / DC 1-110V 10Axa0
Operating voltage: DC 12Vxa0
Remote distance: Approx. 6-10meter(Different actual circumstances has different distance)xa0
Size: Approx. 175 x 65 x 18mm / 6.88 x 2.55 x 0.7inchxa0
Quantity: 1pcxa0
Weight: 225gxa0

Note:xa0
xa0
This bluetooth Relay is ONLY suitable for Android phones with bluetooth functions, NOT suitable for iPhones.

xa0
Show More
Attribute
Value
Wireless Capability
Bluetooth
Model
BT22A16
Description



DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435DC-12V-16-Channel-bluetooth-Relay-Board-Wireless-Remote-Control-Switch-For-Android-Phones-With-bluet-1242435
