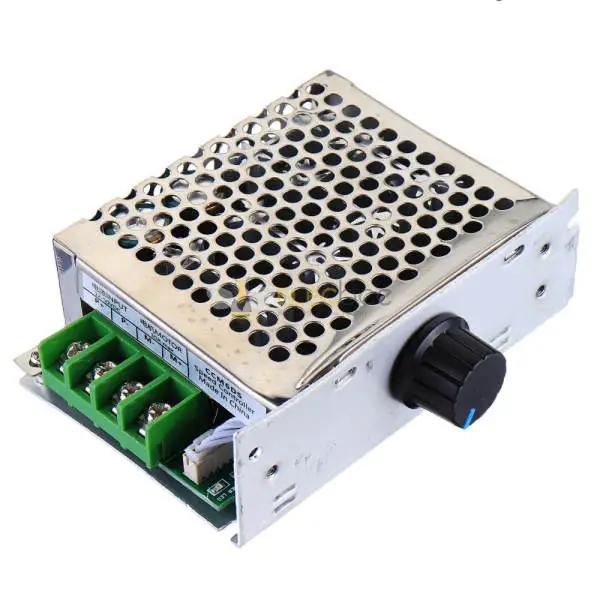

Elecbee CCM6DS PWM DC Motor Governor 12V-50V 30A Speed Control Module

SKU: EB0047173

Favorites

Key Features

Features:

Wide Voltage Adaptability: Supports DC 12V-50V input, compatible with 12V/24V/36V systems—ideal for diverse motor applications, from small pumps to industrial machinery.
Robust Power Capacity: Delivers 30A working current and a maximum 1500W power output, with recommended safe power levels (250W@12V/350W@24V/500W@48V) to ensure long-term reliability.
0%-100% Precise Speed Control: Features a B100K potentiometer (8mm mounting hole) for full-range 0%-100% speed adjustment, allowing fine-tuned control over motor performance.
Stable 21KHz PWM Technology: Equipped with 21KHz high-frequency PWM control, minimizing motor vibration and ensuring smooth, consistent speed regulation.
Durable Shell & Compact Design: Comes with a protective shell (110x76x35mm, 203g net weight) to resist dust and impacts, while its compact size simplifies installation in tight spaces.

Specifications

Show Similar Products >

Attribute

Value

Size

110x76x35

Wireless Capability

Cellular

Model

CCM6DS

Show Similar Products >

Description

Specifications:

Model: CCM6DS

Potentiometer: resistance B100K, opening 8mm

Work voltage: 12V-50VDC (wide range)

Work current: 30A

The power range: maximum 1500W, recommended 12V250W, 24V350W, 48V500W use.

Speed range: 0% -100%

The product frequency: 21KHz

Size:110x76x35mm

Net weight: 203g

Warmly Noted:

1. DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt.

2. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.

3. The motor can be divided into positive and negative poles. When the running direction is inconsistent with the desired direction, the direction can be changed by adjusting the thread

4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
