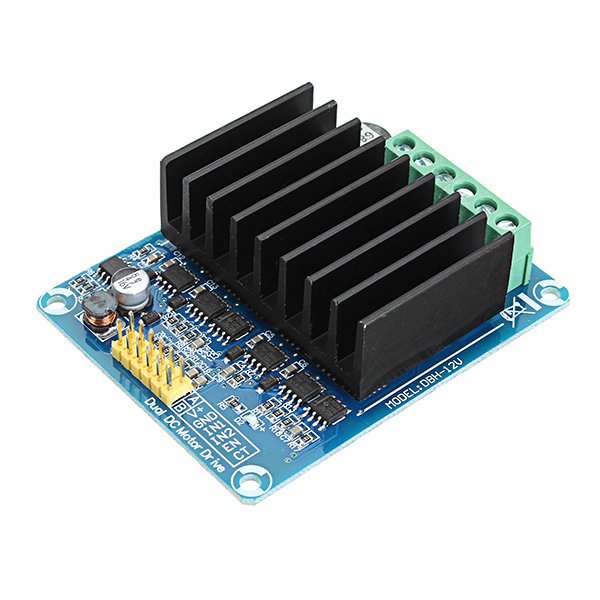

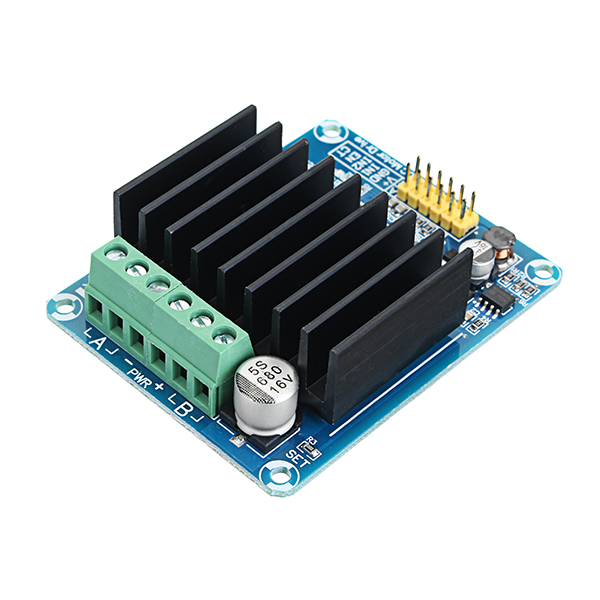

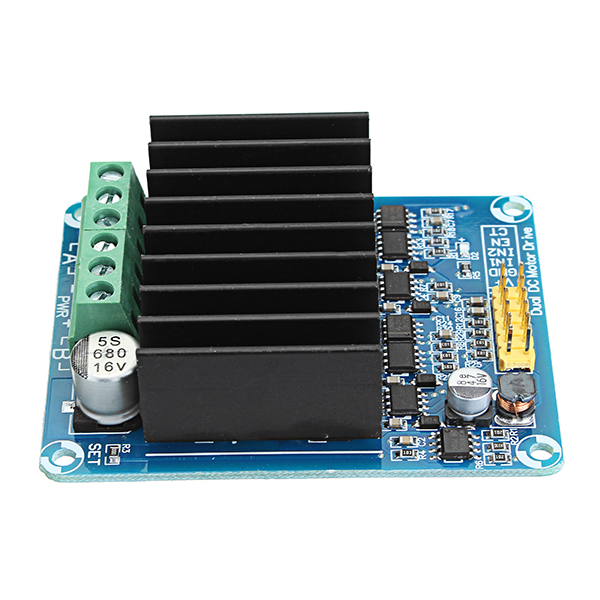

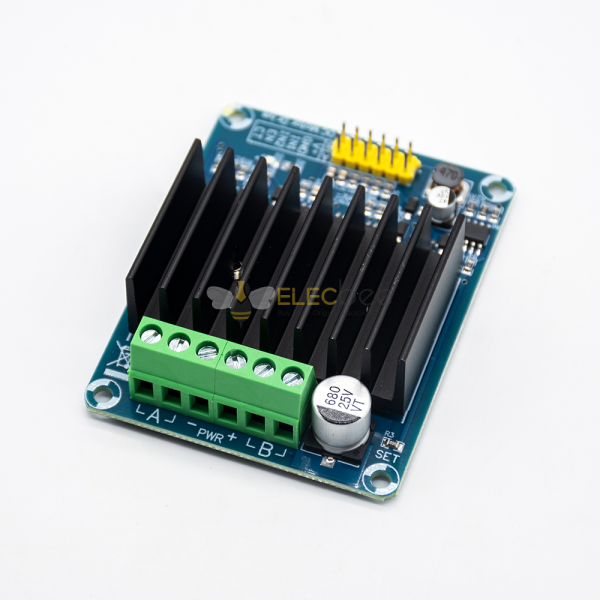

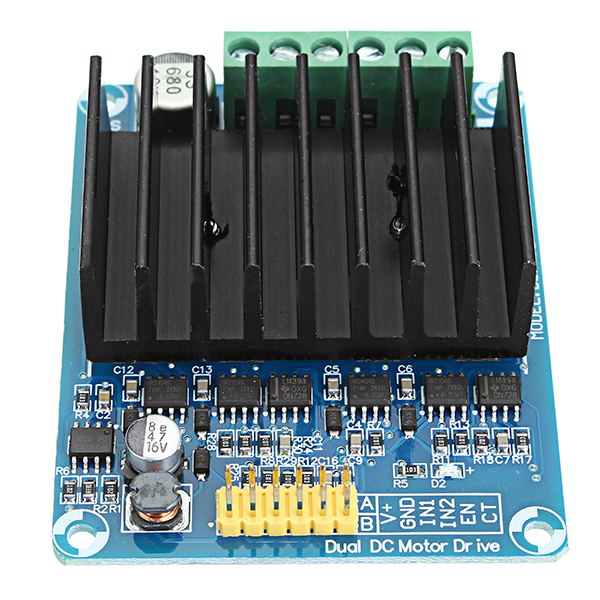

Elecbee DC5-12V 0A-30A Dual Channel H Bridge Motor Driver Board Module Robot Stepper Driver Controller Board Module for Coreless Motor for Toy Cars DC Motors

SKU: EB0048688

Favorites

Key Features

Can be used to control ordinary DC motor, smart car motor, etc.

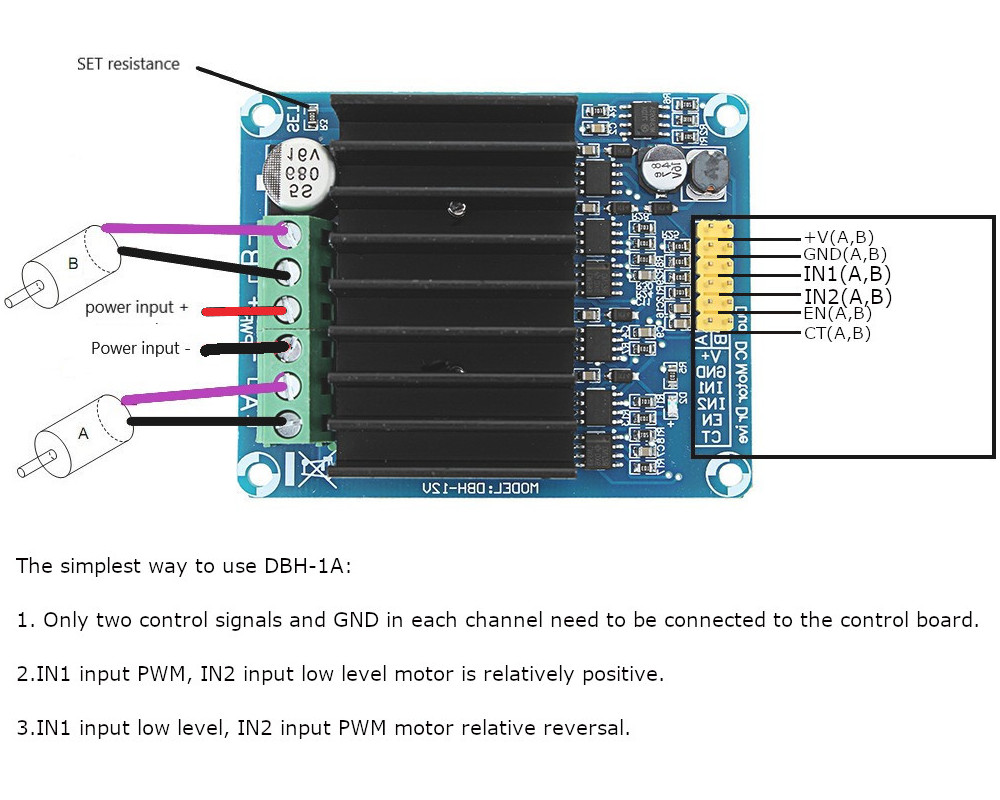

Reversible control and PWM speed control.
High speed switch design.
Ultra low internal resistance, low heat.
Operating voltage: DC 5-12V; operating current: 0A-30A(Max)/each channel.

Specifications:

Operating Voltage: DC 5-12V
Standby Current: <30mA±5mA
Current: 0A-30A(Max)/each channel
PWM Mode: Duty Cycle: 0-98%; Frequency: General Motors: 16kHz; Coreless Motor: 80kHz; TEC: 500Hz-80kHz
Input Voltage Level: Low:0-0.5V; High: 2.5V-13V(typical drive level: 3.3V, 5V, 12V)
Current Sampling: CT Pin Output Voltage(V)=Current(A) x 0.155
Item Size: 6.2 x 5.3 x 1.8cm / 2.44 x 2.08 x 0.71inch

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

DC5

Show Similar Products >

Description

Description:

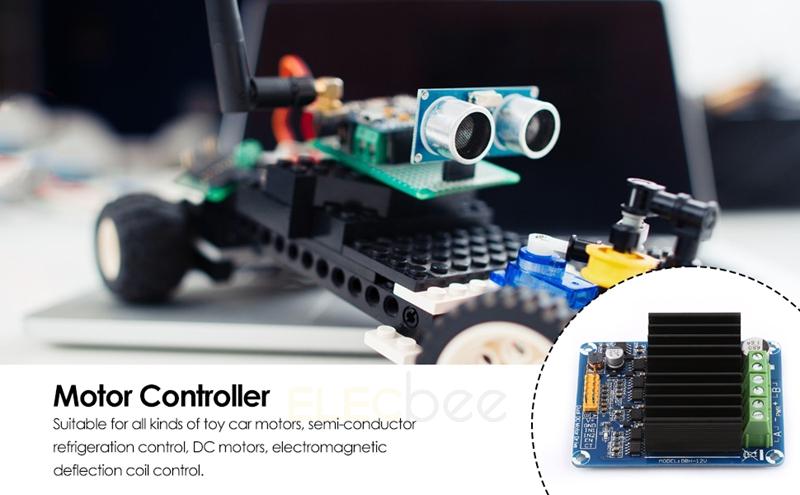

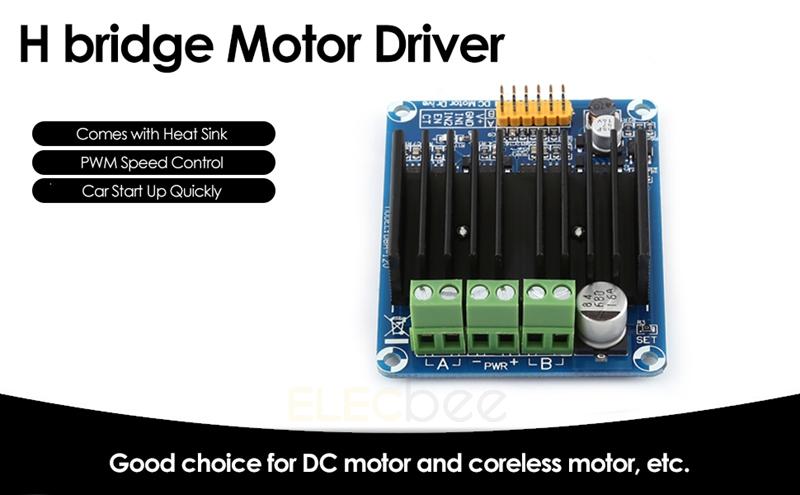

This module is a motor control module which can be used to control ordinary DC motor, smart car motor, etc. Compact size, light weight.
Can be used to control ordinary DC motor, smart car motor, etc.
Reversible control and PWM speed control.

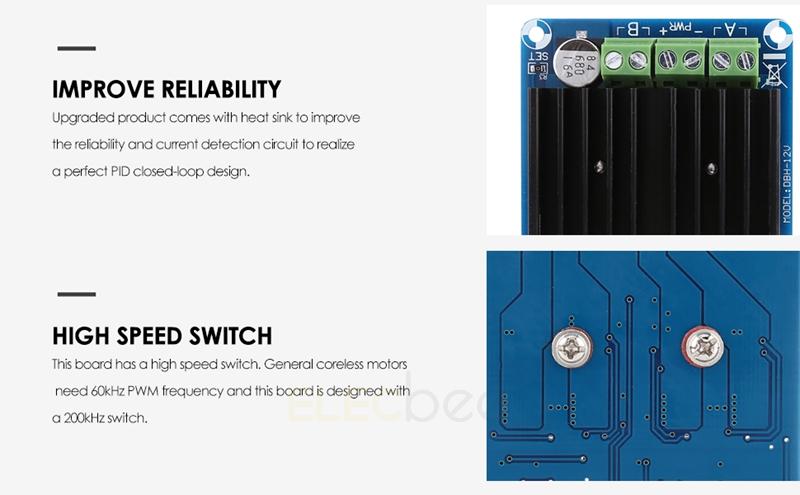

High speed switch design.
Ultra low internal resistance, low heat.
Operating voltage: DC 5-12V; operating current: 0A-30A(Max)/each channel.

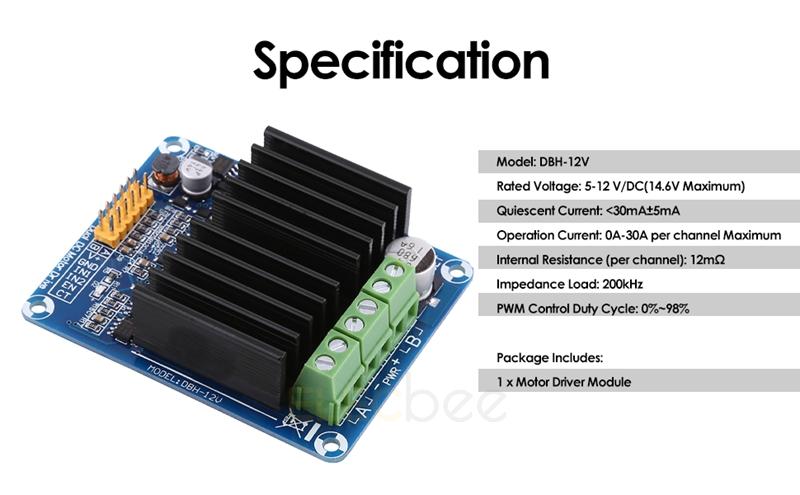

Specifications:

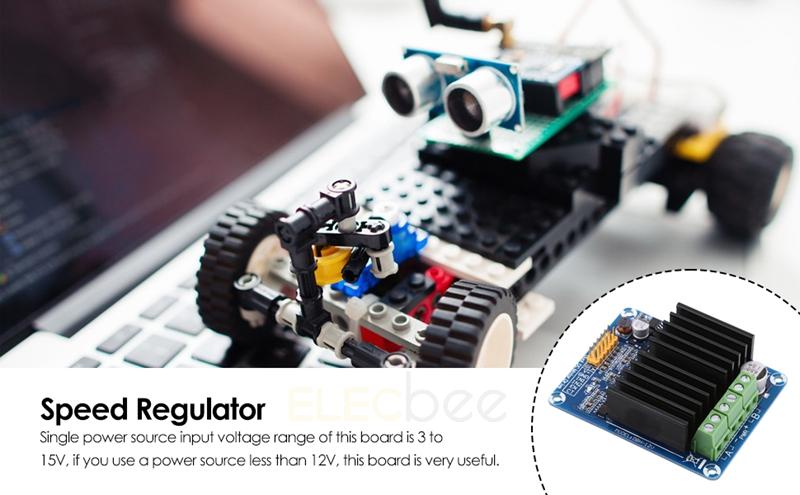

Operating Voltage: DC 5-12V
Standby Current: <30mA±5mA
Current: 0A-30A(Max)/each channel
PWM Mode: Duty Cycle: 0-98%; Frequency: General Motors: 16kHz; Coreless Motor: 80kHz; TEC: 500Hz-80kHz
Input Voltage Level: Low:0-0.5V; High: 2.5V-13V(typical drive level: 3.3V, 5V, 12V)
Current Sampling: CT Pin Output Voltage(V)=Current(A) x 0.155
Item Size: 6.2 x 5.3 x 1.8cm / 2.44 x 2.08 x 0.71inch

Package includes:

1 x DC 5-12V 30A dual channel motor control module

DC-5-12V-30A-PWM-Dual-Channel-Motor-Control-Module-H-Bridge-Motor-Drive-Controller-Board-DHB-1A-Reve-1255703
