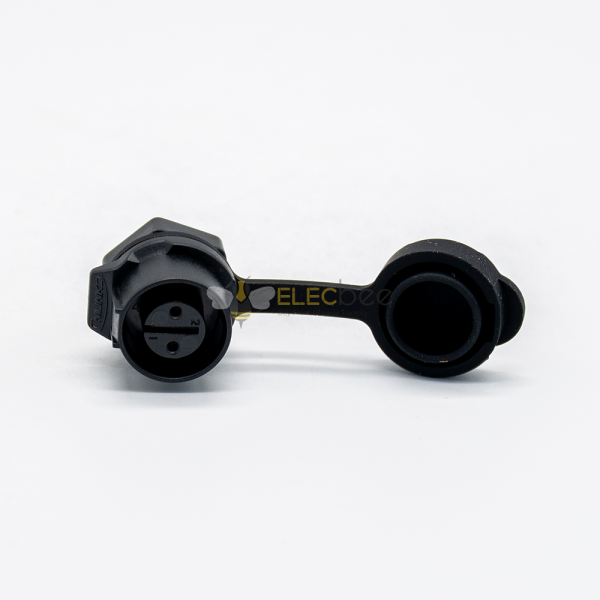

Elecbee LP-12 Series 2-Pin Female Socket IP67 Waterproof Power Connector Panel Mount

SKU: EB-113-0004
Favorites
Key Features
  • IP67 waterproof rating for reliable outdoor use.
  • 2-pin female socket with gold-plated contacts.
  • Panel mount design for secure and easy installation.
  • Compatible with RJ45, 8P8C, ideal for networking.
Show More
Description

Extra Information

Brand:
Linko Electric
Number of pins:
2
Rated current:
5A
Operating voltage (AC):
125V
Withstand voltage (AC) 1min:
1500V
Contact resistance:
Contact dimension:
Phi 1.0x2
Insertion and extraction force:
0.6N Max.
Mating cycle:
1700 times
Temperature and humidity:
-40~80C, 40C, 85%RH.
Screw torque:
42-53 (N.m)
Wire specification:
UL2464 24AWG*2C
Protection level:
IP67
Diameter range:
3~6mm
Connecting mode:
Easy locking type
Method of connecting cable:
Solder
