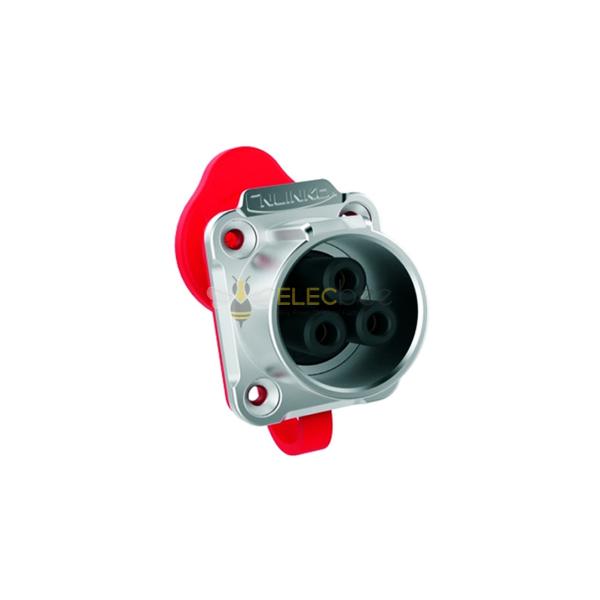

Elecbee LP-24 Series 3-Pin Female Socket IP67 Waterproof Power Connector Panel Mount

SKU: EB-114-0001
Favorites
Key Features
  • IP67 waterproof rating for reliable outdoor use.
  • 3-pin female socket with durable panel mount design.
  • Compatible with YC8 series aviation connectors.
  • Solder cup terminals ensure secure wire connections.
  • Reverse mount design saves space and improves layout.
Show More
Description

Extra Information

Brand:
Linko Electric
Rated current:
25A
Operating voltage:
500V
Number of pins:
3
Insertion and extraction force:
4.5N Max
Withstanding voltage:
2500V
Contact diameter:
Phi 3.0x3
Temperature and humidity:
-40~+80C; 40C, 85%RH
Mating cycle:
1700 times
Screw torque:
42-53 (N·m)
Contact resistance:
Protection level:
IP67
