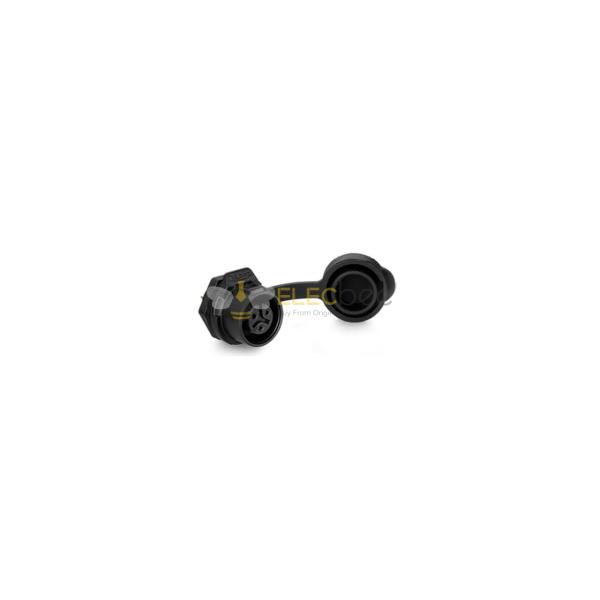

Elecbee LP-12 Series 3-Pin Female Socket IP67 Waterproof Power Connector Panel Mount

SKU: EB-113-0007
Favorites
Key Features
  • IP67 waterproof rating for durable outdoor use.
  • 3-pin female socket with secure power connection.
  • 2.54 mm pitch fits standard ribbon cables easily.
  • Includes 20CM wire IDC for quick installation.
  • Panel mount design ensures stable integration.
Show More
Description

Extra Information

Brand:
Linko Electric
Rated current:
5A
Number of pins:
3
Withstand voltage (AC) 1min:
1500V
Operating voltage (AC):
125V
Contact resistance:
Insertion and extraction force:
0.9N Max
Mating cycle:
1700 times
Contact dimension:
Phi 1.0x3
Temperature and humidity:
-40~80C, 40C, 85%RH
Screw torque:
42-53 (N.m)
Protection level:
IP67
Connecting mode:
Easy locking type
Wire specification:
UL2464 24AWG*2C
Diameter range:
3~6mm
Method of connecting cable:
Solder
