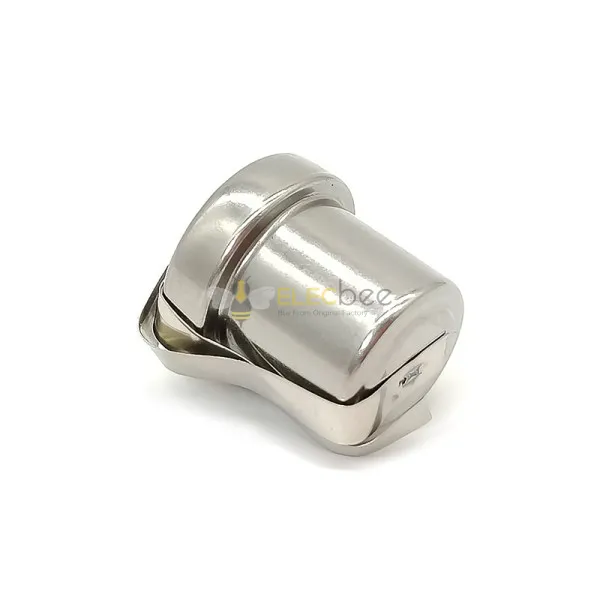

Elecbee ME2-CO-Ф14x14 Carbon Monoxide Gas Sensor CO Sensor 0~1000 ppm Carbon Monoxide Detector CO Alarms

SKU: EB0043547
Favorites
Key Features
Show More
Datasheet
Attribute
Value
Wireless Capability
Bluetooth
Model
ME2
Description

>>>Manual: Click here to open<<<

Principle Introduction:
Winsen Electronics, produces Carbon monoxide sensor|CO gas sensor, with low cost and fuel cell working principle.
ME2-CO-Ф14x14, fuel cell type sensor, detects gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Applications :
Widely used in civilian area to detect CO concentration.
Technical Parameters :
ItemParameter
Detection gasCO
Measurement Range0~1000ppm
Max detecting concentration2000ppm
Sensitivity(3.6~9)nA/ppm
Resolution ratio1ppm
Response time(T90)≤30S
Load resistance(recommend)1000Ω
Repeatability<3﹪output value
Stability(/month)<10﹪
Output Linearitylinear
Zero drift(-20℃~40℃)≤10ppm
Storage temperature-20℃~50℃
Storage Humidity15%~ 90%RH
Pressure range(kPa)normal atmosphere ±10%
1 x ME2-CO-Ф14x14 Carbon Monoxide Gas Sensor CO Sensor 0~1000 ppm
