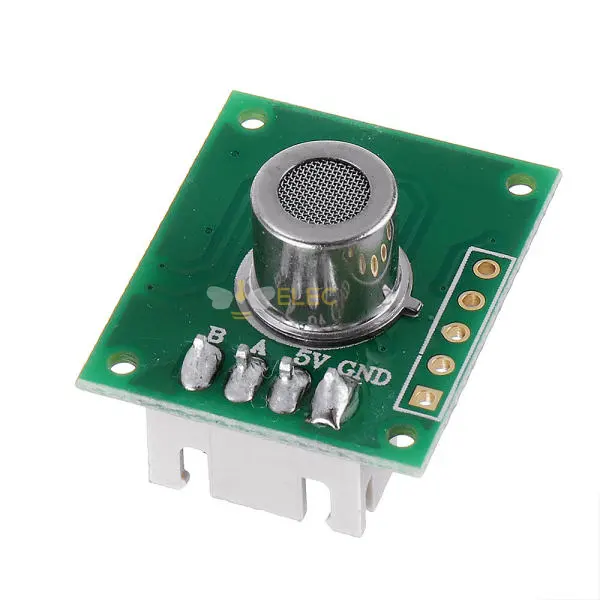

Elecbee ZP01-MP503 Air-Quality Monitoring Module Formaldehyde Benzene Carbon Monoxide Hydrogen Alcohol Ammonia Smoke Essence for Air Cleaner Air Quality Monitor

SKU: EB0043465

Favorites

Key Features

Datasheet

EB0043465

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

ZP01

Show Similar Products >

Description

>>>Manual: Click here to open<<<

Principle Introduction:

ZP01-MP503 air-quality module adopts flat surface semiconductor gas sensor. The module has very high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Applications :

Air cleaner, fresh-air system, intelligent integrated ceiling, air quality monitor, ventilator, air-condition.

Technical Parameters :

Sensor	Air quality sensor
Target Gas	formaldehyde, benzene, carbon monoxide, hydrogen,alcohol, ammonia, smoke , essence &etc.
Physical Interface	XH2.54-4P terminal sockets
Output Data	0－3 grade pollution signal
Working Voltage	5.0±0.2V DC (No voltage reverse connect protection)
Output Data	TTL level (200ohm protected resistance inside)
Working Current	≤60mA
Warm Up Time	≤3 min
Response Time	≤20s
RecoveryTime	≤60s
OperatingTemperature	0～50℃
OperatingHumidity	≤95％RH
StorageTemperature	－20～60℃
Storage Humidity	≤60％RH
Size	24×20×15mm（L×W×H）
Weight	≤ 20g
Sensitivity Attenuator	≤1%/year

Package Inlcuded:

1 x ZP01-MP503 Air-Quality Monitoring Module
