Elecbee RC522 RFID RF IC Card Sensor Module Writer Reader IC Card Wireless Module

SKU: EB0042216
Favorites
Key Features
Product Features:

Environmental working temperature: -20-80 degrees Celsius
Environmental storage temperature: -40-85 degrees Celsius
Relative humidity: 5%-95% relative humidity
Data transmission rate: up to 10Mbit/s


Show More
Attribute
Value
Wireless Capability
Bluetooth
Wi‑Fi Standard
802.11B/G/N
Model
RC522
Description
Overview:

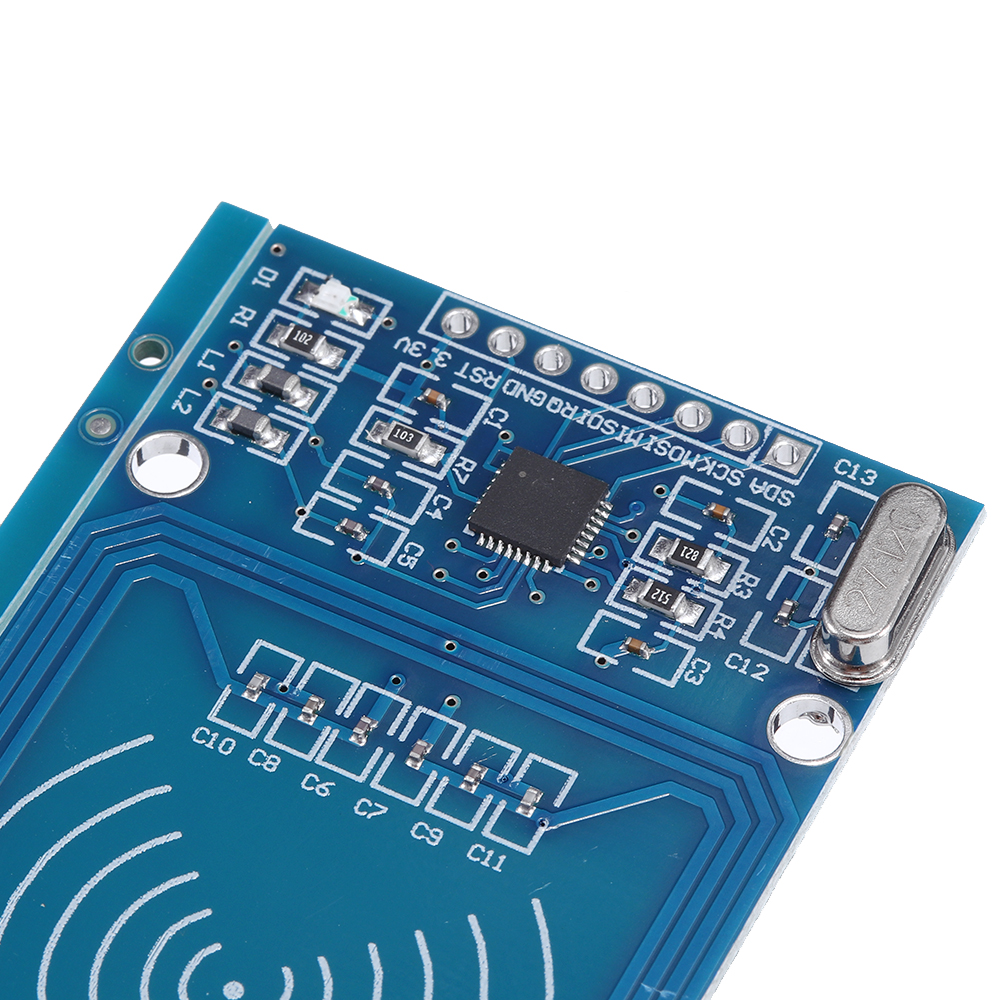

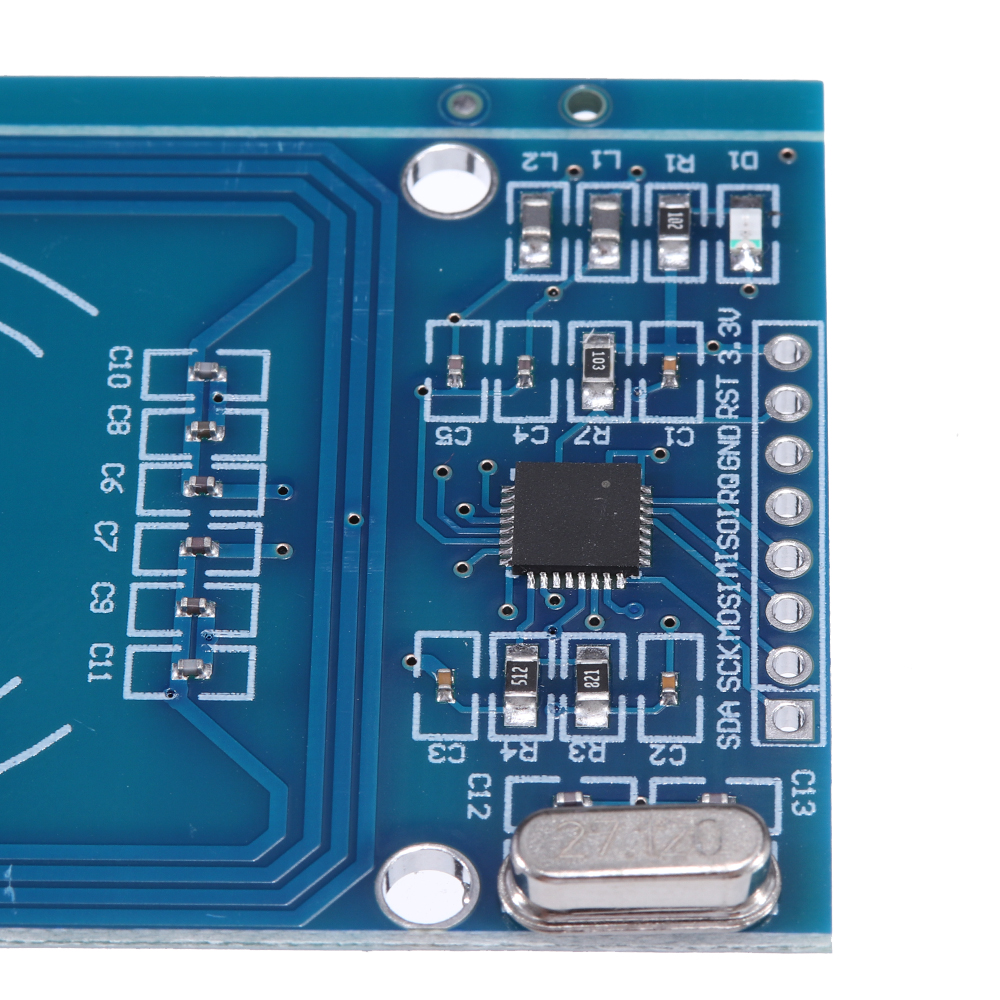

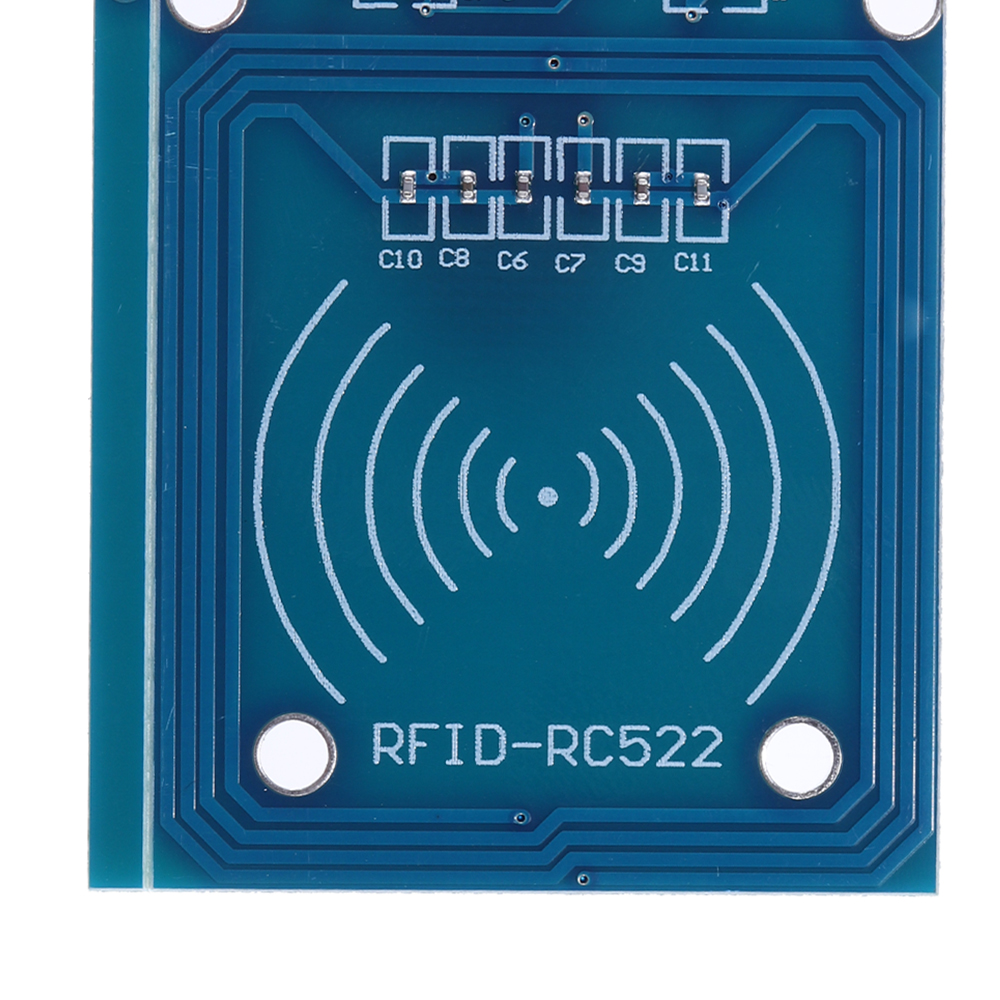

The  RC522  module adopts the  RC522  original chip design card reader circuit, which is easy to use and low in cost. It is suitable for users of advanced applications such as device development and card reader development, and users who need to design/produce RF card terminals. This module can be directly loaded into various reader molds. The module adopts a voltage of 3.3V, and can be directly connected with any CPU motherboard of the user through a few lines of the SPI interface, which can ensure stable and reliable operation of the module and long reading distance;

Specifications:

Working current: 13-26mA/DC 3.3V
Idle current: 10-13mA / DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Working frequency: 13.56MHz

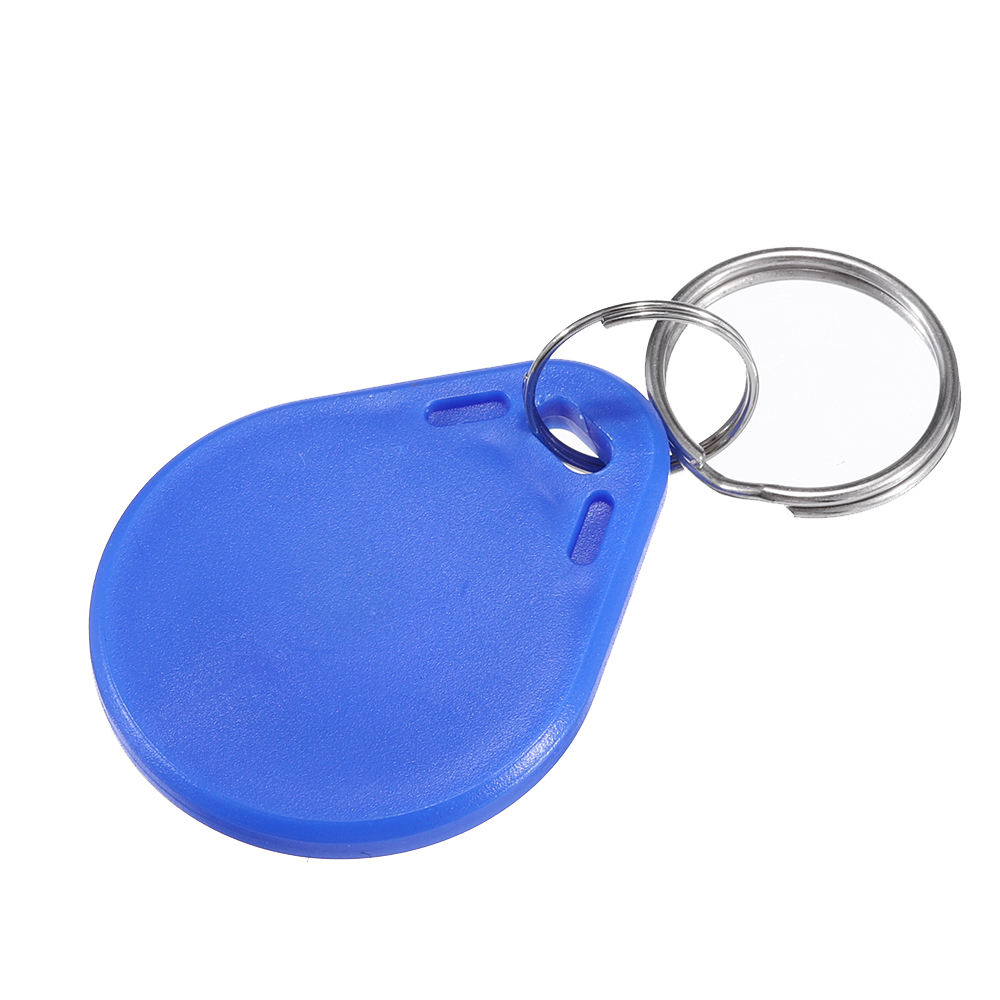

Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
Product physical size: 40mm × 60mm

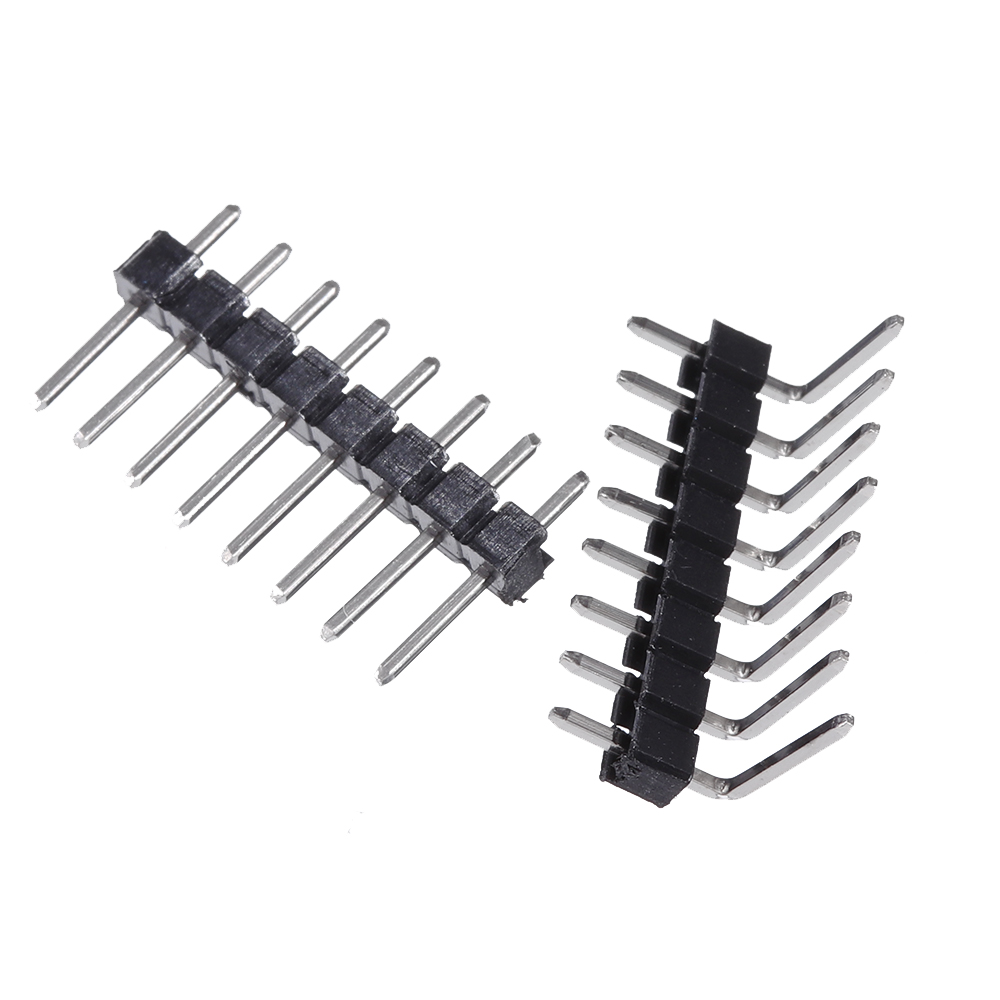

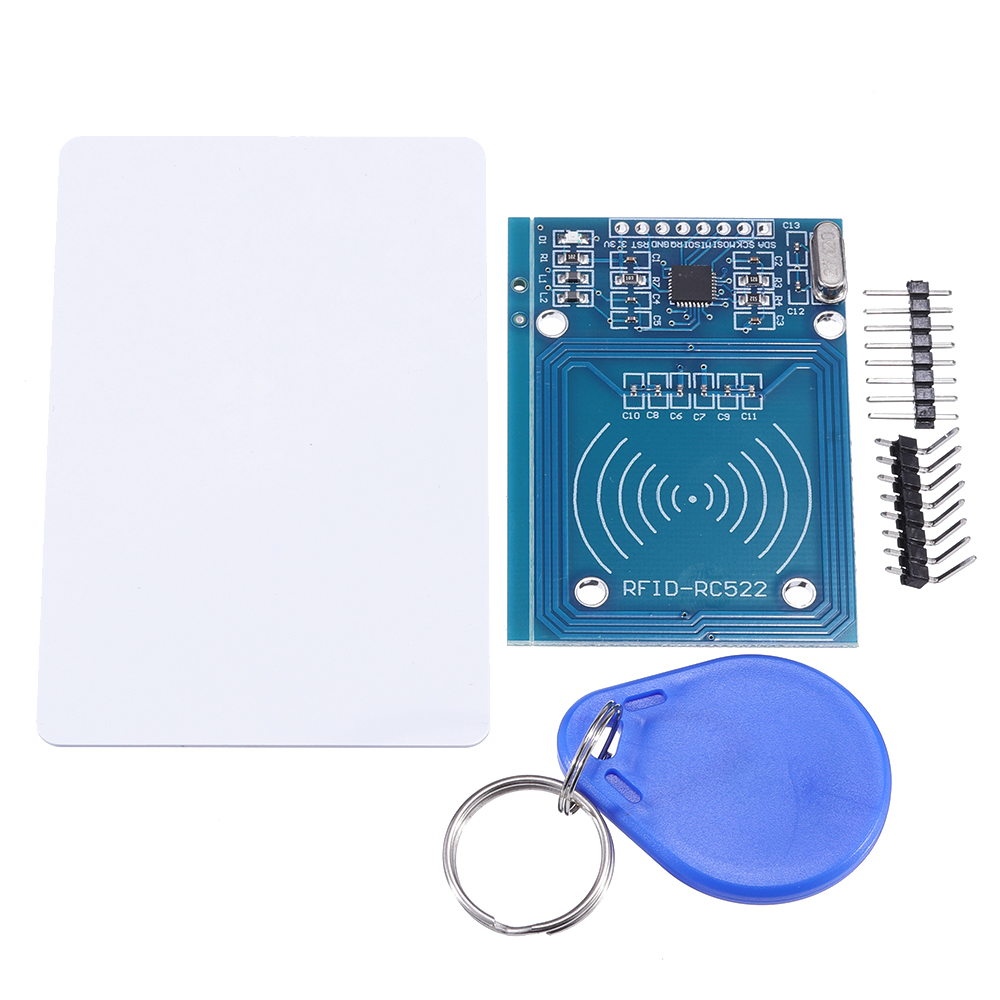

Package includes:

1 x  RC522  RFID Card Sensor Module Writer Reader IC Card




RC522-RFID-RF-IC-Card-Sensor-Module-Writer-Reader-IC-Card-Wireless-Module-1460338

RC522-RFID-RF-IC-Card-Sensor-Module-Writer-Reader-IC-Card-Wireless-Module-1460338

RC522-RFID-RF-IC-Card-Sensor-Module-Writer-Reader-IC-Card-Wireless-Module-1460338

RC522-RFID-RF-IC-Card-Sensor-Module-Writer-Reader-IC-Card-Wireless-Module-1460338

RC522-RFID-RF-IC-Card-Sensor-Module-Writer-Reader-IC-Card-Wireless-Module-1460338

RC522-RFID-RF-IC-Card-Sensor-Module-Writer-Reader-IC-Card-Wireless-Module-1460338
