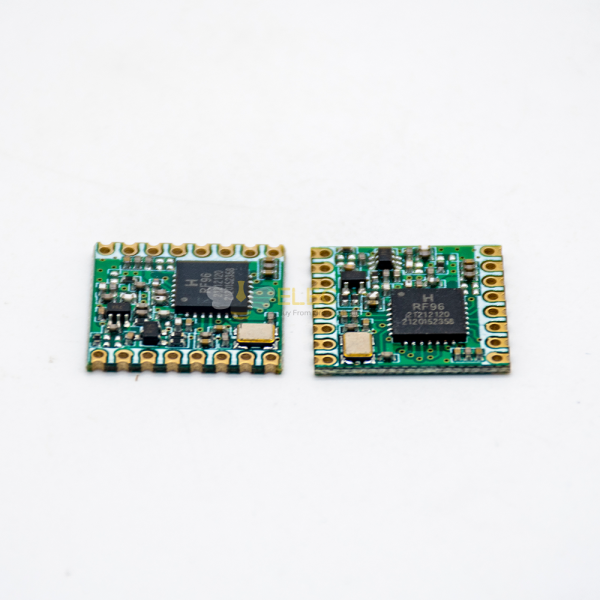

Elecbee RFM96 RFM96W 433MHz Low Power Wireless Transceiver Module LORA-TM 20dBm

SKU: EB0042314
Favorites
Key Features
xa0
● Programmable rate up to 300kbps
●High sensitivity: minimum -148 dBm
● Bulletproof front end: IIP3=-12.5dBm
● Strong anti-interference
● Low receiving current: 10.3 mA, in the state of register saving: 200 nA
● Highly integrated synthesizer with resolution of 61Hz
●FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation modes
● Built-in bit synchronization device for clock recovery
●Preamble detection
●127dB dynamic range RSSI
●Automatic RF detection and CAD, ultra fast AFC
● Packet BUFFER up to 256BYTE, comes with CRC
● Built-in temperature sensing and low battery detection indication
xa0
Paclage Included:
xa0
1 x RFM96 RFM96W 433MHz Low Power Wireless Transceiver Module







Show More
Attribute
Value
Wireless Capability
LoRa
Wi‑Fi Standard
802.11B/G/N
Model
RFM96
Description
More document click to download: RFM96

Specifications:

Working frequency: 433MHz
Modulation mode: LoRa/FSK/GFSK/00K
Transmit power: 20dBm
Receiving sensitivity: -148dBm(AT)FSK
Transmission rate: 1.2K~300Kbps(AT)FSK
0.018K~37.5Kbps(AT)LoRa
Emission current: 120mA(AT)20dBm
Receiving current: 10.3mA
Standby current: 0.2uA
Data interface: SPI interface
Communication distance: >8000m (AT)LoRa
Antenna resistance: 50 Ohm
Operation temperature: -20 ~ 70 °C
Power: DC 1.8V ~ 3.7V
Size: 16 x 16mm
