User manual: https://img.elecbee.com/ic/download/pdf/20171129031738SKU561913.pdf
Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Specifications:

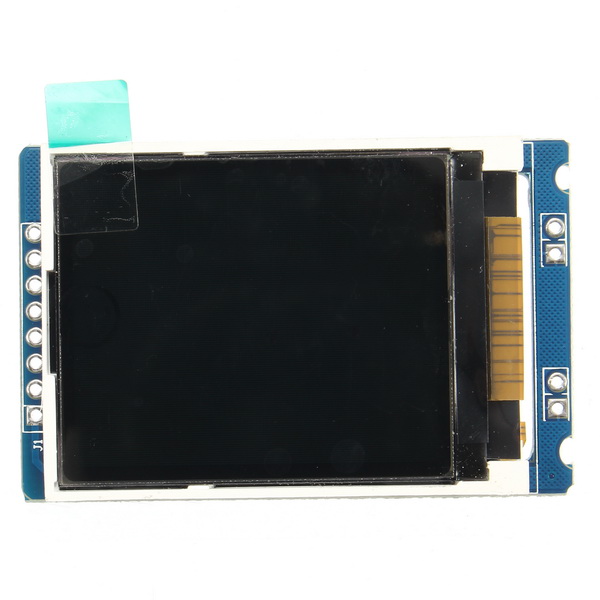

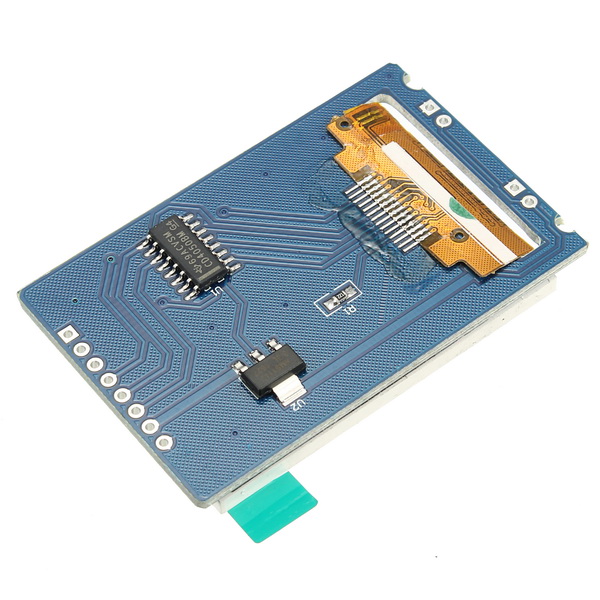

Display: 160*128 LCD
Power Supply: 1 * 9V Battery(not included); DC 6.8-12V
Current: Approx. 30mA
Power Supply: 1 * 9V Battery(NOT Included)
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.01Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Screen Size: 3.7 * 3cm / 1.45 * 1.18in

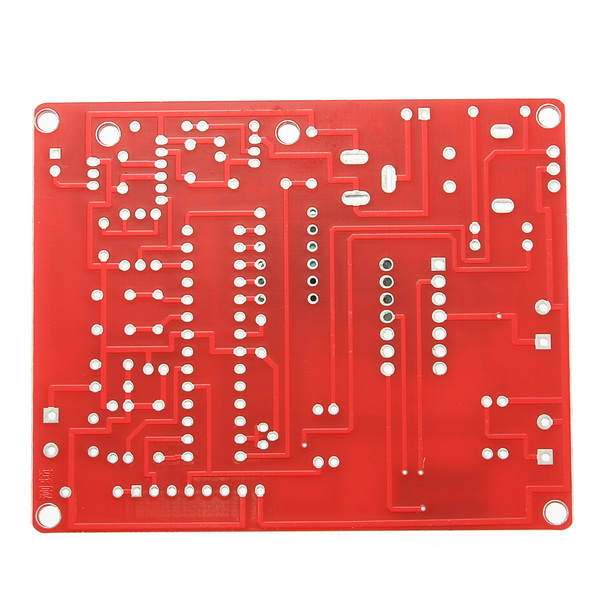

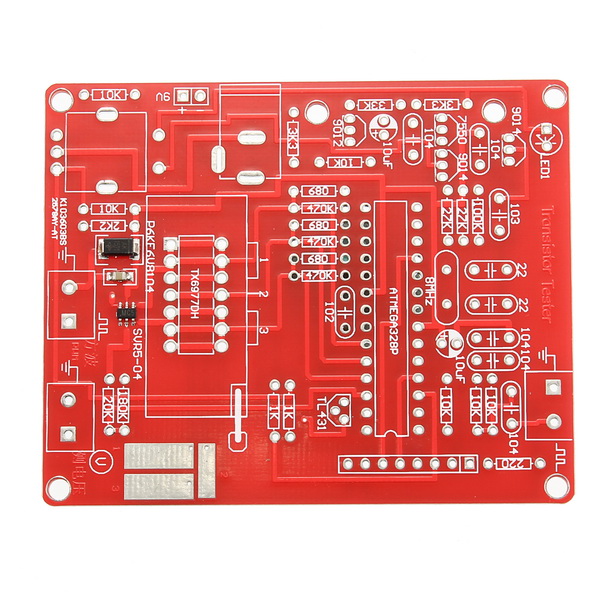

PCB Size: 7.8 * 6.2cm / 3.1 * 2.44in
Product Weight: 66g / 2.3oz
Case Material: Acrylic
Case Size: Approx. 96 * 82 * 28mm / 3. 8 * 3.2 * 1.1in (L * W * H)
Package Size: Approx. 13 * 8.5 * 3.8cm / 5.12 * 3.35 * 1.5in
Package Weight: 147g / 5.2oz

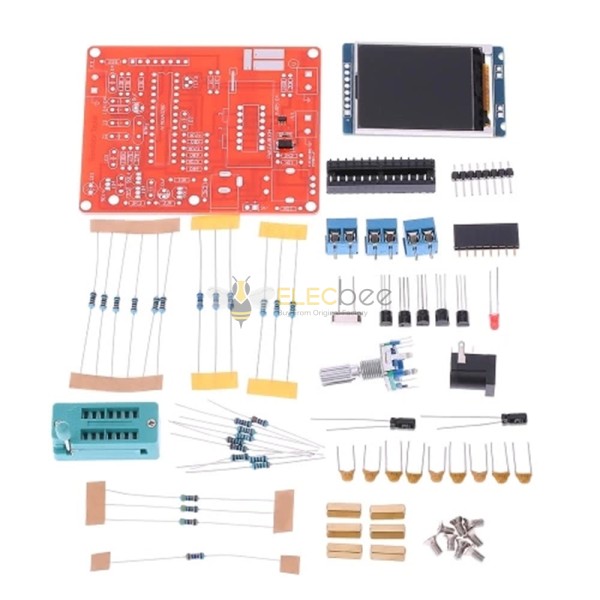

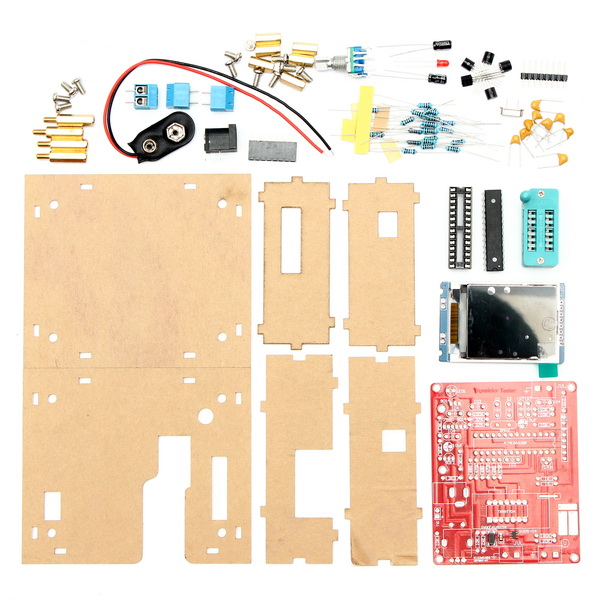

Package List:
1 * DIY Transistor Tester
1 * DIY Acrylic Case
