JOYSTICK, we have two types of JOYSTICKs one is build 0n a panle compatible with FACES Kit, this is the M5Unit version of JOYSTICK

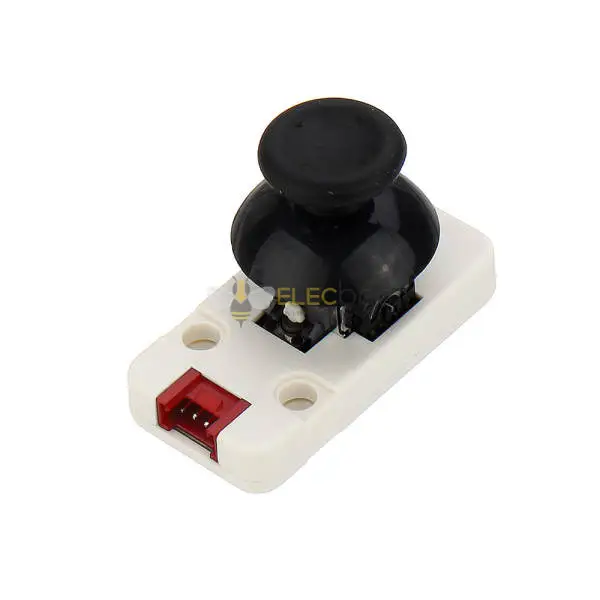

JOYSTICK is very similar to the 'analog' joystick on PS2 (Play Stati0n 2) controllers. The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. The joystick also has a push button that could be used for special applications. Therefore, the entire Unit can output X-Y motion signals in both directions and Z direction.
As designed in the schematic, the Joystick X dimension is connected to pin A0 of MEGA328, the Joystick Y dimension is connected to pin A1 on MEGA328, the Joystick Z dimension is connected to pin A2 on MEGA328.
This Unit communicates with the M5Core via the GROVE A interface. It's I2C address is 0x52. By reading the data transferred from JOSTICK, you can obtain the motion information of JOYSTICK.
Package includes:
Offical Video: https://www.youtube.com/channel/UCozgFVglWYQXbvTmGyS739w
Forum: http://forum.m5stack.com/
Mega328 ISPDownload interface Pin foot definition
The code below is incomplete(just for usage).To get complete code, please click here: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/Unit/JOYSTICK/.
To get complete code, please click here: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/Unit/JOYSTICK/UIFlow.
| M5Core(GROVE A) | GPIO22 | GPIO21 | 5V |
