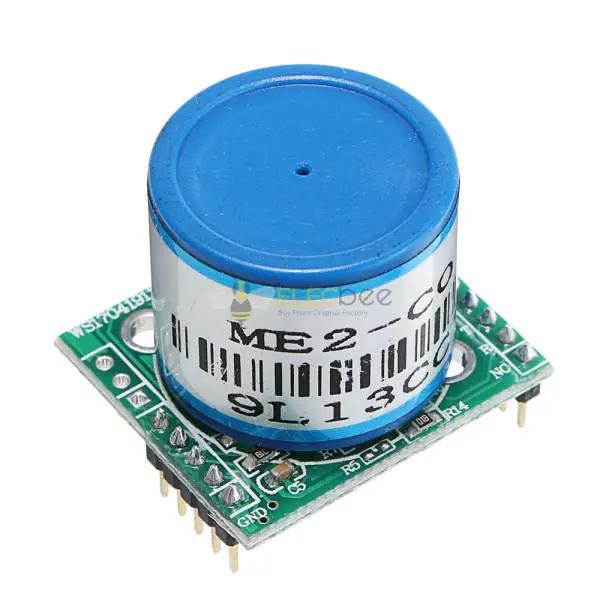

Elecbee ZE07 Carbon Monoxide CO Sensor Module High Precision Gas Sensor Detecting Carbon Monoxide Serial Port Output

SKU: EB0046772

Favorites

Key Features

xa0

High sensitivity, high resolution, low power consumption and long service life

Provide UART, analog voltage signal, PWM waveform and other output methods

High stability, excellent anti-interference ability, temperature compensation, excellent linear output

xa0

Application:

xa0

xa0Portable instruments, air quality monitoring equipment, fresh air ventilation systems, smart home equipment and other places.

xa0

Specification:

xa0

Detection gas: carbon monoxide

Interference gas: gas such as alcohol

Output data: DAC (0.4~2V voltage signal corresponding; concentration: 0~ full scale); UART output (3V level)

Working voltage: 5V ~ 12V (no voltage reverse connection protection)

Warm-up time: ≤ 3 minutes

Response time: ≤60 seconds

Recovery time: ≤60 seconds

Range: 0 ~ 500ppm

Resolution: 0.1ppm

Working temperature: -10 ° C ~ 55 ° C

Working humidity: 15% RH-90% RH (no condensation)

Storage temperature : -10 ° C ~ 55 ° C

xa0

Specifications

Show Similar Products >

Attribute

Value

Model

ZE07

Show Similar Products >

Description

Overview:

ZE07-CO electrochemical carbon monoxide module is a general-purpose, small modification module. The electrochemical principle is used to detect the CO present in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; digital output and analog voltage output for easy use. ZE07-CO is a universal gas module designed and manufactured by combining electrochemical detection technology with sophisticated circuit design.

1 x ZE07 Carbon Monoxide CO Sensor Module
