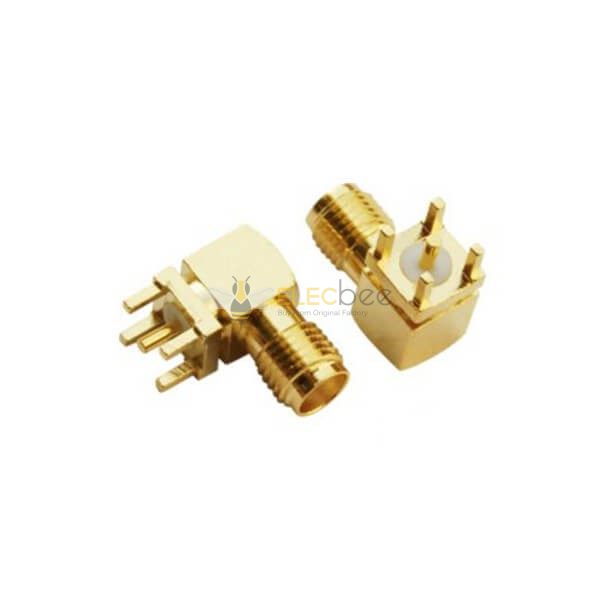

Elecbee RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount

SKU: EB-007-0001

Favorites

Key Features

Thru Hole,Pcb Mount, Jack/female, Angled/90°, 50Ω;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

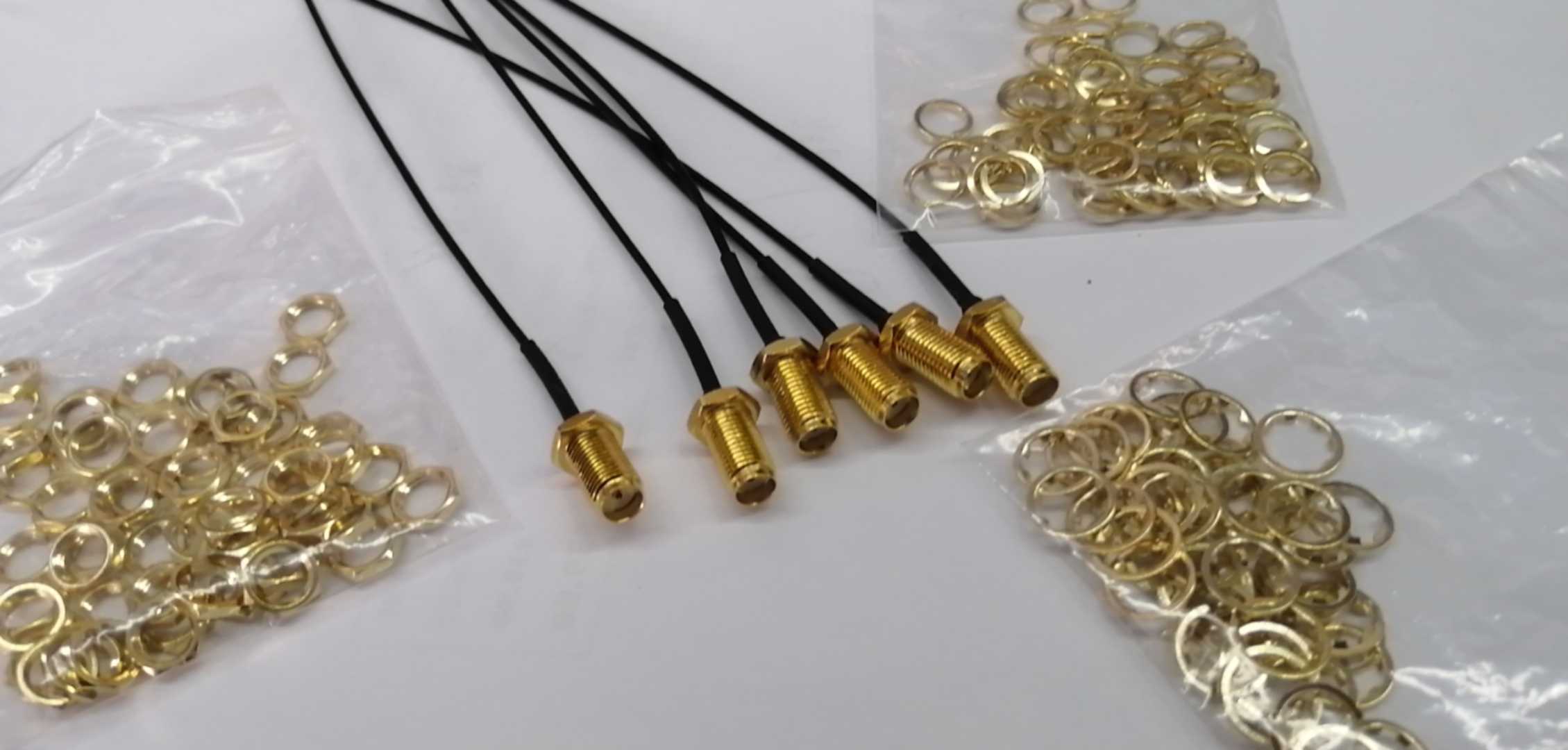

I****n

The item is corresponded with it is shown at website. And also has good quality.

J****n

Perfect for my GPS module on a tight PCB layout. The 90° right-angle design saves space and soldering was smooth. Good impedance match at 50Ω, and signal loss is minimal up to 6GHz.

F****n

Solid build quality with gold-plated brass body and Teflon insulator. Performs well in my WiMAX test setup. Slight variance in VSWR at higher frequencies but still within spec.

C****g

Exactly as described – straight from the OEM factory but priced way better. Used in a vehicle tracking prototype and handles vibration well. 30-day return policy gives peace of mind.

C****r

Works fine for low-power RF applications. Soldered cleanly onto PCB, though the thru-hole pins required careful alignment. Not ideal for high-density boards due to size.

I****m

Impressed by the low reflection performance up to 18GHz. Great for high-frequency testing. The coupling nut holds securely, and durability seems excellent after repeated mating.
