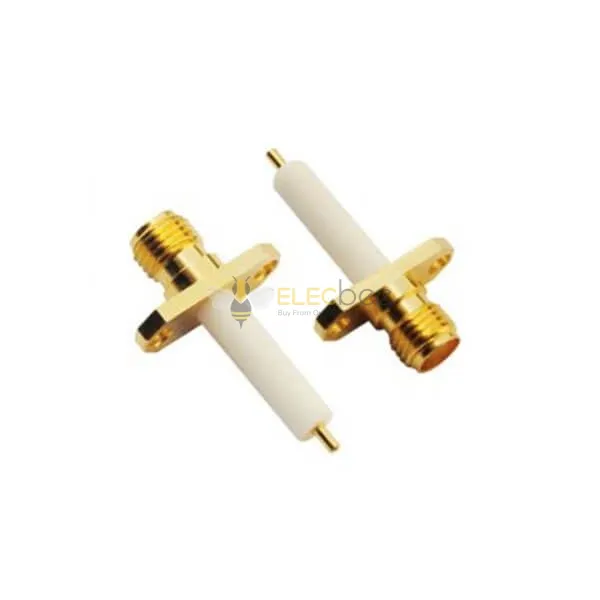

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0014

Favorites

Key Features

Panel Mount, Jack/female, Straight/180°, 50Ω,Flange;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

14%

4 stars

5 stars

71%

K****y

These connectors are well made and worked perfectly for my RF application. I highly recommend this product.

w****s

Make sure the type of connector you need is included in the package.

m****r

Perfect for my RF project. The SMA jack fits neatly on the PCB, and the 50Ω impedance ensures clean signal up to 6 GHz. Soldering was easy thanks to the gold-plated contacts.

N****n

Great coaxial connector for the price. The brass body and teflon insulator feel durable. I wish the packaging was a bit more protective though — one unit had minor scuffing.

C****o

Used in a GPS tracking prototype. The straight 180° mount saves space on the board, and the thread coupling locks securely. Excellent performance even at high frequencies.

A****v

Solid build and good specs, but requires steady hands to solder. Not ideal for beginners. Works well once installed, though — low VSWR as advertised.

F****t

Exactly what I needed for a WiMAX module. OEM quality with reliable shielding and consistent 50 ohm impedance. And the 30-day return policy gave me peace of mind.
