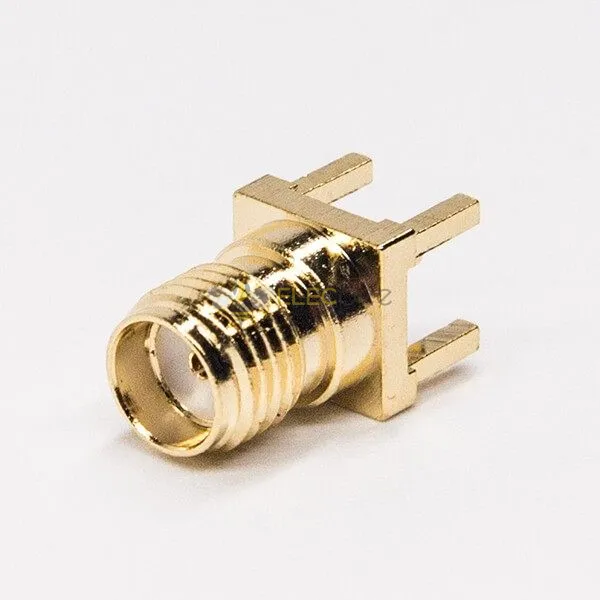

商品图

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0008
Favorites
Key Features
  • Pcb Mount, Jack/female, Straight/180°, 50Ωxa0;
  • Excellent electrical performance up to 18GHz with low reflection;
  • Thread type coupling mechanism ensure small loss and high security in compact design;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Technology: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
26.5 GHz
Connector Series
SMA
Color
Yellow
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Phosphor Bronze
Contact Finish
Gold Plated
Insulating Materials
PTFE
Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
11%
4 stars
11%
5 stars
78%
D****e
Made well, connectors are pretty good and reinforced. Good for antenna or radio side.
review-image
J****n
Well made and a bargain!
review-image
R****e
Good quality connectors

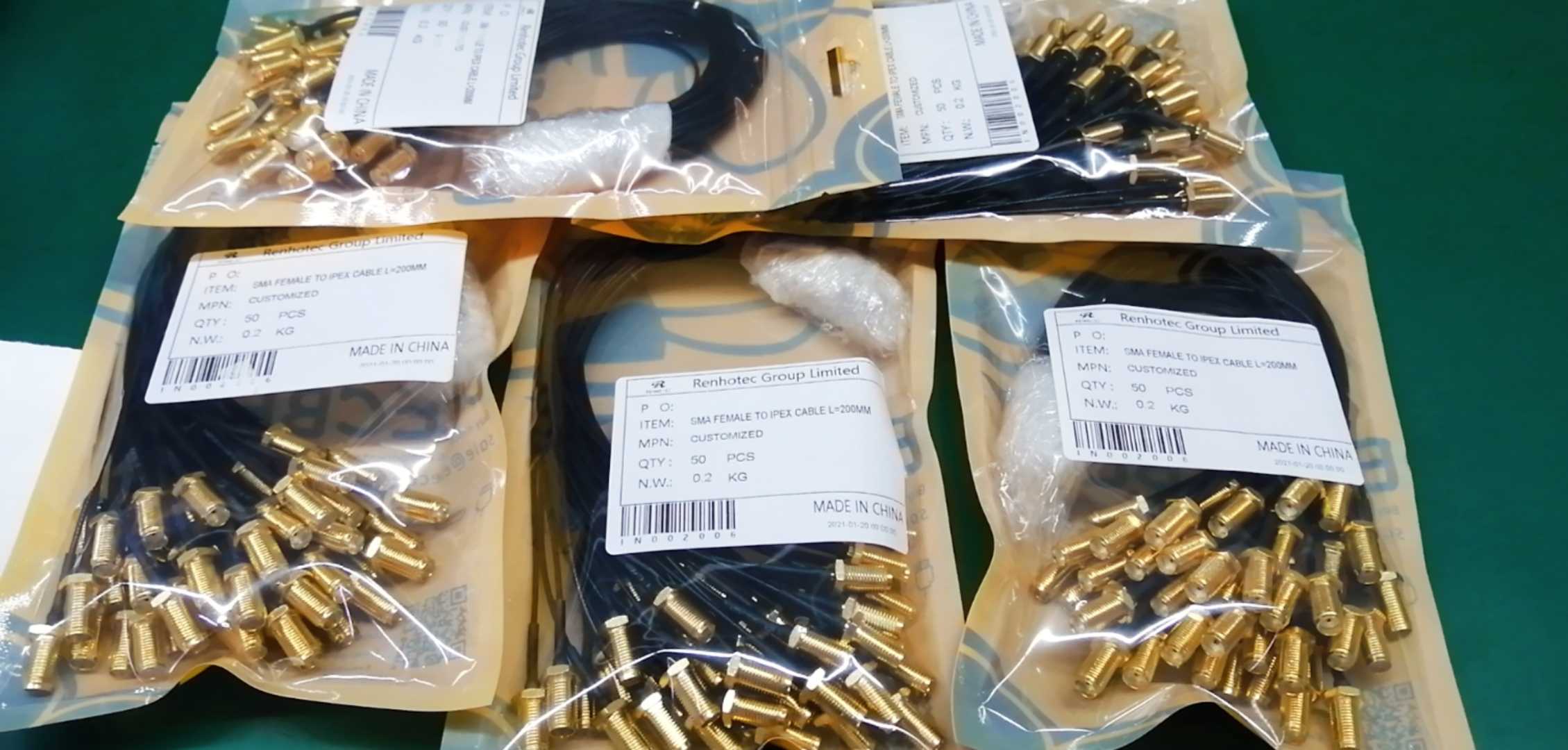

review-image
T****6
Worked perfectly for extending my existing cable line so I could relocate my WiFi router.

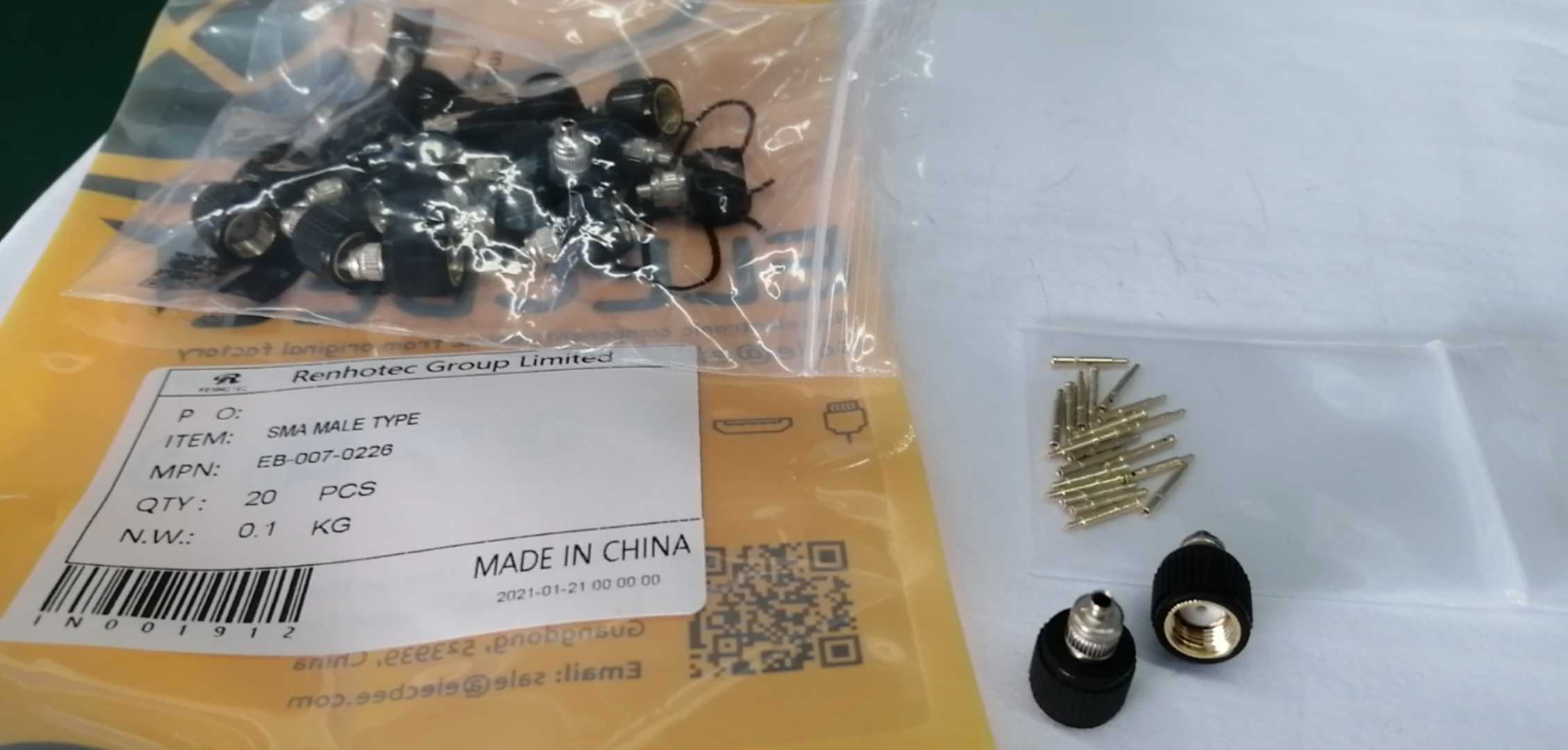

review-image
C****T
Perfect for my PCB RF project. The SMA jack has excellent signal integrity up to 6 GHz, and the gold-plated contacts ensure solid connectivity. Great value for the quality.
M****i
Solid build with a clean solder joint on the board. I appreciate the teflon insulator and brass body—makes a noticeable difference in performance at high frequencies.
P****r
Exactly as described—straight 180° mount fits perfectly on my design. Works flawlessly in my Wi-Fi module setup. Will definitely reorder.
D****h
Good connector for the price, but took a bit of care to solder without damaging the teflon insulator. Performance is solid once installed.
D****r
Impressed by the low VSWR and consistent 50Ω impedance. Used in a GPS tracking prototype and signal loss is minimal. Highly recommend.
