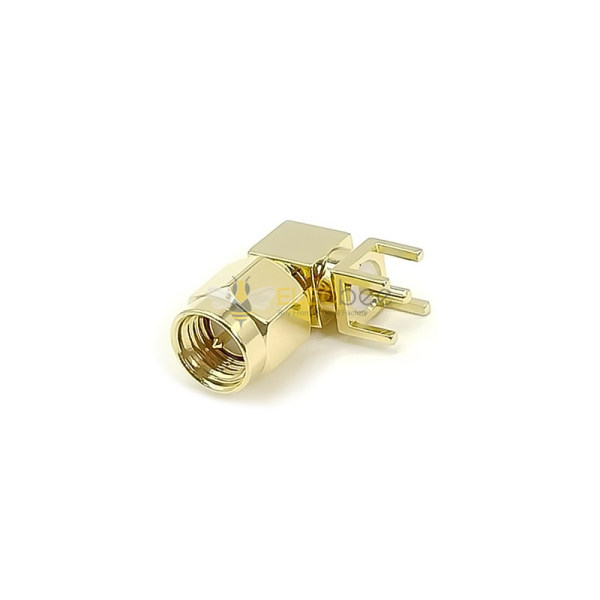

Elecbee RF Coaxial connector Standard SMA Plug Right Angle Solder Type for PCB mount

SKU: EB-007-0009
Favorites
Key Features
  • Thru Hole,Pcb Mount, plug/male, Angled/90°, 50Ω;
  • Excellent electrical performance up to 18GHz with low reflection;
  • Thread type coupling mechanism ensure small loss and high security in compact design;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Technology: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System


Show More
Attribute
Value
Connector Type
Male
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
26.5 GHz
Connector Series
SMA
Color
Yellow
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Phosphor Bronze
Contact Finish
Gold Plated
Insulating Materials
PTFE
Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
9%
4 stars
9%
5 stars
82%
J****y

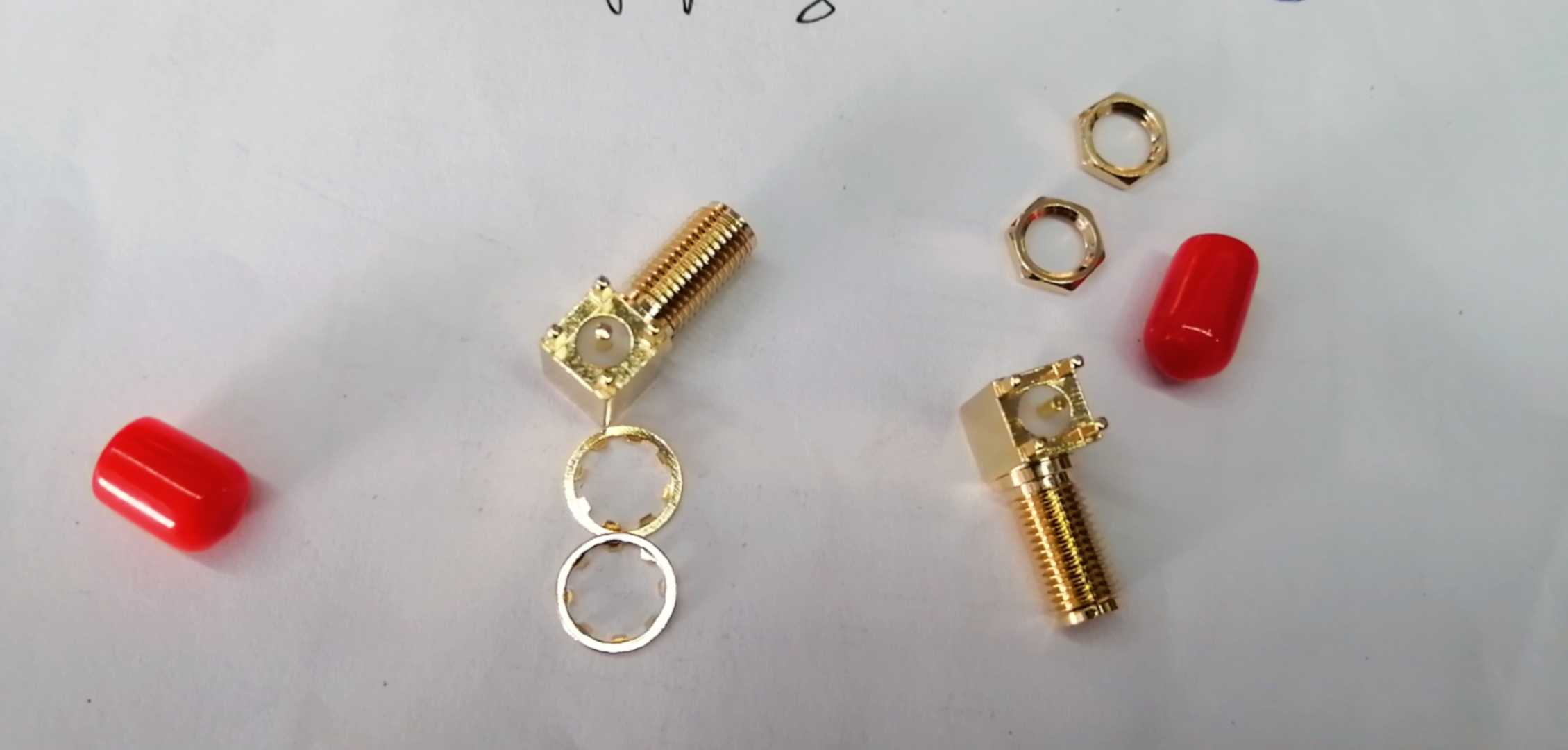

Connectors come with lock washers as well as nuts and grounding lugs. Remember when ordering that these must be mounted (and removed if ever needed) from the rear of the panel.

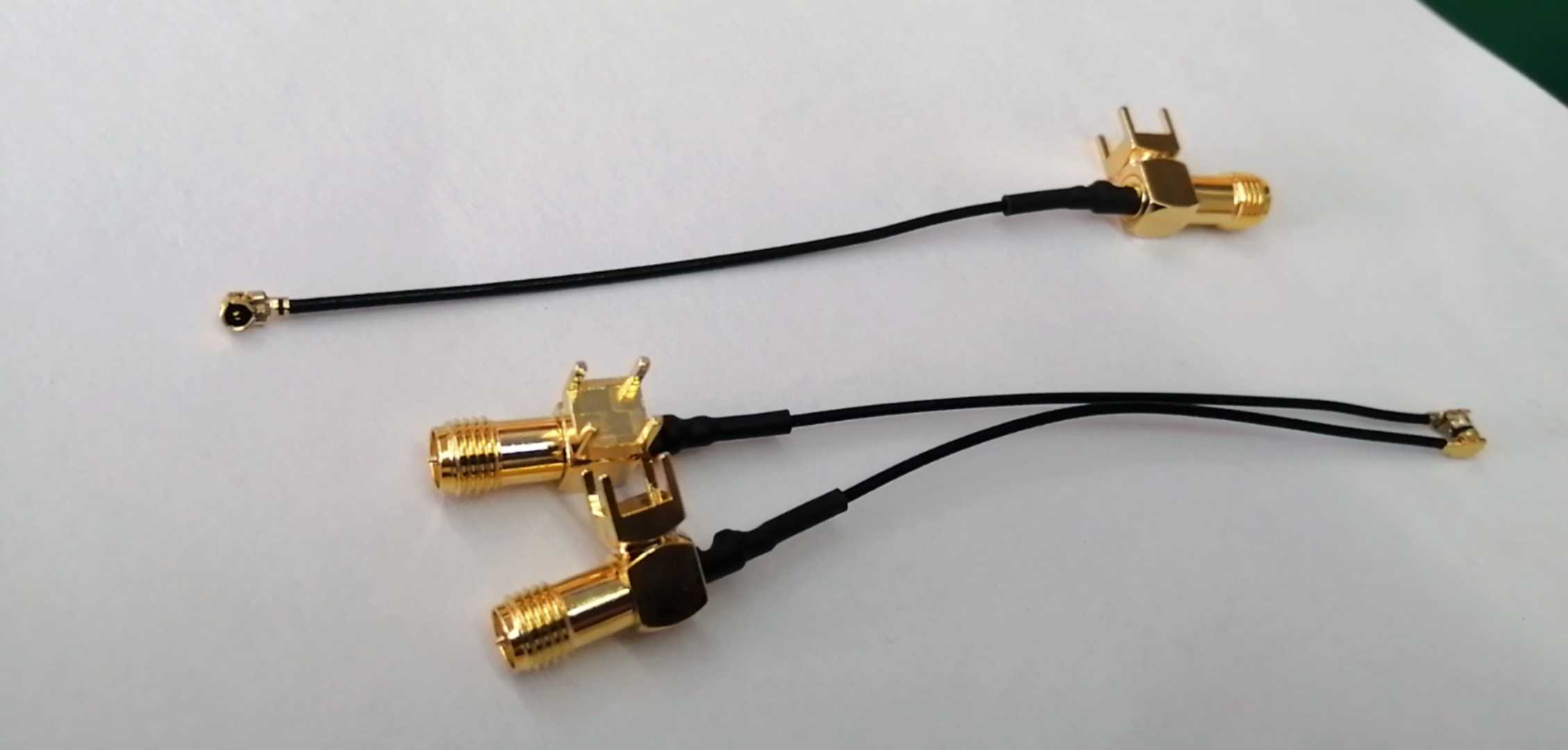

review-image
A****r
Works
review-image
A****k
Good connectors
review-image
m****o
quality adapter
review-image
S****r
Worked exactly as described what can you say about it
review-image
L****g
The workmanship is still very good, as a male connector, it is very convenient to plug in
O****e
Perfect for my PCB RF design. The right-angle SMA plug saves space and soldering was smooth. Works flawlessly up to 6 GHz as specified.
?*****
Great coaxial connector with solid build. Brass body and gold plating look premium. Soldered easily onto the board, good signal integrity so far.
M****d
Exactly what I needed for a compact GPS module. The 90° thru-hole mount fits perfectly on tight boards. Excellent value from the original factory.
M****i
Works well but took time to align during soldering. Good electrical performance, though I expected slightly easier handling for precision work.
T****k
Reliable connection in my WiMAX prototype. Low VSWR and durable coupling nut. Great alternative to pricier brands—same quality, better price!
