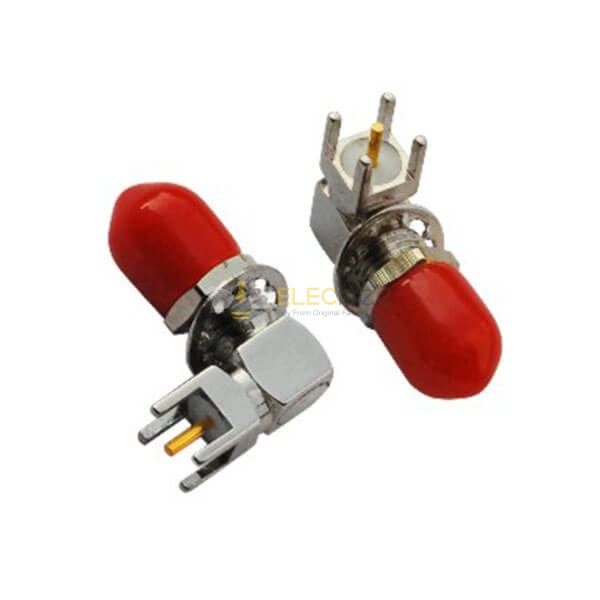

Elecbee RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount

SKU: EB-007-0010

Favorites

Key Features

Thru Hole,Pcb Mount, Jack/female, Angled/90°, 50Ω,Dustproof;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

13%

4 stars

5 stars

75%

B****y

the space the i have to access is limited, this connector makes it easy to get the sample required, no suffering trying to spin a regular connector

J****y

Works as advertised.

M****l

Worked great

O****h

Perfect for my GPS module on a tight PCB layout. The right-angle SMA jack saves space and the solder joint is solid. Works flawlessly up to 6 GHz as advertised.

J****u

Good quality for the price. Impedance stability is reliable, and the nickel-plated brass body feels durable. Only wish it had slightly longer leads for easier thru-hole mounting.

S****k

Used in a WiMAX prototype—excellent VSWR performance even at 5.8 GHz. The Teflon insulator and gold-plated pin make a noticeable difference in signal integrity.

N****o

Works as expected for 50Ω RF applications. Dustproof design helps in industrial setups. Took time to align during soldering due to the 90° angle, but acceptable for the size.

V****o

Great value compared to other brands. Came from the original factory and performed identically to more expensive connectors I've used before.
